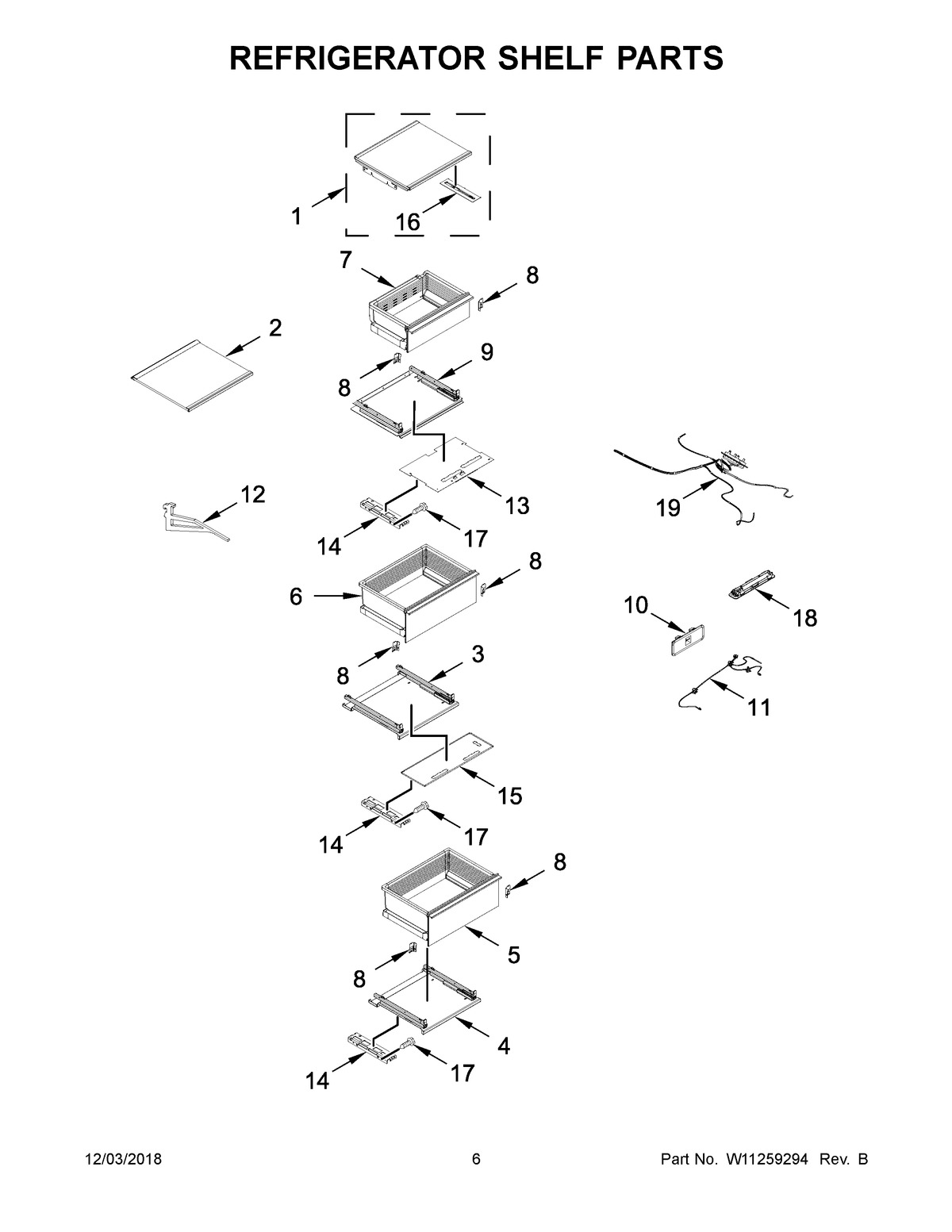

JBRFL30IGX00 04 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	ASSEMBLY, DELI SHELF
2	ASSEMBLY, SHELF
3	ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4	ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5	ASSEMBLY, BOTTOM CRISPER PAN
6	ASSEMBLY, MIDDLE CRISPER PAN
7	ASSEMBLY, DELI
8	CLIP, RETAINER (LEFT HAND)
8A	CLIP, RETAINER (RIGHT HAND)
9	ASSEMBLY, DELI SLIDE SUPPORT
10	HOUSING, CRISPER THERMISTOR
11	HARNESS, CRISPER LED (INCLUDES THERMISTOR)
12	SIDEARM, SHELF
13	PANEL, MULLION
14	BRACKET, SUPPORT
15	PLATE, CRISPER SUPPORT LED
16	THERMISTOR (INCLUDES COVER)
17	SCREW
18	ASSEMBY, LIGHT STRIP
19	HARNESS, MULLION
