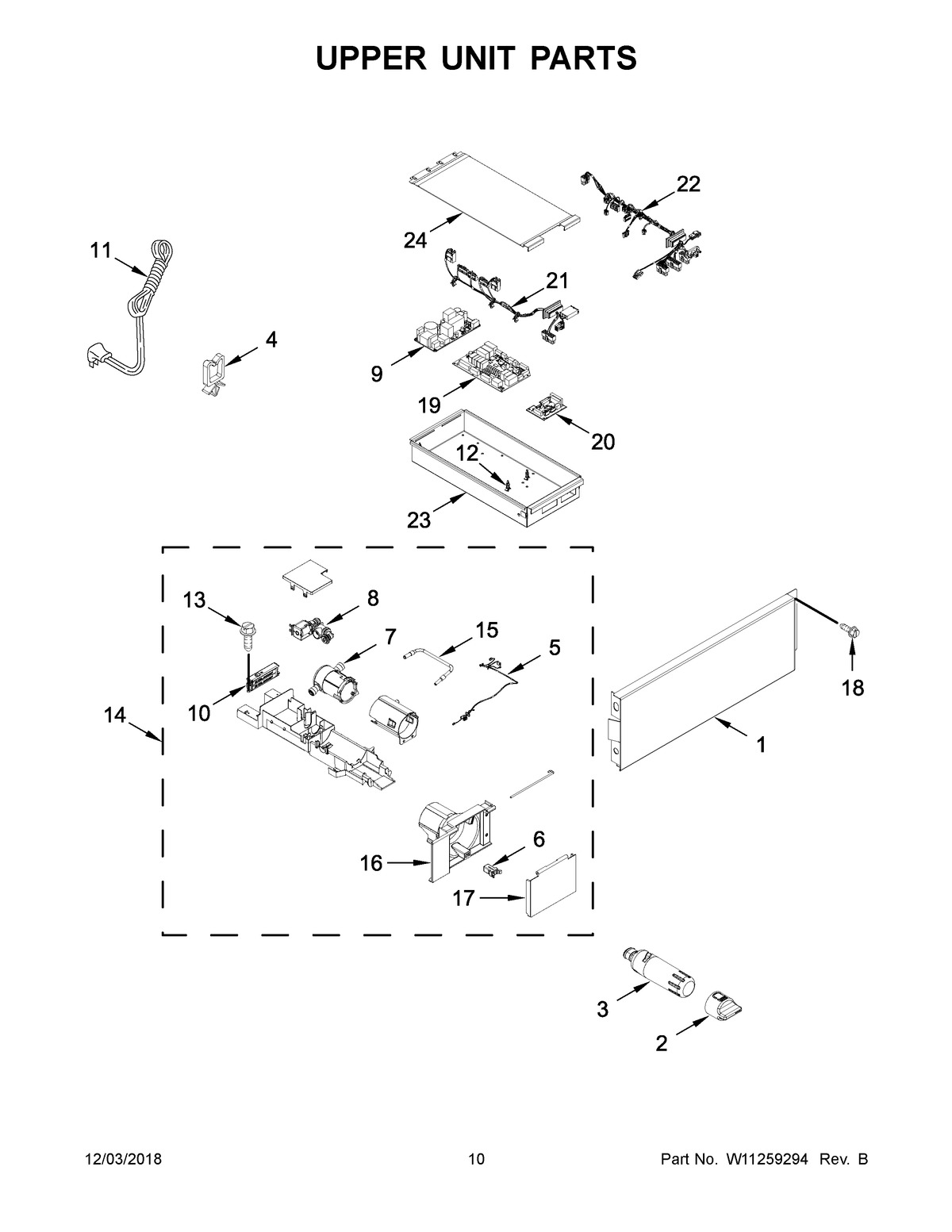

JBRFL30IGX00 06 – UPPER UNIT PARTS

Products

Position	Product
1	ASSEMBLY, COVER PLATE (CHARCOAL SPARKLE)
2	CAP, WATER FILTER (GREY)
3	FILTER, WATER
4	CLIP
5	HARNESS, VALVE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
6	LATCH, PUSH
7	HOUSING, WATER FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
8	VALVE, PILOT (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
9	SUPPLY, POWER
10	ASSEMBLY, WIFI MODULE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
11	CORD, POWER
12	Spacer (5)
13	SCREW
14	ASSEMBLY, FILTER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
15	TUBE, FILTER INLET
16	MOUNT, FILTER
17	COVER, FILTER MOUNT
18	SCREW
19	CONTROL, ELECTRONIC
20	CONTROL, ELECTRONIC (LED DRIVER)
21	HARNESS, HV
22	HARNESS, LV
23	TRAY , CONTROL BOARD MOUNTING
24	LID, COVER
