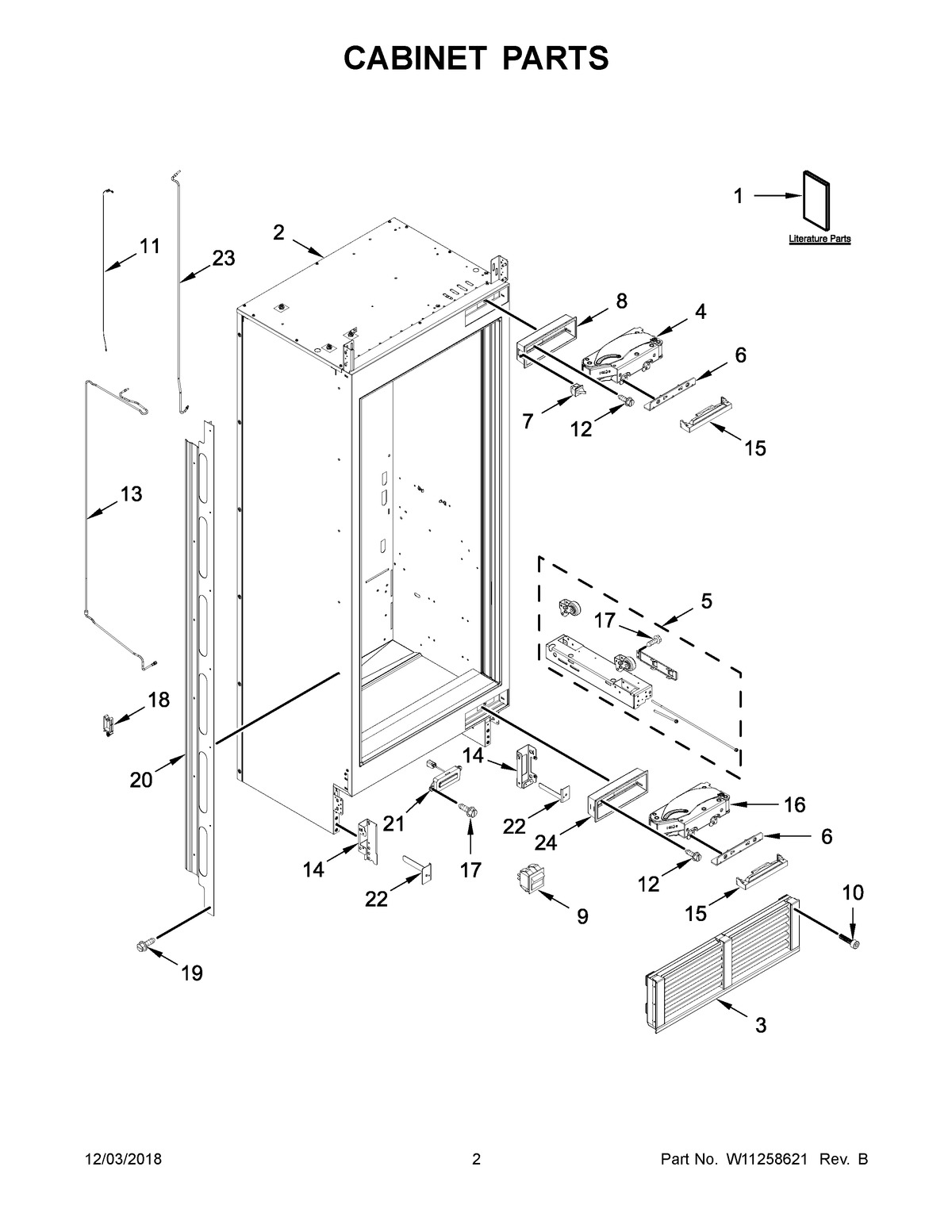

JBRFL36IGX00 02 – CABINET PARTS

Products

Position	Product
1D	TECH SHEET (FRENCH)
1A	ENERGY GUIDE
1C	TECH SHEET (ENGLISH)
1B	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
2	LINER (NOT A SERVICEABLE PART)
3	GRILLE (CHARCOAL SPARKLE)
4	HINGE, TOP (CHARCOAL SPARKLE)
5A	ASSEMBLY, ROLLER BASE (RIGHT HAND)
5	ASSEMBLY, ROLLER BASE (LEFT HAND)
6	BRACKET, HINGE ATTACH
7	SWITCH, LIGHT
8	TRIM, HINGE (CHARCOAL SPARKLE)
9	Switch, Power Disconnect
10	SCREW
11	HARNESS, ANTENNA
12	SCREW (BLACK)
13	TUBE, WATER (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
14	ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND)
14A	ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND)
15	COVER, HINGE BRACKET
16	HINGE, BOTTOM (CHARCOAL SPARKLE)
17	SCREW 8-32 X 1/2
18	CLIP, WIRE
19	MAY W10141645
20A	TRIM, SIDE (EBONY (NON-HINGE SIDE))
20	TRIM, SIDE (EBONY (LEFT HAND))
21	MODULE, WIFI
22A	ASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND)
22	ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND)
23	TUBE, FILTER OUTLET WATER
24	TRIM, HINGE (CHARCOAL SPARKLE)
