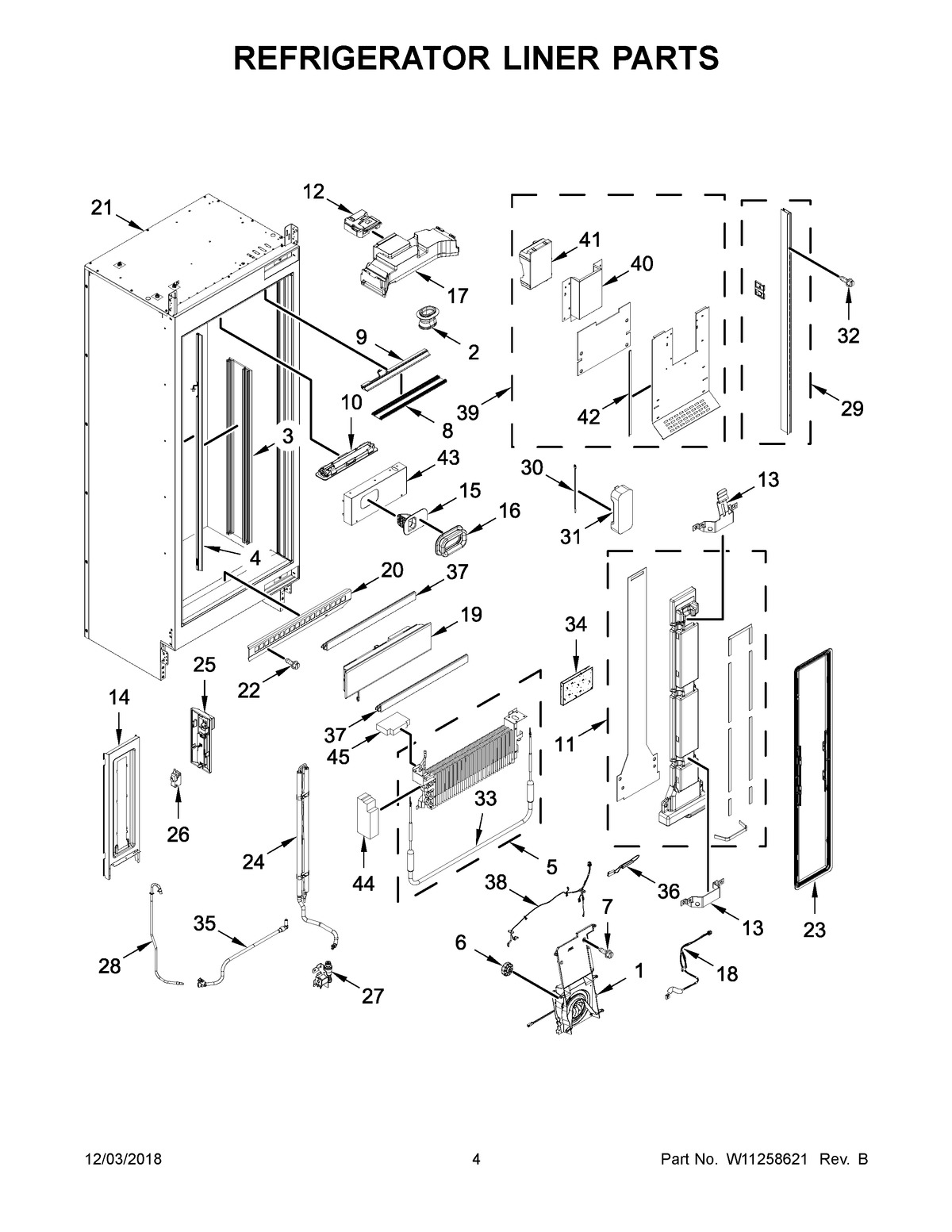

JBRFL36IGX00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	ASSEMBLY, FAN
2	MAY W10370680
3	COVER, LED SIDE
4A	ASSEMBLY, LED STRIP (RIGHT HAND)
4	ASSEMBLY, LED STRIP (LEFT HAND)
5	EVAPORATOR
6	GROMMET, MOTOR
7	SCREW (10)
8	COVER, LED TOP
9	STRIP, TOP LED
10	ASSEMBY, LIGHT STRIP
11	ASSEMBLY, AIR TOWER GASKET (INCLUDES AIR TOWER)
12	ASSEMBLY, DUCT DAMPER (INCLUDES HEATER)
13	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (UPPER)
13A	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
14	WALL, FALSE
15	DUCT, DELI
16	GASKET, DELI DUCT
17	ASSEMBLY, DUCT (INCLUDES DAMPER)
18	HARNESS, DAMPER
19	ASSEMBLY, USER INTERFACE
20	GRILLE, AIR RETURN
21	LINER (NOT A SERVICEABLE PART)
22	MAY 1157158
23	ASSEMBLY, AIR TOWER PANEL
24	RESERVOIR, WATER
25	ASSEMBLY, DISPENSER COVER
26	MAY 12575502
27	VALVE, SINGLE SOLENOID
28	TUBE, DISPENSER WATER
29A	LADDER, SHELF (INCLUDES SCREWGUIDE) (RIGHT HAND)
29	LADDER, SHELF (INCLUDES SCREWGUIDE) (LEFT HAND)
30	THERMISTOR
31	COVER, THERMISTOR
32	SCREW (BLACK)
33	HEATER, DEFROST
34	SEALER, INSULATION
35	TUBE, DISPENSER WATER (WATER VALVE)
36	ASSEMBLY, FUSE JUMPER WIRE
37A	CROSSBA
37	CROSSBAR, CONTROL (UPPER)
38	H
39	MAY W10876961
40	MAY W10895218
41	MAY W10780861
42	MAY W10895214
43	MAY W10816948
44	MAY W10881370
45	MAY W11216922
45A	MAY W11216921
