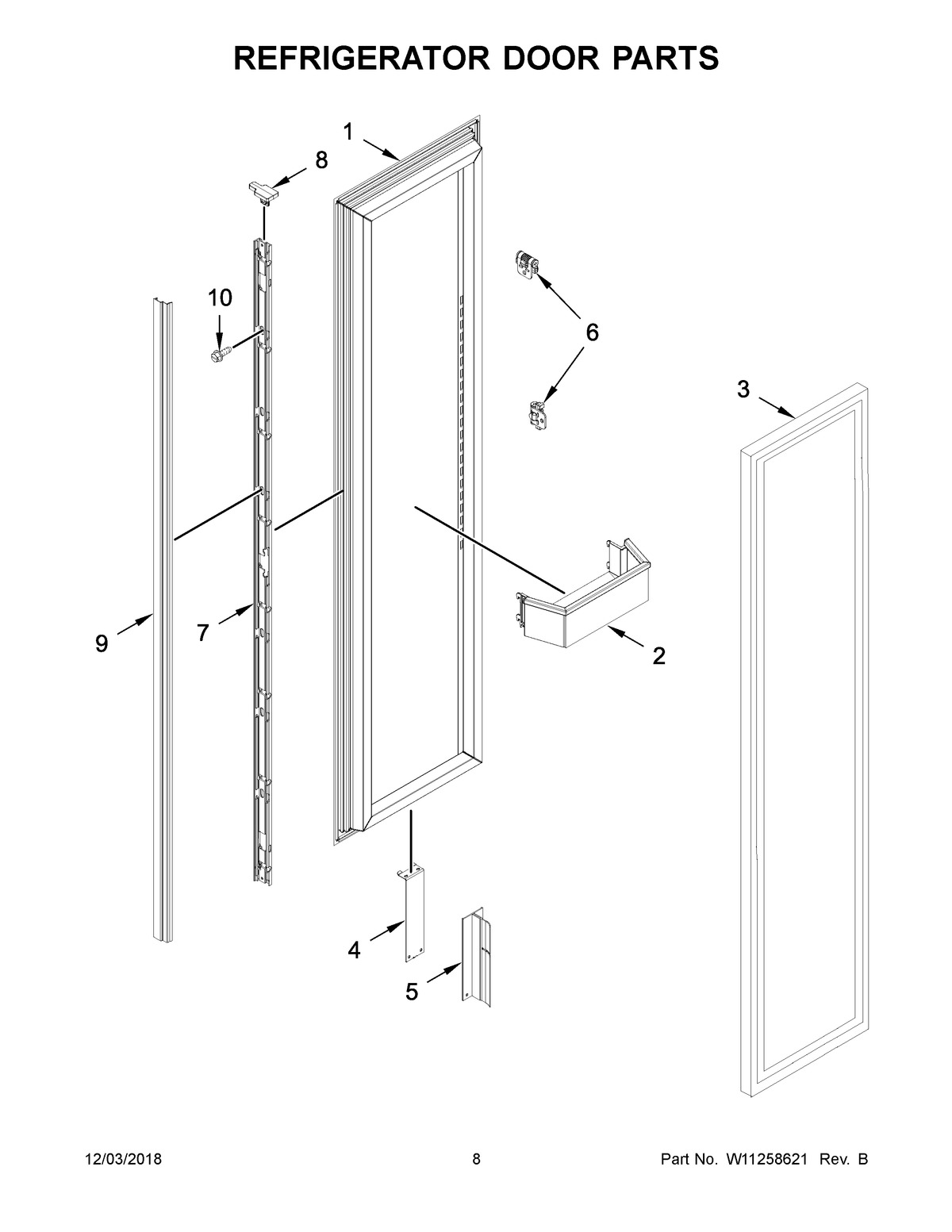

JBRFL36IGX00 05 – REFRIGERATOR DOOR PARTS

Written by

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	GAUGE, DOOR
1	DOOR, REFRIGERATOR
2	ASSEMBLY, DOOR BIN
3	GASKET, DOOR (BLACK)
4	BRACKET, AIR DIVIDER
5	DIVIDER, AIR
6A	ASSEMBLY, PANEL ADJUSTER (VERTICAL)
6	ASSEMBLY, PANEL ADJUSTER (HORIZONTAL)
7	BRACKET, PANEL ADJUST
8	CAP, PANEL ADJUST TRIM
9	TRIM, PANEL ADJUST
10	SCREW
