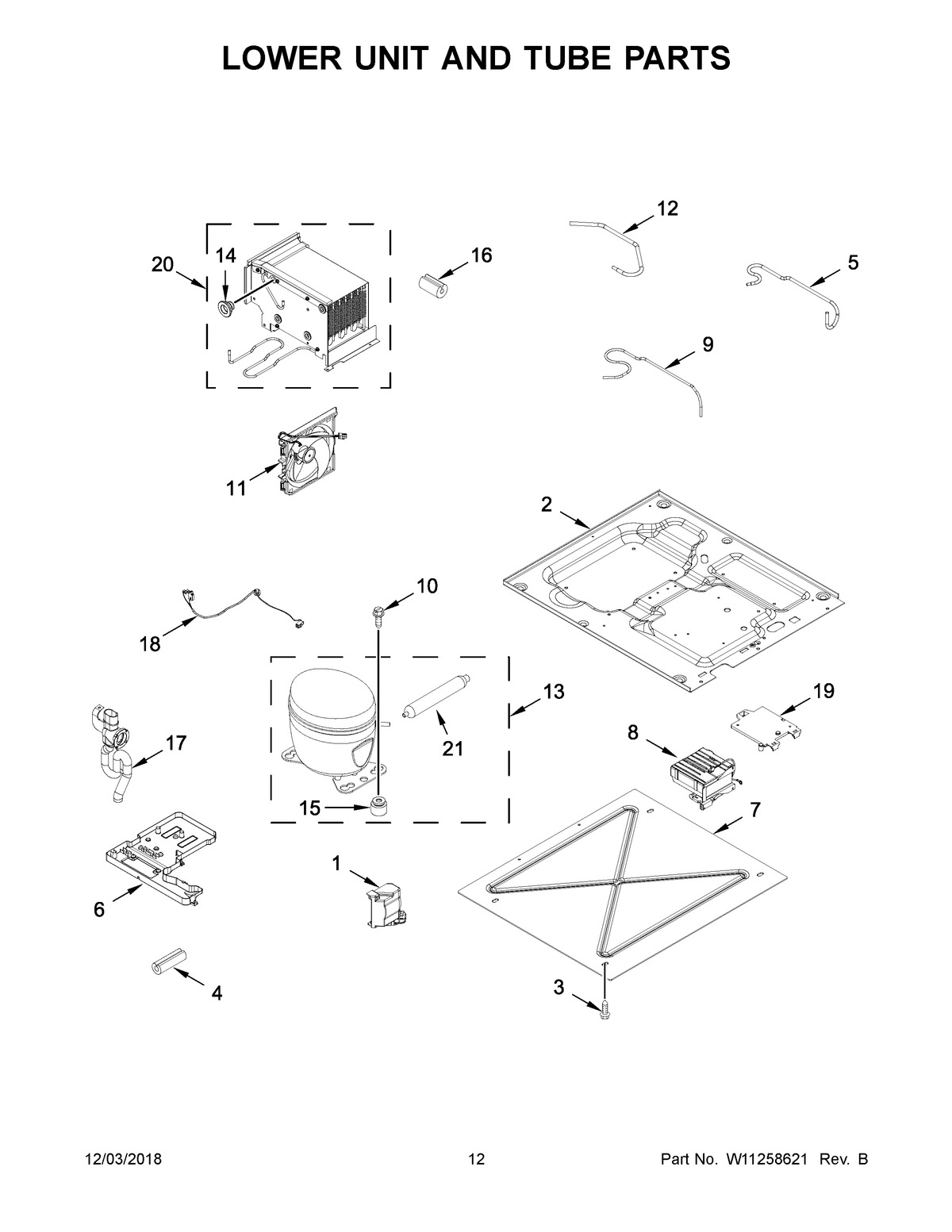

JBRFL36IGX00 07 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	LINER (NOT A SERVICEABLE PART)
1	ASSEMBLY, COMPRESSOR COVER
2	PAN, BASE
3	SCREW 8-32 X 1/2
4	GROMMET, EVAPORATOR TRAY
5	TUBE, SUCTION
6	TRAY, EVAPORATOR DRAIN
7	PLATE, BOTTOM
8	ASSEMBLY, INVERTER BOX
9	TUBE, DISCHARGE
10	MAY 489473
11	ASSEMBLY, CONDENSER FAN SHROUD
12	TUBE, PROCESS
13	MAY W11328338
14	MAY W10587113
15	MAY 2183042
16	GROMMET, CONDENSER
17	ASSEMBLY, DRAIN TUBE
18	HARNESS, COMPRESSOR
19	BRACKET, INVERTER MOUNTING
20	CONDENSER (INCLUDES DRAIN PAN HEATER)
21	DRIER
