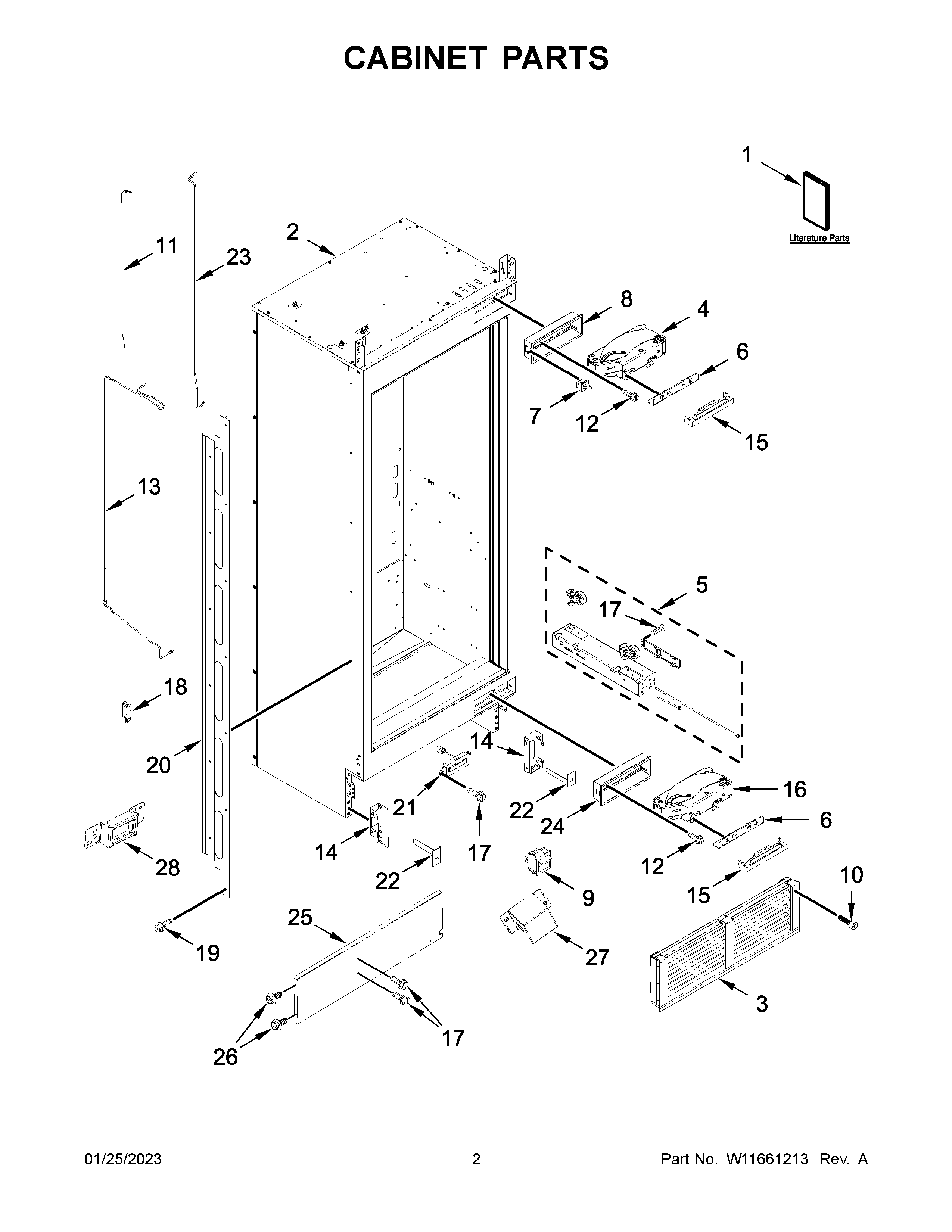

JBRFL36IGX10 02 – CABINET PARTS

Products

PositionProduct
1CTECH SHEET
1USE AND CARE GUIDE
1AENERGY GUIDE
1BINSTALLATION INSTRUCTIONS
2CABINET (NOT A SERVICEABLE PART)
3W11247668 Whirlpool Refrigerator Front Grille
4W11233362 Whirlpool Door Hinge
5AW11233364 Whirlpool Refrigerator Support
5W11233365 Whirlpool Refrigerator Support
6BRACKET, HINGE ATTACH
7W11642199 Whirlpool Switch
8TRIM, HINGE (CHARCOAL SPARKLE)
9SWITCH, POWER DISCONNECT
10W11247538 Whirlpool Screw
11W10897083 Whirlpool Refrigerator Wire Harness
12W10678210 Whirlpool Screw
13W11233369 Whirlpool Refrigerator Water Tube
14ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND)
14AASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND)
15W11235093 Whirlpool Refrigerator Cover
16W11233372 Whirlpool Refrigerator Door Hinge
17WPW10141625 Whirlpool Refrigerator Screw Assembly
18CLIP, WIRE
19SCREW
20W11233378 Whirlpool Trim Assembly
20ATRIM, CABINET SIDE (EBONY (LEFT HAND))
21W11234285 Whirlpool Electronic Control Board
22W10848725 Whirlpool Front Grille
22AW10848724 Whirlpool Front Grille
23W11247672 Whirlpool Refrigerator Water Tube
24TRIM, HINGE (CHARCOAL SPARKLE)
25PANEL, MC REAR
26WP489069 Whirlpool Compactor Screw
27COVER, POWER SWITCH
28COVER, SAFETY SWITCH
