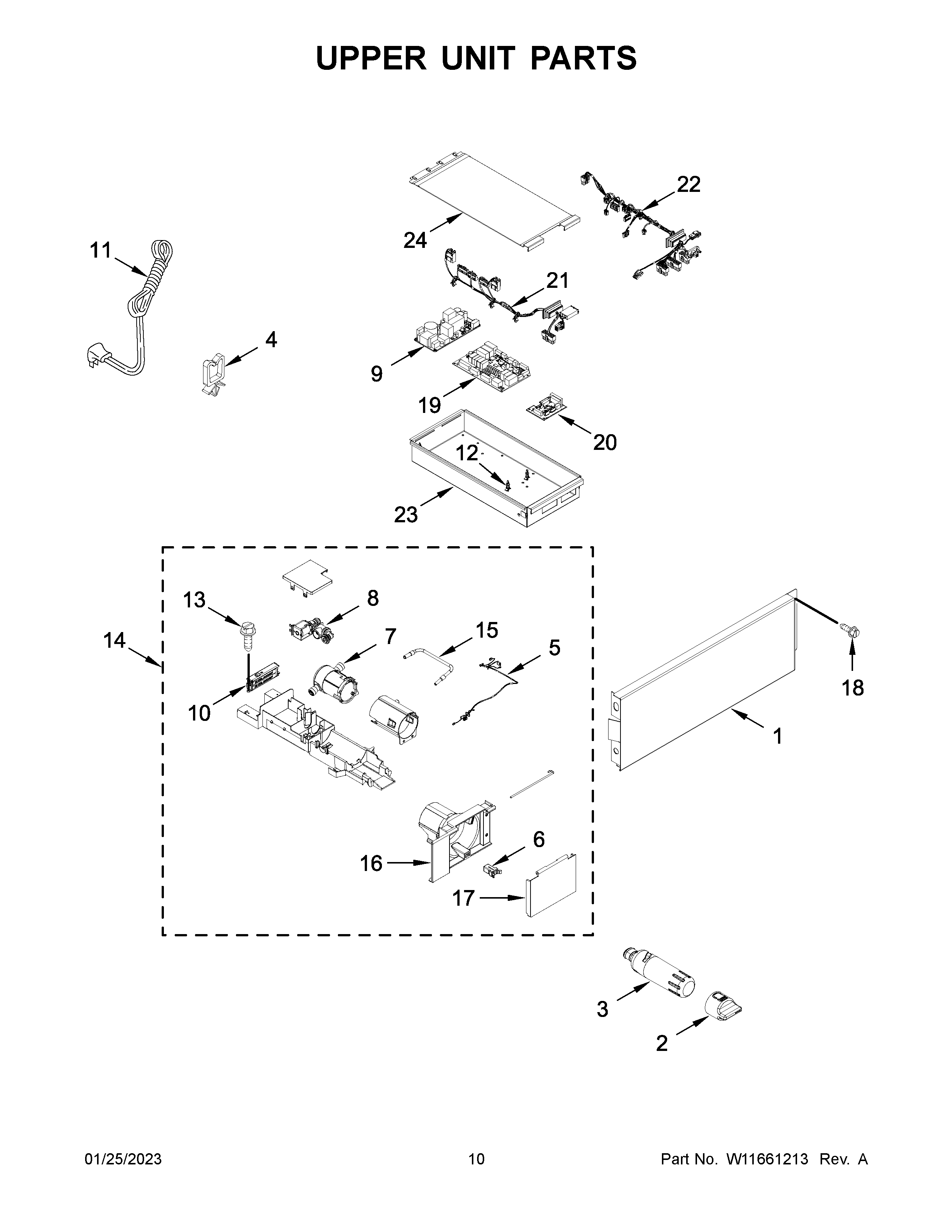

JBRFL36IGX10 06 – UPPER UNIT PARTS

JBRFL36IGX10 06 – UPPER UNIT PARTS

Written by

in

JBRFL36IGX10 06 – UPPER UNIT PARTS

Products

PositionProduct
1W11248060 Whirlpool Refrigerator Cover
2W11679634 Whirlpool Filter Cap
3EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
4CLIP
5HARNESS, VALVE (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
6W11299812 Whirlpool Refrigerator Latch
7W11194438 Whirlpool Water Filter Housing
8VALVE, PILOT (ALSO ORDER 2300868 – 5/16" WATER CONNECTOR)
9WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
10W11234290 Whirlpool Electronic Control Board
11W11380825 Whirlpool Refrigerator Power Cord
12WP2203075 Whirlpool Refrigerator Spacer
13SCREW
14W11248063 Whirlpool Mounting Kit
15W11233371 Whirlpool Water Tube
16W11247540 Whirlpool Refrigerator Housing
17W11247543 Whirlpool Refrigerator Filter Cover
18W11247538 Whirlpool Screw
19W11645576 Whirlpool Electronic Control Board + Core
20W11233638-includeCORE Whirlpool W11233638 Refrigerator Electronic Control Board + Core
21HARNESS, HV
22HARNESS, LV
23W11302064 Whirlpool Tray Mount
24LID, COVER
