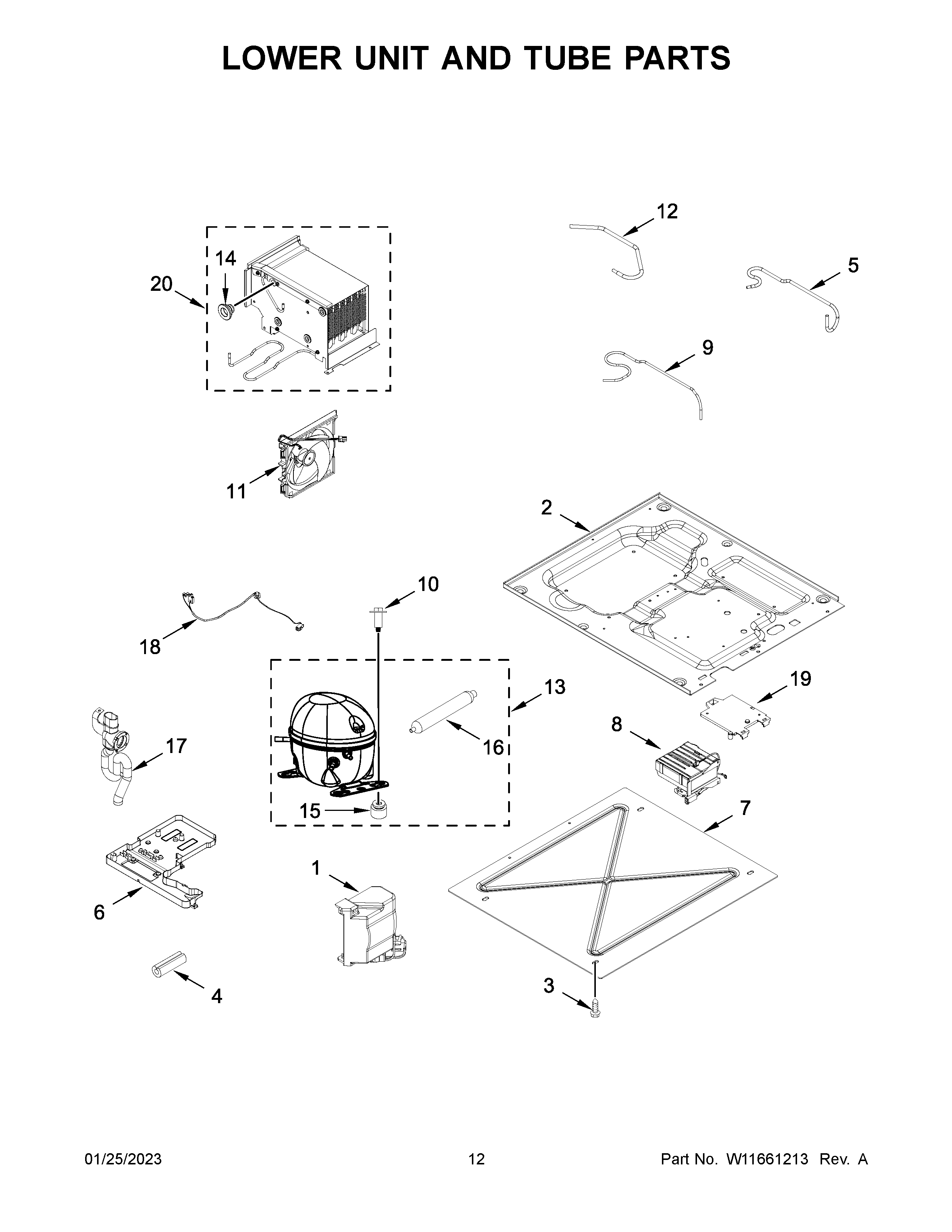

JBRFL36IGX10 07 – LOWER UNIT AND TUBE PARTS

JBRFL36IGX10 07 – LOWER UNIT AND TUBE PARTS

Written by

in

JBRFL36IGX10 07 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
1W11247667 Whirlpool Refrigerator Cover
2PAN, BASE
3WPW10141625 Whirlpool Refrigerator Screw Assembly
4GROMMET, EVAPORATOR TRAY
5TUBE, SUCTION
6TRAY, EVAPORATOR DRAIN
7PLATE, BOTTOM
8W11642201 Whirlpool Inverter Box
9TUBE, DISCHARGE
10SCREW
11W11233637 Whirlpool Fan
12TUBE, PROCESS
13BW11504421 Whirlpool Refrigerator Coupler
13CW11504416 Whirlpool Refrigerator Coupler
13W11557671 Whirlpool Refrigerator Compressor
13AW11504415 Whirlpool Refrigerator Coupler
14GROMMET
15W11661108 Whirlpool Grommet
16W11109499 Whirlpool Refrigerator Tube
16BW11504447 Whirlpool Refrigerator Coupler
17ASSEMBLY, DRAIN TUBE
18HARNESS, COMPRESSOR
19BRACKET, INVERTER MOUNTING
20BW11506623 Whirlpool Refrigerator Coupler
20AW11504445 Whirlpool Refrigerator Coupler
20W11233634 Whirlpool Condenser
