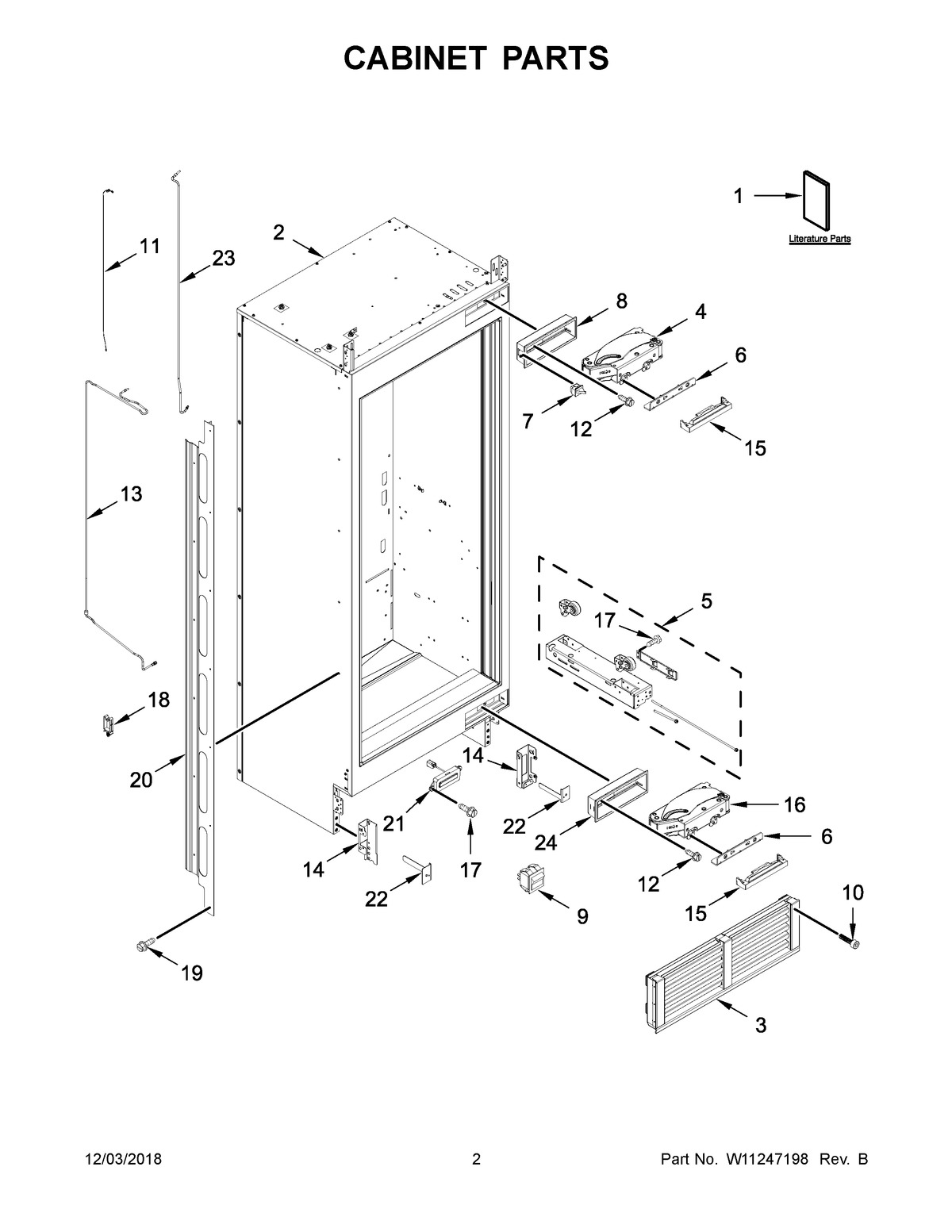

JBRFR36IGX00 02 – CABINET PARTSadmin2025-04-26T09:16:09+00:00JBRFR36IGX00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1A | ENERGY GUIDE |
| 1D | TECH SHEET (FRENCH) |
| 1C | TECH SHEET (ENGLISH) |
| 1B | INSTALLATION INSTRUCTIONS |
| 1 | USE AND CARE GUIDE |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | GRILLE (CHARCOAL SPARKLE) |
| 4 | HINGE, TOP (CHARCOAL SPARKLE) |
| 5A | ASSEMBLY, ROLLER BASE (RIGHT HAND) |
| 5 | ASSEMBLY, ROLLER BASE (LEFT HAND) |
| 6 | BRACKET, HINGE ATTACH |
| 7 | SWITCH, LIGHT |
| 8 | TRIM, HINGE (CHARCOAL SPARKLE) |
| 9 | Switch, Power Disconnect |
| 10 | SCREW |
| 11 | HARNESS, ANTENNA |
| 12 | SCREW (BLACK) |
| 13 | TUBE, WATER (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR) |
| 14 | ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (LEFT HAND) |
| 14A | ASSEMBY, GRILLE MOUNT (INCLUDES NUT) (RIGHT HAND) |
| 15 | COVER, HINGE BRACKET |
| 16 | HINGE, BOTTOM (CHARCOAL SPARKLE) |
| 17 | SCREW 8-32 X 1/2 |
| 18 | CLIP, WIRE |
| 19 | MAY W10141645 |
| 20A | TRIM, CABINET SIDE (EBONY (RIGHT HAND)) |
| 20 | TRIM, SIDE (EBONY (NON-HINGE SIDE)) |
| 21 | MODULE, WIFI |
| 22A | ASSEMBLY, ADJUSTABLE TOEKICK (RIGHT HAND) |
| 22 | ASSEMBLY, ADJUSTABLE TOEKICK (LEFT HAND) |
| 23 | TUBE, FILTER OUTLET WATER |
| 24 | TRIM, HINGE (CHARCOAL SPARKLE) |
