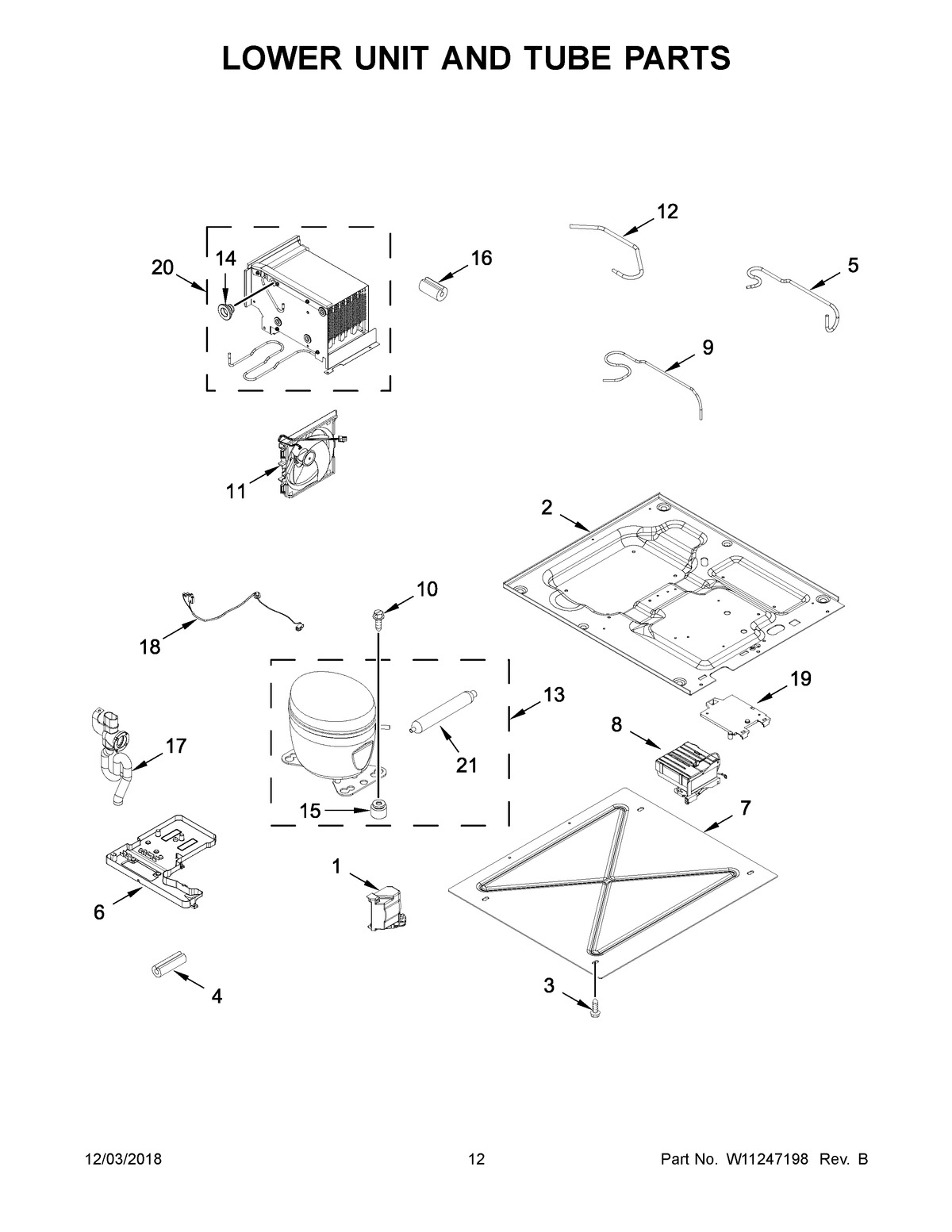

JBRFR36IGX00 07 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
NIMAY 876764
NIValve, Access (5/16“)
NILINER (NOT A SERVICEABLE PART)
1ASSEMBLY, COMPRESSOR COVER
2PAN, BASE
3SCREW 8-32 X 1/2
4GROMMET, EVAPORATOR TRAY
5TUBE, SUCTION
6TRAY, EVAPORATOR DRAIN
7PLATE, BOTTOM
8ASSEMBLY, INVERTER BOX
9TUBE, DISCHARGE
10MAY 489473
11ASSEMBLY, CONDENSER FAN SHROUD
12TUBE, PROCESS
13MAY W11328338
14MAY W10587113
15MAY 2183042
16GROMMET, CONDENSER
17ASSEMBLY, DRAIN TUBE
18HARNESS, COMPRESSOR
19BRACKET, INVERTER MOUNTING
20CONDENSER (INCLUDES DRAIN PAN HEATER)
21DRIER
