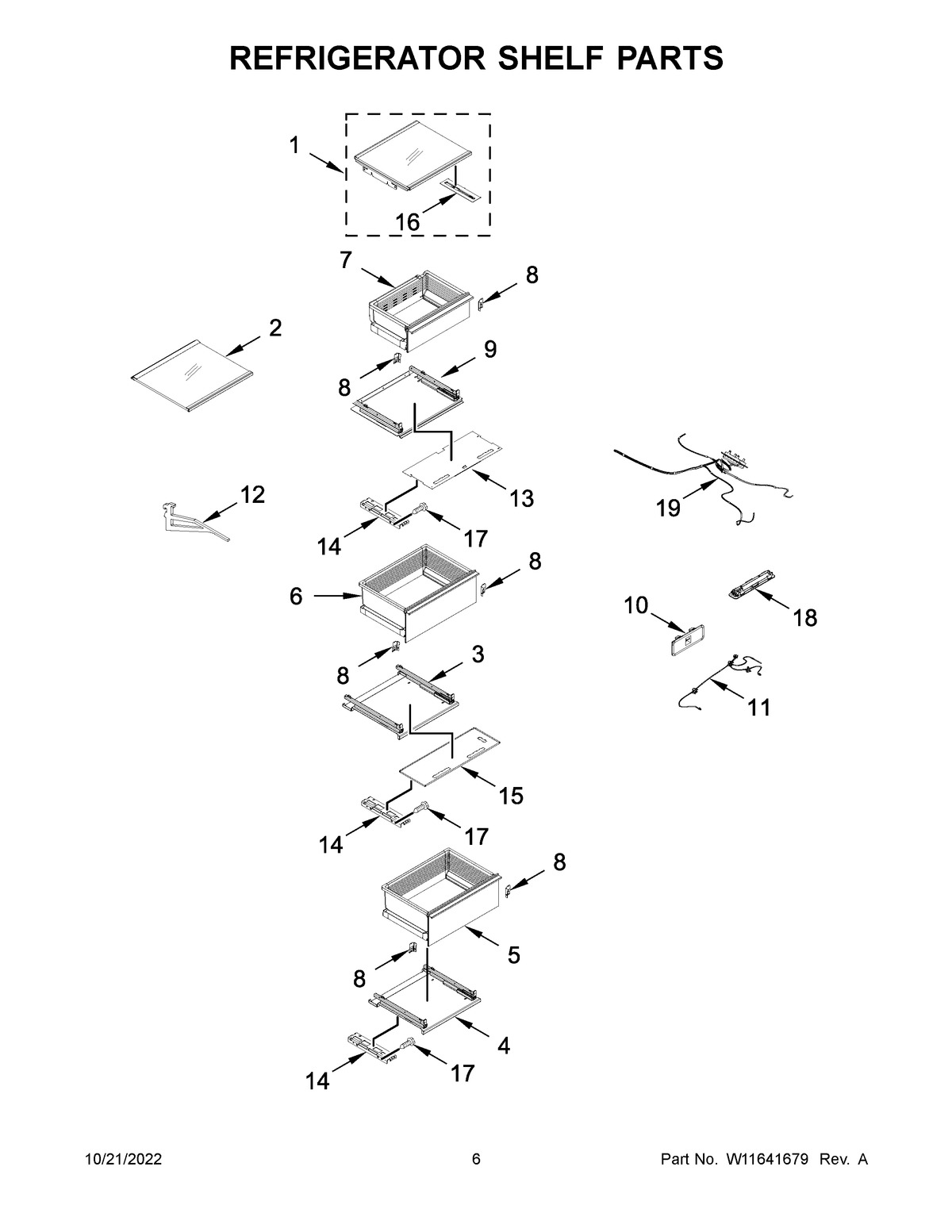

JBRFR36IGX10 04 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1W11247962 Whirlpool Glass Shelf
2ASSEMBLY, SHELF
3ASSEMBLY, UPPER CRISPER SLIDE SUPPORT
4ASSEMBLY, LOWER CRISPER SLIDE SUPPORT
5ASSEMBLY, BOTTOM CRISPER PAN
6ASSEMBLY, TOP CRISPER PAN
7ASSEMBLY, DELI
8ACLIP, RETAINER (RIGHT HAND)
8CLIP, RETAINER (LEFT HAND)
9ASSEMBLY, DELI SLIDE SUPPORT
10W11234857 Whirlpool Housing
11W11234859 Whirlpool Refrigerator Wire Harness
12W11690161 Whirlpool Support
13PANEL, MULLION
14BRACKET, SUPPORT
15PLATE, CRISPER SUPPORT LED
16THERMISTOR (INCLUDES COVER)
17W11247538 Whirlpool Screw
18MODULE
19HARNESS, MULLION
