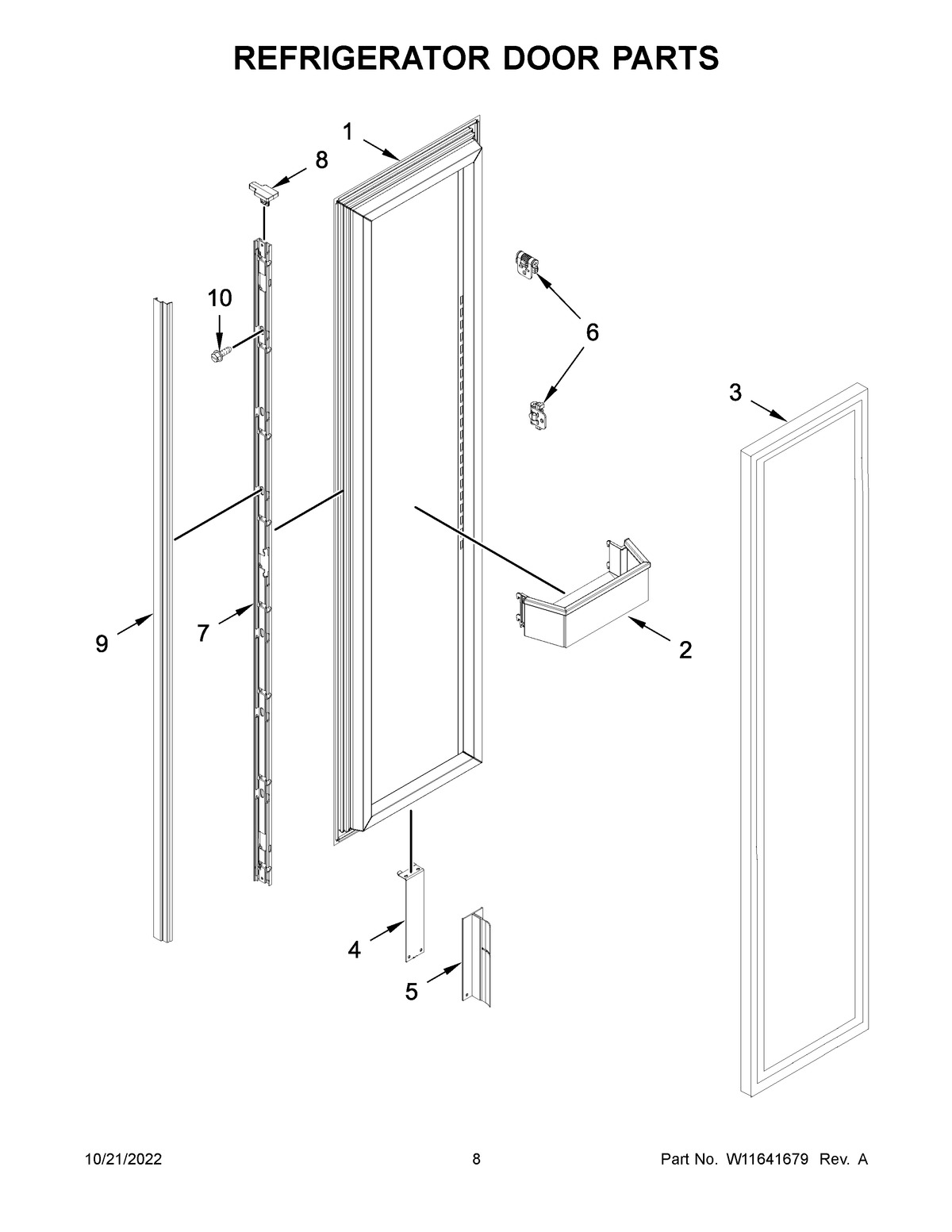

JBRFR36IGX10 05 – REFRIGERATOR DOOR PARTS

JBRFR36IGX10 05 – REFRIGERATOR DOOR PARTS

Written by

in

JBRFR36IGX10 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11234308 Whirlpool Spacer
1DOOR, REFRIGERATOR
2W11248036 Whirlpool Refrigerator Cantilever Bin
3W11038433 Whirlpool Refrigerator FIP Gasket
4W11235096 Whirlpool Refrigerator Bracket
5W11233377 Whirlpool Refrigerator Divider
6AW11235098 Whirlpool Refrigerator Adapter
6W11235097 Whirlpool Adapter
7W11302040 Whirlpool Refrigerator Bracket
8W11302061 Whirlpool Refrigerator Trim
9W11299811 Whirlpool Refrigerator Door Trim
10W11302041 Whirlpool Refrigerator Screw
