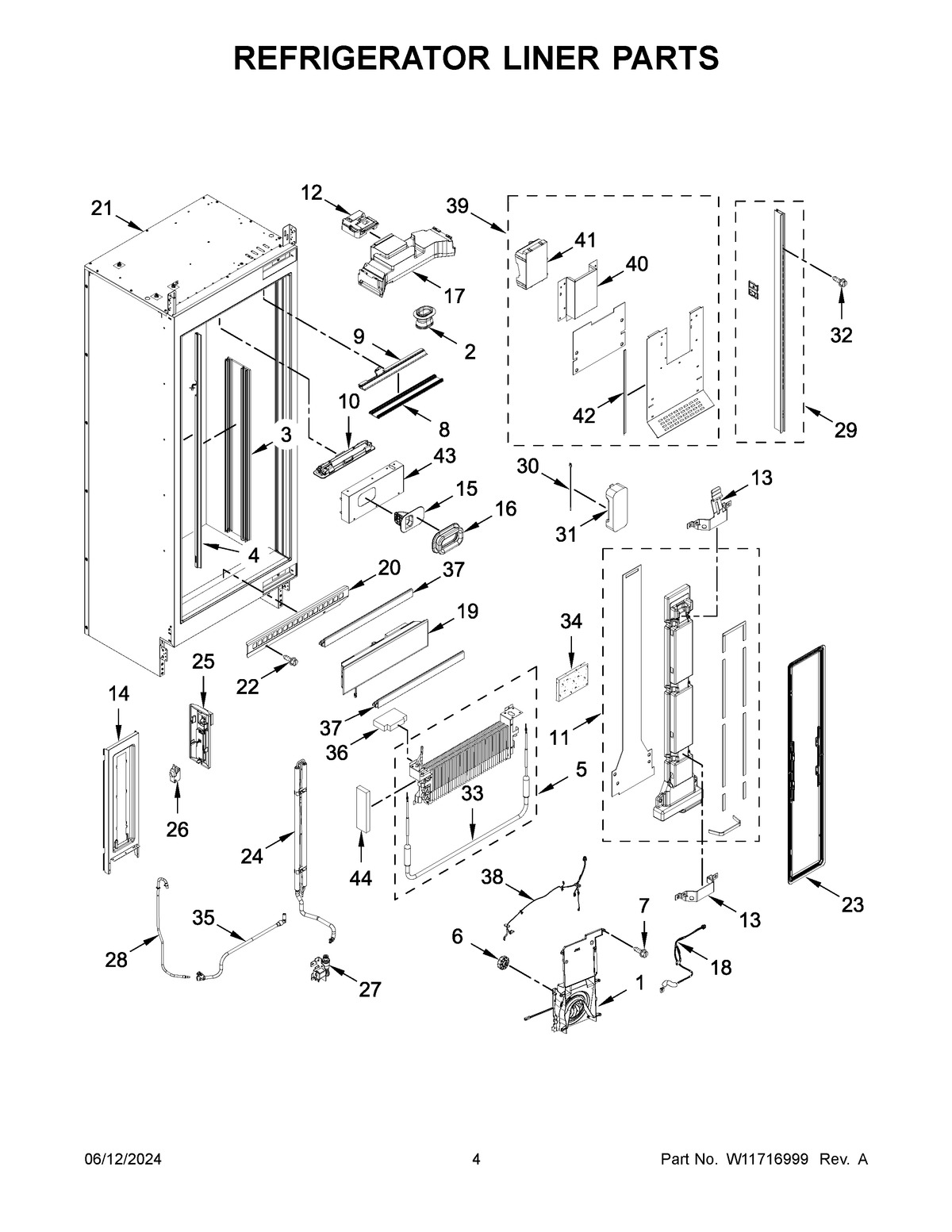

JBRFSR30RX00 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	W11233380 Whirlpool Fan Assembly
2	W10370680 Whirlpool Refrigerator Fitting
3	COVER, LED SIDE
4	W11233381 Whirlpool Module
4A	W11233382 Whirlpool Module
5	ASSEMBLY, EVAPORATOR AND HEATER (ALSO ORDER THE FOLLOWING LOKRING PARTS)
5A	W11504451 Whirlpool Coupler
5B	COUPLER
6	W10225833 Whirlpool Grommet
7	67006425 Whirlpool Refrigerator Screw
8	COVER, LED TOP
9	STRIP, TOP LED
10	MODULE
11	W11235114 Whirlpool Gasket
12	W11235115 Whirlpool Refrigerator Damper
13	W11036131 Whirlpool Bracket
13A	ASSEMBLY, AIR TOWER BRACKET (INCLUDES RUBBER RIVETS, WASHERS AND SCREWS) (LOWER)
14	WALL, FALSE
15	DUCT, DELI
16	W11235118 Whirlpool Gasket Assembly
17	ASSEMBLY, DUCT
18	W11247700 Whirlpool Wire Harness Assembly
19	W11404241 Whirlpool Refrigerator UI Panel + Core
20	GRILLE, AIR RETURN
21	LINER (NOT A SERVICEABLE PART)
22	WP489069 Whirlpool Compactor Screw
23	ASSEMBLY, AIR TOWER PANEL
24	W11603843 Whirlpool Refrigerator Water Reservoir
25	W11247958 Whirlpool Cover Assembly
26	WP12575502 Whirlpool Refrigerator Switch
27	W11247961 Whirlpool Refrigerator Valve
28	W11248065 Whirlpool Water Tube
29	LADDER, SHELF (INCLUDES SCREW GUIDE) (LEFT HAND)
29A	LADDER, SHELF (INCLUDES SCREW GUIDE) (RIGHT HAND)
30	W11234826 Whirlpool Refrigerator Thermistor
31	W11235125 Whirlpool Cover
32	WPL W11288606
33	WPL W11312289
34	W11553819 Whirlpool Refrigerator Insulation
35	TUBE-WATER
36	WPL W11216536
36A	WPL W11216535
37A	WPL W10887669
37	WPL W10816925
38	W11642297 Whirlpool Wire Harness
39	WPL W11441795
40	WPL W10895218
41	WPL W10780861
42	WPL W10895214
43	WPL W10816946
44	WPL W10876968
44A	WPL W10876969
