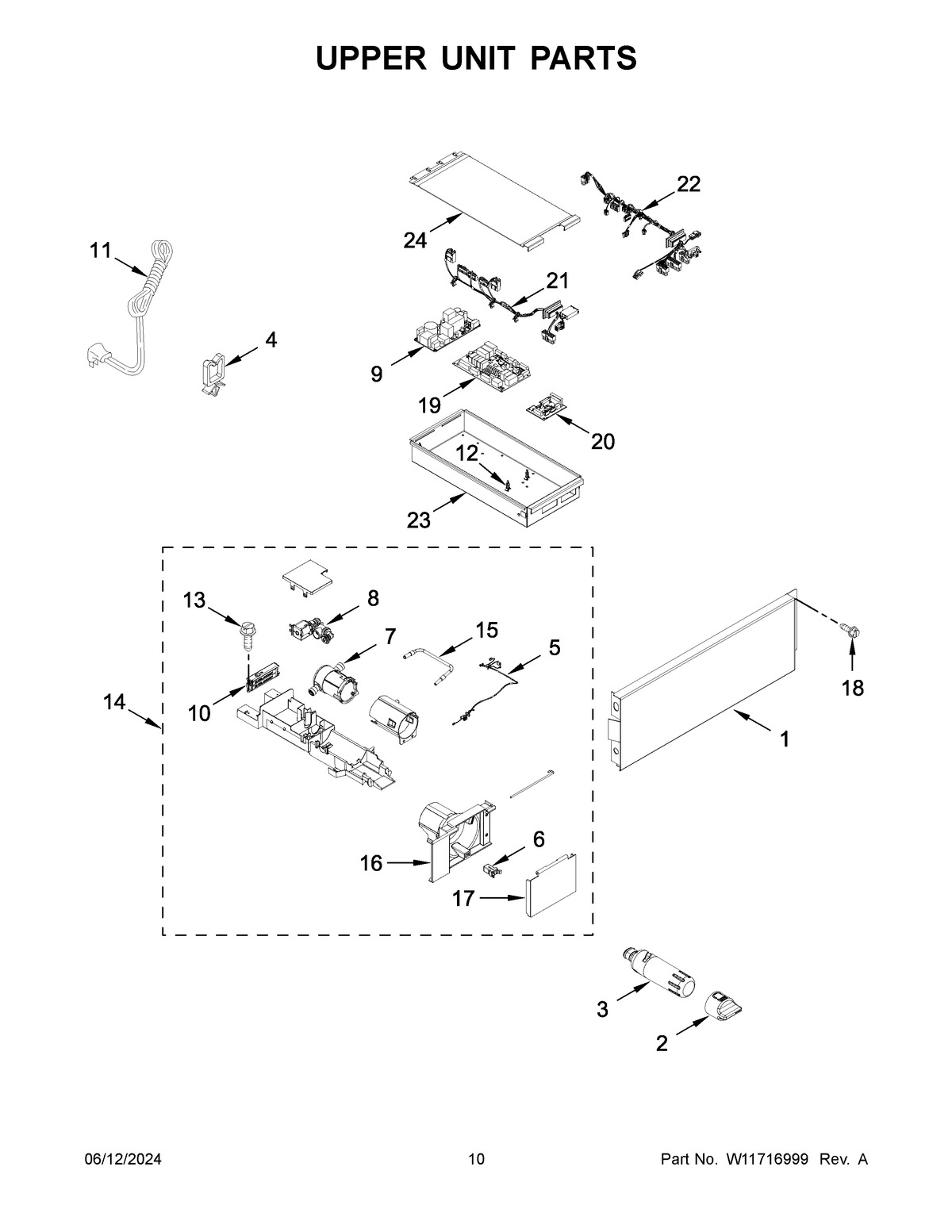

JBRFSR30RX00 06 – UPPER UNIT PARTS

Products

Position	Product
1	W11234861 Whirlpool Refrigerator Cover
2	W11679634 Whirlpool Filter Cap
3	EDR2RXD1 Whirlpool Everydrop® Water Filter 2 Refrigerator
4	CLIP
5	HARNESS, VALVE (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR)
6	W11299812 Whirlpool Refrigerator Latch
7	W11194438 Whirlpool Water Filter Housing
8	VALVE, PILOT (ALSO ORDER 2300868 - 5/16" WATER CONNECTOR)
9	WPW10624574-includeCORE Whirlpool WPW10624574 Refrigerator Electronic Control Board + Core
10	W11234290 Whirlpool Electronic Control Board
11	W11380825 Whirlpool Refrigerator Power Cord
12	WP2203075 Whirlpool Refrigerator Spacer
13	SCREW
14	W11248063 Whirlpool Mounting Kit
15	W11233371 Whirlpool Water Tube
16	W11247540 Whirlpool Refrigerator Housing
17	W11247543 Whirlpool Refrigerator Filter Cover
18	W11247538 Whirlpool Screw
19	W11645579 Whirlpool Electronic Control Board + Core
20	W11233638-includeCORE Whirlpool W11233638 Refrigerator Electronic Control Board + Core
21	HARNESS, HV
22	HARNESS, LV
23	W11302064 Whirlpool Tray Mount
24	LID, COVER
