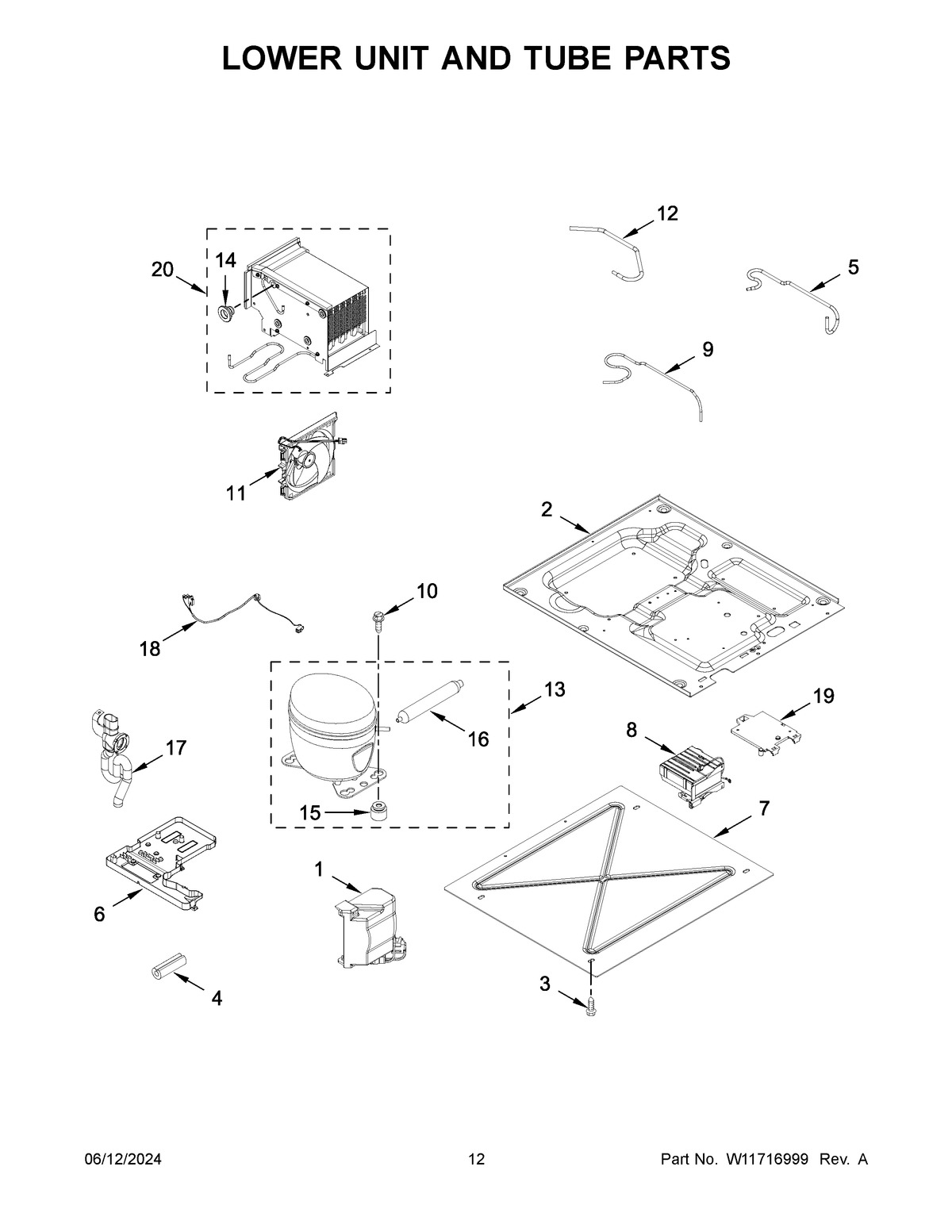

JBRFSR30RX00 07 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
NI	REFRIGERANT CHARGE 55.8 GRAMS (R600A)
1	W11247667 Whirlpool Refrigerator Cover
2	PAN, BASE
3	WPW10141625 Whirlpool Refrigerator Screw Assembly
4	GROMMET, EVAPORATOR TRAY
5	TUBE, SUCTION
6	TRAY, EVAPORATOR DRAIN
7	PLATE, BOTTOM
8	W11642201 Whirlpool Inverter Box
9	TUBE, DISCHARGE
10	SCREW
11	W11233637 Whirlpool Fan
12	TUBE, PROCESS
13B	W11504421 Whirlpool Refrigerator Coupler
13C	W11504416 Whirlpool Refrigerator Coupler
13A	W11504415 Whirlpool Refrigerator Coupler
13	W11557671 Whirlpool Refrigerator Compressor
14	GROMMET
15	W11661108 Whirlpool Grommet
16B	W11504447 Whirlpool Refrigerator Coupler
16	W11109499 Whirlpool Refrigerator Tube
17	ASSEMBLY, DRAIN TUBE
18	HARNESS, COMPRESSOR
19	BRACKET, INVERTER MOUNTING
20B	W11506623 Whirlpool Refrigerator Coupler
20A	W11504445 Whirlpool Refrigerator Coupler
20	W11233634 Whirlpool Condenser
