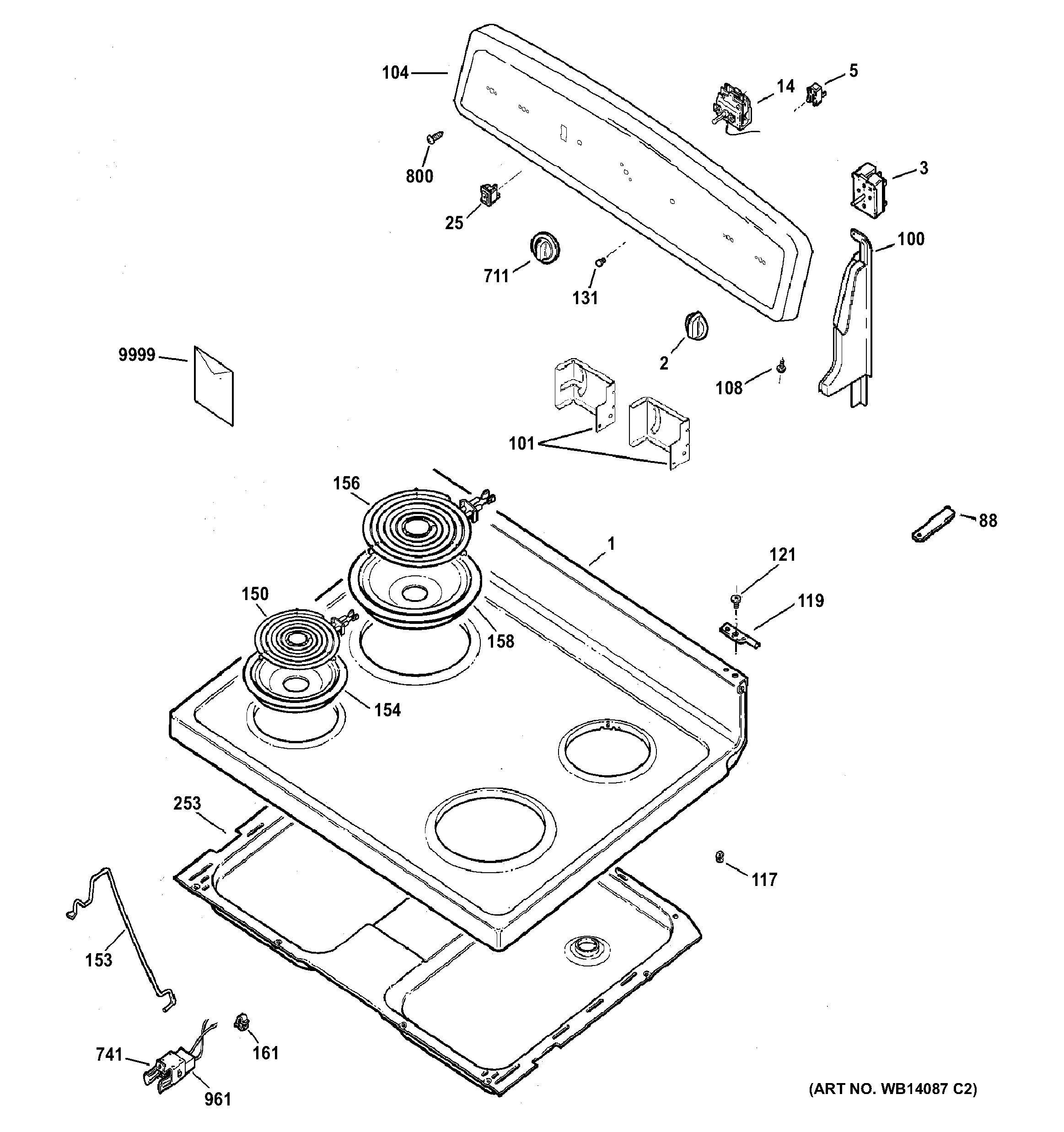

JBS03BM1WH CONTROL PANEL & COOKTOP

JBS03BM1WH CONTROL PANEL & COOKTOP

Written by

in

JBS03BM1WH CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10083 GE Oven White Cooktop O/S1
1WB62K10081 GE Oven Cooktop Assembly Bisque
2KNOB INFINITE (BK)
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10026 GE Oven Thermostat
25GEN WB24K0003
88GEN WB02K0062
88GEN WB02K10099
100GEN WB07K10260
100GEN WB07K10261
101WB37K10016 GE Cooktop Left Bracket
101WB37K10015 GE Right Cooktop Bracket
104GEN WB36K10682
108GEN WB01X5716
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
711WB03K10228 GE Oven Thermostat Knob
741WB02K10133 GE Oven Receptacle Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-10781
9999GEN 49-88034
9999GEN 49-88045
9999GEN 31-10831
9999GEN 31-21348
