JBS03G*R2

JBS03G*R2

Written by

in

JBS03G*R2

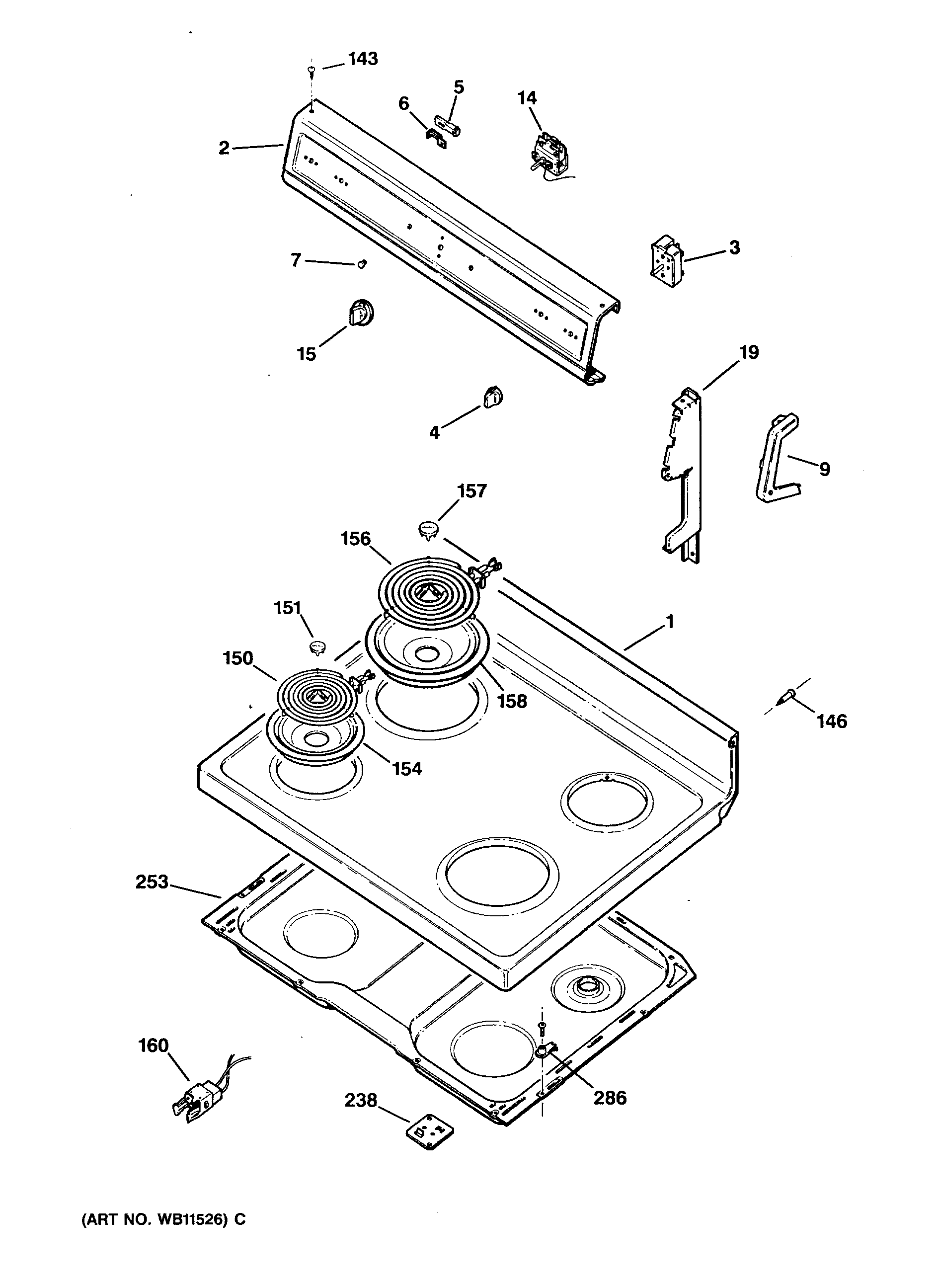

Products

Position	Product
1	RANGE TOP ASM – AD
1	GEN WB62X5407
2	GEN WB07X7141
3	WB21X36771 GE Surface Element Switch
4	GEN WB03X5775
5	NEON LAMP 118V
7	WB25X65 GE Oven Light Indicator
9	GEN WB07X7137
9	GEN WB07X7136
14	GEN WB02X6274
14	GEN WB21X5304
15	GEN WB03X5791
19	GEN WB07X7162
19	GEN WB07X7161
19	GEN WB07X7164
19	GEN WB07X7163
21	GEN WB49X5496
56	WB30M1 GE Oven Range Cooktop Burner Unit 6 Inch
57	WB30M2 GE Oven Range Stove Cooktop Burner Unit 8 Inch
108	WB1X5364 GE Oven Mounting Screw
109	GEN WB01X5743
143	GEN WB01X5860
146	GEN WB01X5832
151	GEN WB32X0052
152	WB2X1351 GE Oven Terminal Block
154	6" BOWL BLACK REAR BUBBLE
157	GEN WB32X0051
158	BOWL BURNER 8 (CH)
160	WB17X5113 GE Oven Cooktop Burner Receptacle Kit
223	GEN WB02X6195
224	RING RETAINING
251	GEN WB56X7036
252	GEN WB49X5498
252	WH2X930 GE Screw
253	GEN WB49X5499
254	GEN WB01X0549
256	GEN WB02X8116
258	GEN WB39X0051
259	SLIDE GUIDE
260	GEN WB10X5206
261	GEN WB10X0148
261	GEN WB10X0149
262	GEN WB02X3193
265	GEN WB02X6342
266	HOOK DOOR SPRING
267	GEN WB09X0146
271	BAFFLE
272	WB17X5095 GE Black Oven Terminal
274	KNOCKOUT PLATE
275	GEN WB02X8104
285	GEN WB02X8106
286	GEN WB02X8107
312	WB1X119D GE Oven Range Washer
314	PAD
321	WB1X5731D GE Oven Nut Package of 12
326	GEN WB02X6574
327	WB01K10093 GE Oven Speednut
328	SCR 8-22 BTHW 9/16 S HLT
342	GEN WB02X8108
348	PLATE GROUND
350	GEN WB55X5364
358	GEN WB36X5661
359	GEN WB07X7129
363	GEN WB02X3030
365	GEN WB15X5174
375	GEN WB02X8125
394	TOP DOOR TRIM BLK
397	WB15X5189 GE Oven Endcap 2-Pack
397	GEN WZ04X0384
399	GEN WB02X3285
409	GEN WB02X3470
415	GEN WB02X7608
440	GEN WB01X0585
441	GEN WB02X8110
441	GEN WB02X8111
452	SLIDE TOP
453	GEN WB02X3394
457	GEN WB56X7033
457	GEN WB56X7032
459	WB1X537 GE Oven Screw
482	GEN WB02X1126
518	GEN WB02X8120
519	GEN WB02X8121
520	GEN WB02X3471
520	GEN WB53X5146
521	HOOK PACKAGE
528	WB48X5099 GE Stove Oven Rack
529	WB48X10056 GE Broil Pan Set, Large Porcelain
530	BROILER PAN RACK
532	GEN WB38X5063
534	WB2X1522 GE Stove Range Oven Silcone Door GasKET
650	BAKE ELEMENT SELF CLEAN
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
740	CLIP WIRE BLACK
752	WZ4X345D GE Screw Package 12 C92
769	WB1X500D GE Oven Screw Package
904	GEN WB01X5550
961	CLIP MTG LAMP
32767	GEN 49-8323
32767	WB02T10415 GE Oven Anti-Tip Bracket Assembly
32767	GEN 31-0824
