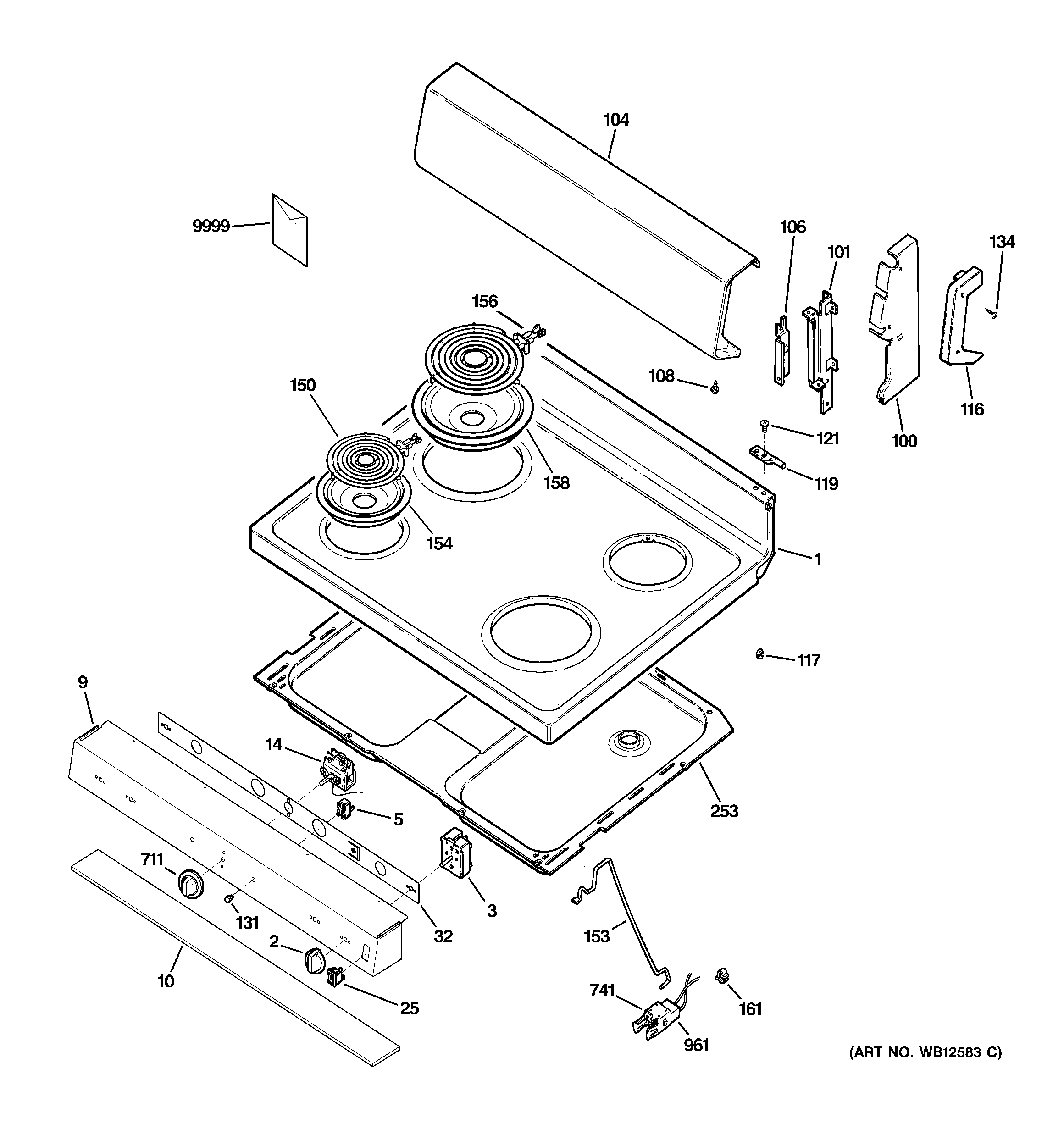

JBS15F2CT CONTROL PANEL & COOKTOP

JBS15F2CT CONTROL PANEL & COOKTOP

Written by

in

JBS15F2CT CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10081 GE Oven Cooktop Assembly Bisque
2WB3K5240 GE Oven Infinite Control Knob
3WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
3WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
5LAMP PILOT
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9GEN WB36K10279
10WB35K10029 GE Oven Burner Box Insulation
14WB20K5031 GE Oven Thermostat
14CLIP THERMOMSTAT
25GEN WB24K10011
32GEN WB34K10056
100GEN WB07K10115
100GEN WB07K10116
101GEN WB37K0018
101GEN WB37K0017
104GEN WB36K10278
106GEN WB10K10002
106GEN WB10K10001
108WB1X5364 GE Oven Mounting Screw
116GEN WB07K10118
116GEN WB07K10117
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
134GEN WB01K10017
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253GEN WB64K10002
711WB3K5291 GE Oven Thermostat Knob
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88006
9999GEN 31-21061
