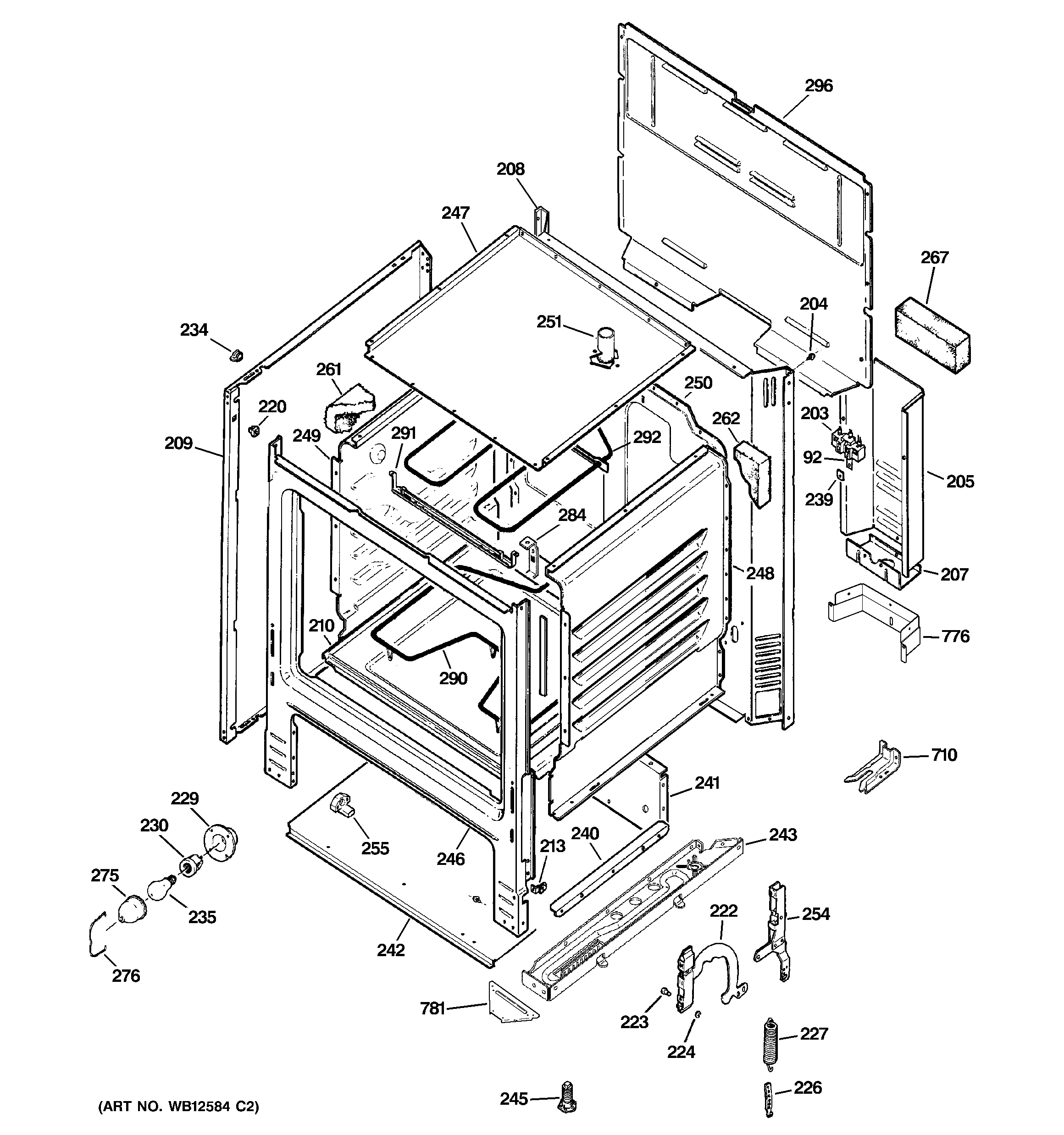

JBS15F3WH BODY PARTS

JBS15F3WH BODY PARTS

Written by

in

JBS15F3WH BODY PARTS

Products

PositionProduct
92WB1X1261 GE Oven Screw
92GEN WB02T10030
92PLATE GROUND
203WB17X5095 GE Black Oven Terminal
204WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
204WZ4X345D GE Screw Package 12 C92
204WB1X536 GE Oven Screw
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB62K10070
209GEN WB63K10013
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB02K0011
227GEN WB09K0001
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239GEN WB01X5968
240WB39K16 GE Oven Drawer Rail
241WB63K10030 GE Rear Broil Panel
242GEN WB63K10038
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246FRAME WELD ASM
247WB63K10021 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250WB63K10007 GE Oven Back
251WB38K10006 GE Range Vent Tube
251GEN WB04K10002
254GEN WB10K0014
254GEN WB10K0013
254GEN WB01K0053
255GEN WB02K10053
261WB35K10108 GE Oven Insulation Wrap
262GEN WB35K0017
267GEN WB06K0002
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
284GEN WB02K10055
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
776WB34K10054 GE Terminal Comp Guard
781GEN WB02K10054
