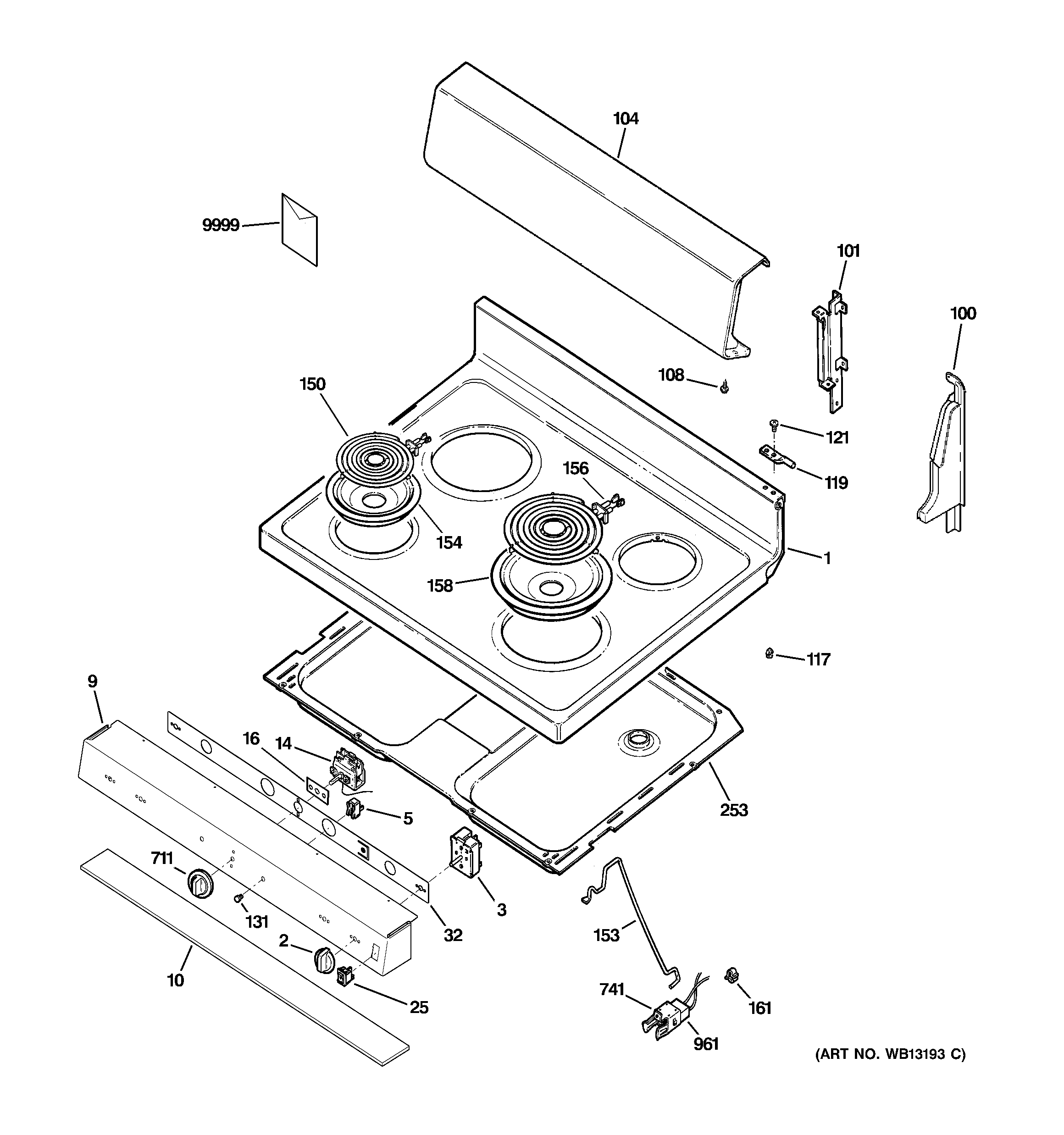

JBS15H1BB CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB62K10086 GE Oven Control Thermostat
2	GEN WB03T10203
3	WB23K10003 GE Oven Control Switch
3	WB23K10002 GE Oven Element Switch
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9	GEN WB36K10435
10	WB35K10029 GE Oven Burner Box Insulation
14	WB20K10035 GE Oven Control Thermostat
16	WB02K10070 GE Oven Thermostat Carton Cover
25	GEN WB24K10011
32	GEN WB34K10056
100	WB07K10193 GE Oven End Support Gloss Black
100	WB07K10194 GE Oven End Support Gloss Black
100	GEN WB07K10198
100	GEN WB07K10197
101	WB37K10004 GE Cooktop Left Bracket
101	WB37K10003 GE Cooktop Right Bracket
104	GEN WB36K10434
108	WB01T10016 GE Oven Screw 8-18 AB Hex
117	GEN WB02K0017
117	WB02K10075 GE Oven Plastic Nail
119	WB14K5 GE Oven Hinge Pin
121	WB1K5119 GE Oven Screw
131	WB25T10041 GE Oven Lens
150	WB30T10076 GE Range Stove Cooktop 6" SURFACE ELEMENT
153	WB02K10026 GE Oven Rod Support
154	WB31T10014 GE Oven 6-Inch Black Drip Bowl
156	WB03T10167 GE Range Stove Cooktop 8" Surface Burner Element 5 Turn
158	WB31T10015 8" BOWL BLACK REAR BUBBLE
161	CLIP WIRE
253	GEN WB64K10002
711	WB03K10237 GE Oven Thermostat Knob Assembly
741	RECEPTACLE W/CLIP
961	WB17T10006 GE Oven Burner Receptacle Block
9999	GEN 49-88013
9999	GEN 31-21096
