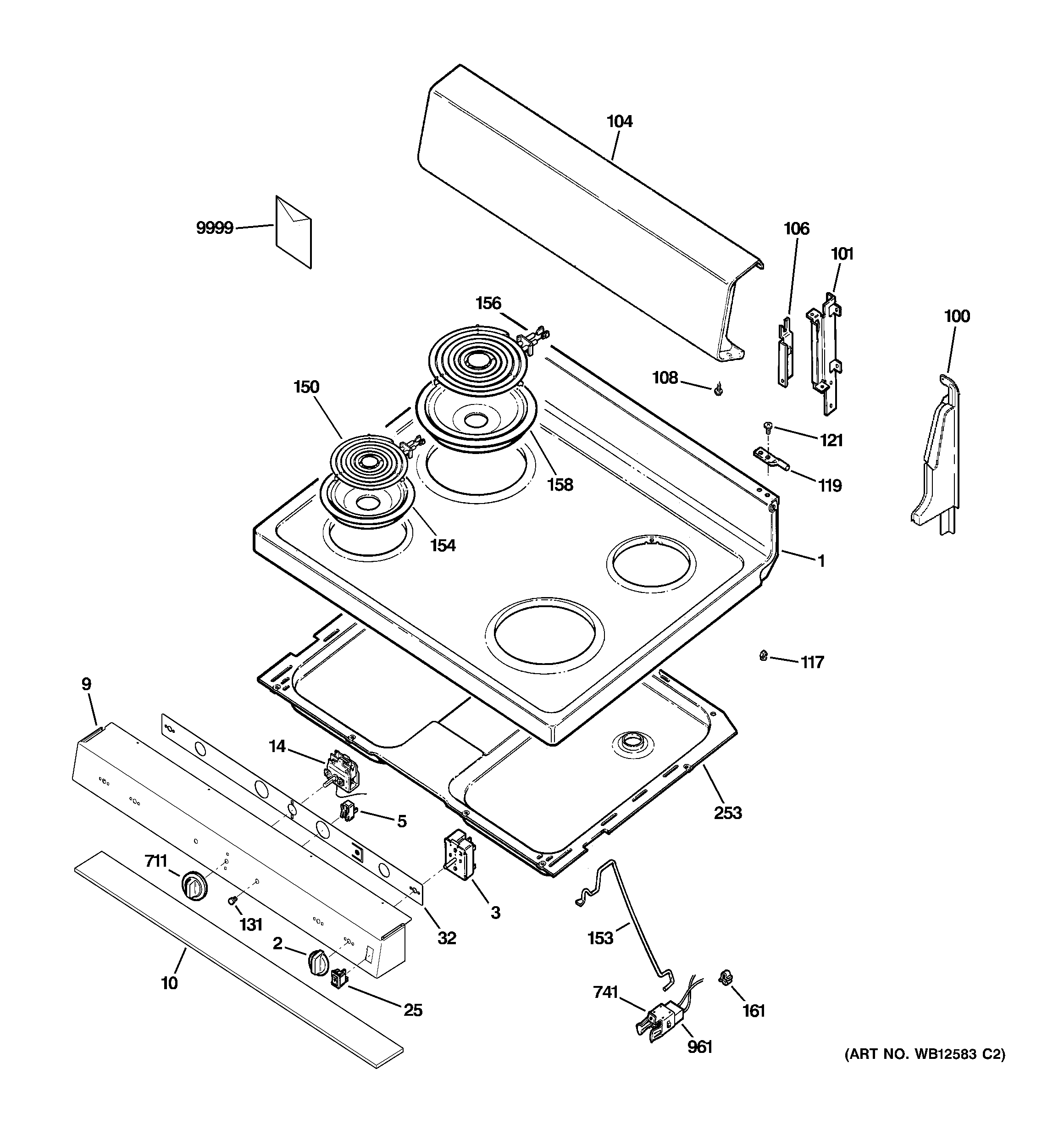

JBS15H1CC CONTROL PANEL & COOKTOP

JBS15H1CC CONTROL PANEL & COOKTOP

Written by

in

JBS15H1CC CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10081 GE Oven Cooktop Assembly Bisque
2GEN WB03K10153
2KNOB BQ
3WB23M24 GE Stove Range Infinite Switch 1500W Cooktop Surface Burner
3WB23K5027 GE Stove Range Oven Infinite Control Burner Switch
3WB23K10003 GE Oven Control Switch
3WB23K10002 GE Oven Element Switch
5LAMP PILOT
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9GEN WB36K10368
10WB35K10029 GE Oven Burner Box Insulation
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10035 GE Oven Control Thermostat
25GEN WB24K10011
25WB24K10005 GE Oven Switch Rocker
32GEN WB34K10056
100GEN WB07K10197
100GEN WB07K10198
101WB37K10004 GE Cooktop Left Bracket
101WB37K10003 GE Cooktop Right Bracket
104GEN WB36K10367
106GEN WB10K10001
106GEN WB10K10002
108WB1X5364 GE Oven Mounting Screw
108WB01T10016 GE Oven Screw 8-18 AB Hex
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
131WB25T10041 GE Oven Lens
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253GEN WB64K10002
711GEN WB03K10152
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-21096
9999GEN 49-88006
9999GEN 49-88008
9999GEN 49-88012
9999GEN 31-21061
