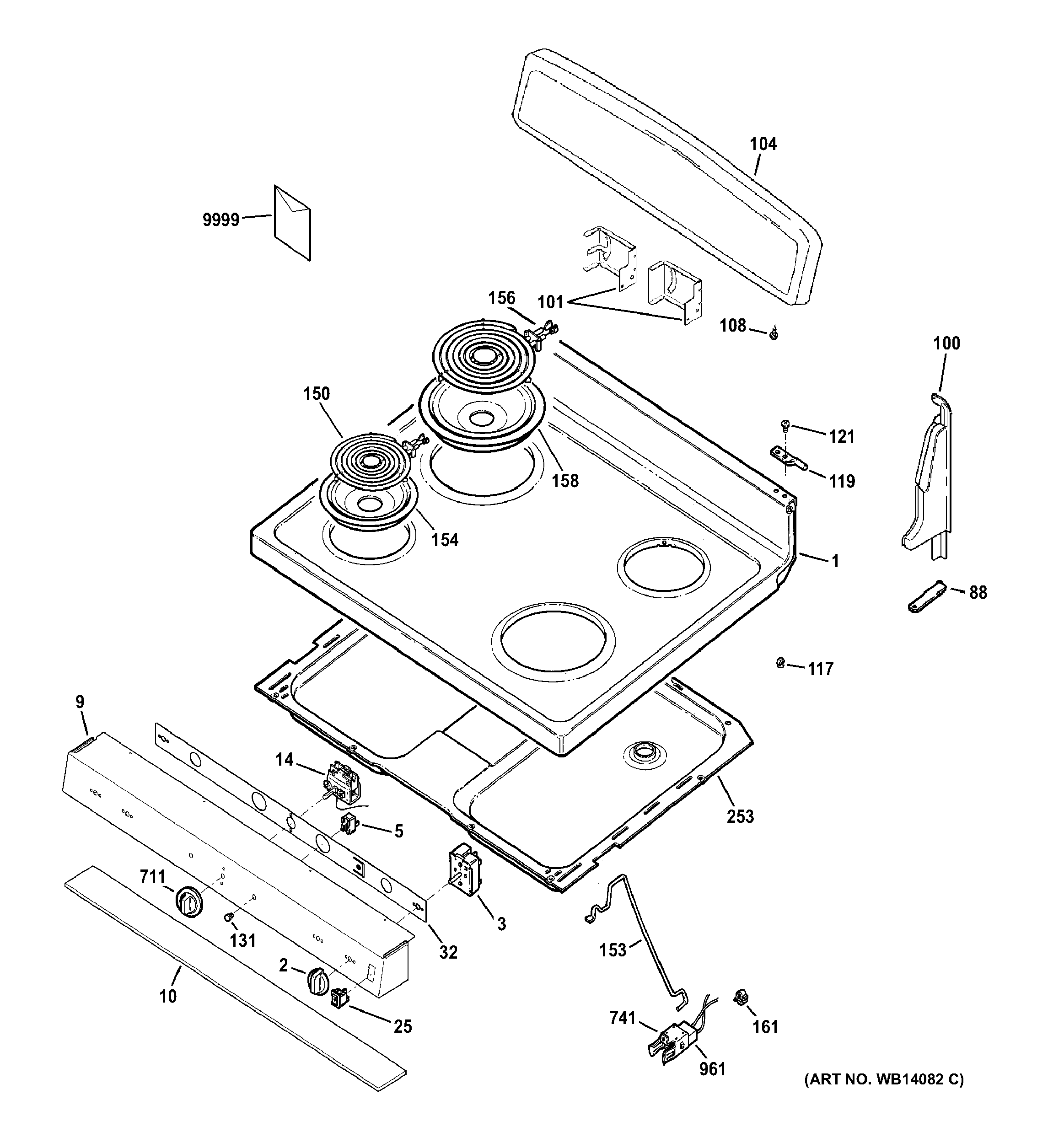

JBS15M1BB CONTROL PANEL & COOKTOP

JBS15M1BB CONTROL PANEL & COOKTOP

Written by

in

JBS15M1BB CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10081 GE Oven Cooktop Assembly Bisque
1WB62K10086 GE Oven Control Thermostat
1WB62K10083 GE Oven White Cooktop O/S1
2WB03T10285 GE Oven Infinite Control Knob
2KNOB INFINITE (BK)
2WB03T10282 GE Oven Infinite Knob (White)
3WB23K10002 GE Oven Element Switch
3WB23K10003 GE Oven Control Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9GEN WB36K10747
9GEN WB36K10690
9GEN WB36K10749
10WB35K10029 GE Oven Burner Box Insulation
14WB02K10070 GE Oven Thermostat Carton Cover
14WB20K10035 GE Oven Control Thermostat
25GEN WB24K0003
25WB24K5022 GE Oven Rocker Switch
25WB24K10005 GE Oven Switch Rocker
32GEN WB34K10056
88GEN WB02K10098
88GEN WB02K10099
100GEN WB07K10270
100GEN WB07K10261
100GEN WB07K10260
100GEN WB07K10265
100GEN WB07K10271
100GEN WB07K10266
101WB37K10016 GE Cooktop Left Bracket
101WB37K10015 GE Right Cooktop Bracket
104GEN WB36K10746
104GEN WB36K10748
104GEN WB36K10689
108GEN WB01X5716
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5874
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
131WB25T10041 GE Oven Lens
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
158WB31T10015 8" BOWL BLACK REAR BUBBLE
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
711WB03K10231 GE Oven Knob Thermostat Assembly
711GEN WB03K10238
711WB03K10237 GE Oven Thermostat Knob Assembly
741WB02K10133 GE Oven Receptacle Clip
961WB17T10006 GE Oven Burner Receptacle Block
9999WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999GEN 31-10831
9999GEN 49-88029
9999GEN 49-88045
9999GEN 49-88045-2
9999GEN 31-10781
9999GEN 31-21351
