JBS27BC1AD CONTROL PANEL & COOKTOP

JBS27BC1AD CONTROL PANEL & COOKTOP

Written by

in

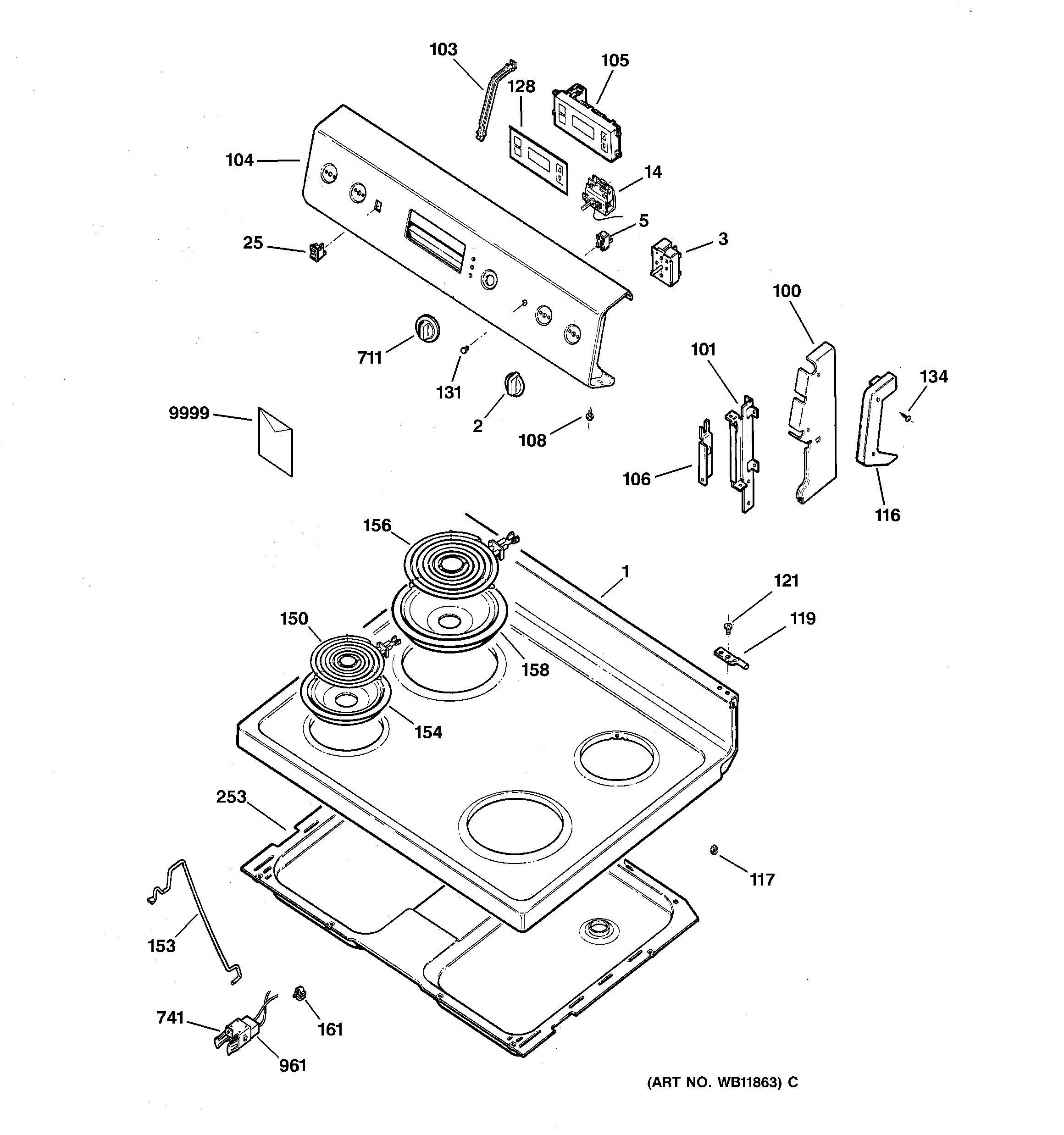

JBS27BC1AD CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB62K10042
2WB03T10072 GE Oven Burner Knob
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
14CLIP THERMOMSTAT
14WB20K10004 GE Stove Range Oven Thermostat
25GEN WB24K10011
100GEN WB07K10009
100GEN WB07K10008
101GEN WB37K0017
101GEN WB37K0018
103GEN WB02K10027
104GEN WB36K10182
105WB27T10469 GE Oven Timer Control Board
106GEN WB10K10001
106GEN WB10K10002
108GEN WB01X5716
108WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
116GEN WB07K10004
116WB07K10003 GE Oven Right Black Endcap
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27T10036
131WB25T10041 GE Oven Lens
134GEN WB01K10003
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
212WB1K2 GE Oven Speednut
253GEN WB64K10002
711GEN WB03X10012
741RECEPTACLE W/CLIP
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 31-20763
9999GEN 49-8971
