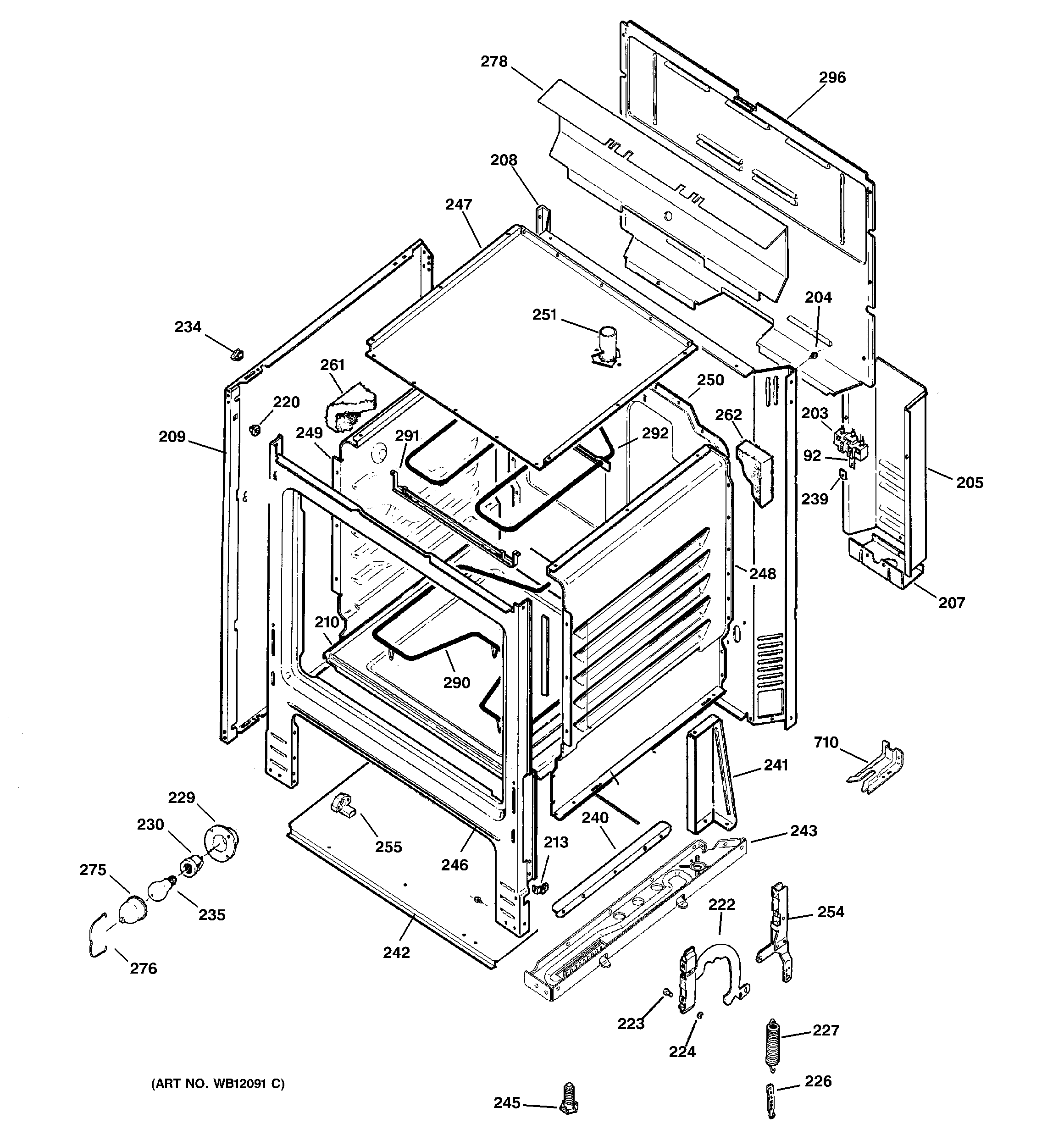

JBS27BC2AD BODY PARTS

JBS27BC2AD BODY PARTS

Written by

in

JBS27BC2AD BODY PARTS

Products

PositionProduct
92GEN WB02T10030
203WB17X5095 GE Black Oven Terminal
204WZ4X345D GE Screw Package 12 C92
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208GEN WB63K10005
209GEN WB63K10014
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0001
229GEN WB08K0001
230GEN WB08K0002
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239GEN WB01X5968
239PLATE GROUND
240WB39K16 GE Oven Drawer Rail
241CLIP WINDOW
242GEN WB63K10009
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02X10521 GE Oven Leveling Leg
246GEN WB63K10012
247WB63K10021 GE Oven Top
248GEN WB63K10010
249GEN WB63K10011
250WB63K10007 GE Oven Back
251GEN WB04K10002
251WB38K10002 GE Oven Vent Tube
254GEN WB01K0053
254GEN WB10K0014
254GEN WB10K0013
255WB02K10158 GE Oven Drawer Support
261WB35K10108 GE Oven Insulation Wrap
262GEN WB35K0017
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
278GEN WB34K10032
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10031
