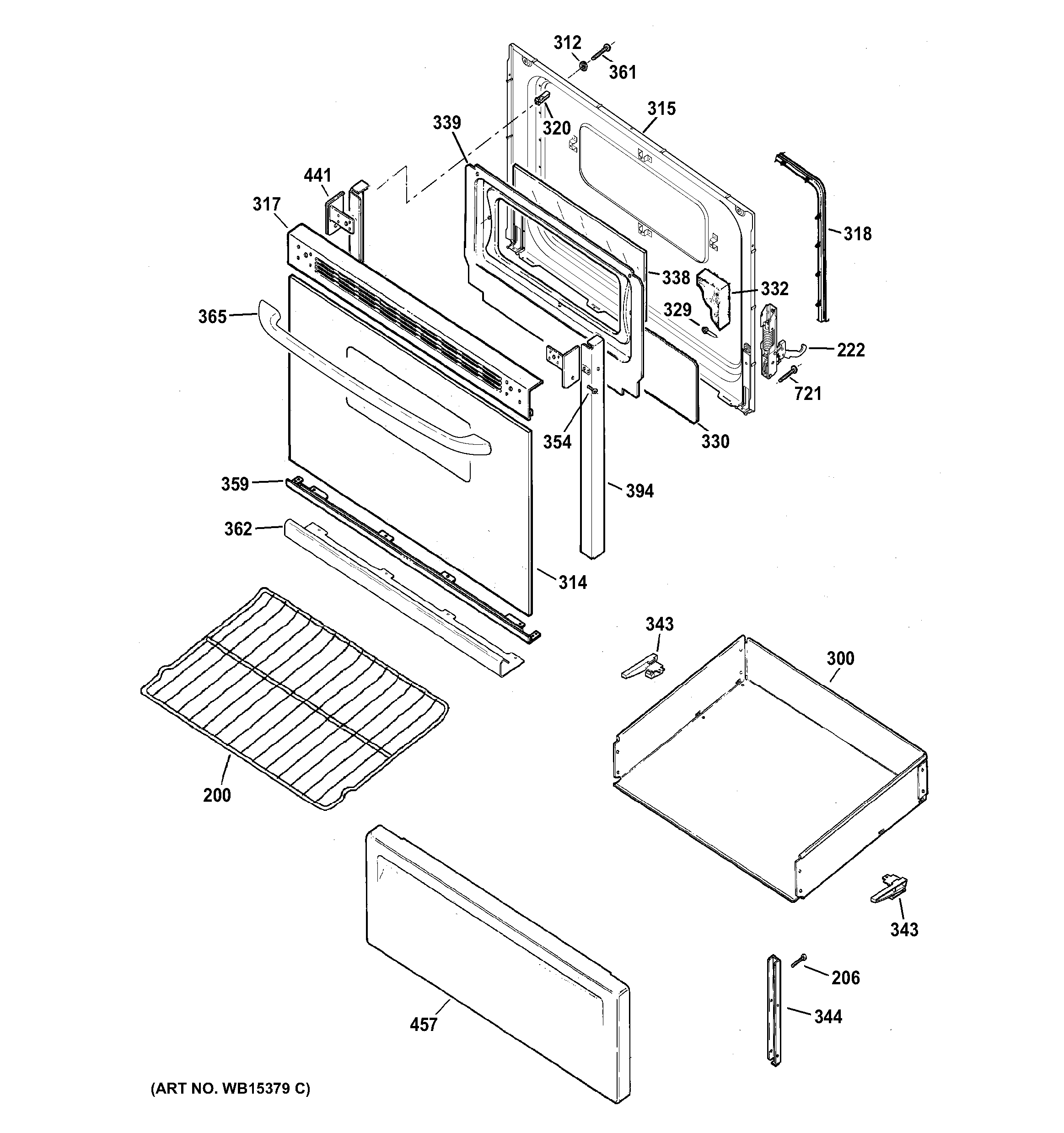

JBS27DF1BB DOOR & DRAWER PARTS

JBS27DF1BB DOOR & DRAWER PARTS

Written by

in

JBS27DF1BB DOOR & DRAWER PARTS

Products

PositionProduct
200OVEN RACK
206WB01K10091 GE Oven Screw
222WB10X21980 GE Hinge Door
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314GEN WB56X21371
315WB56X21217 GE Oven Door Liner Weld
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
329WB01T10008 GE Oven Screw 10-32
330WB35K10041 GE Oven Reflector
332WB35K10114 GE Oven Door Insulation
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
362WB07X20288 GE Oven Barrier Door
365WB15K10099 GE Oven Handle
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10249
441GEN WB07X7182
441GEN WB07X7181
457WB56X31458 GE Black Drawer Panel
721WB1X536 GE Oven Screw
