JBS27DIF1WW BODY PARTS

JBS27DIF1WW BODY PARTS

Written by

in

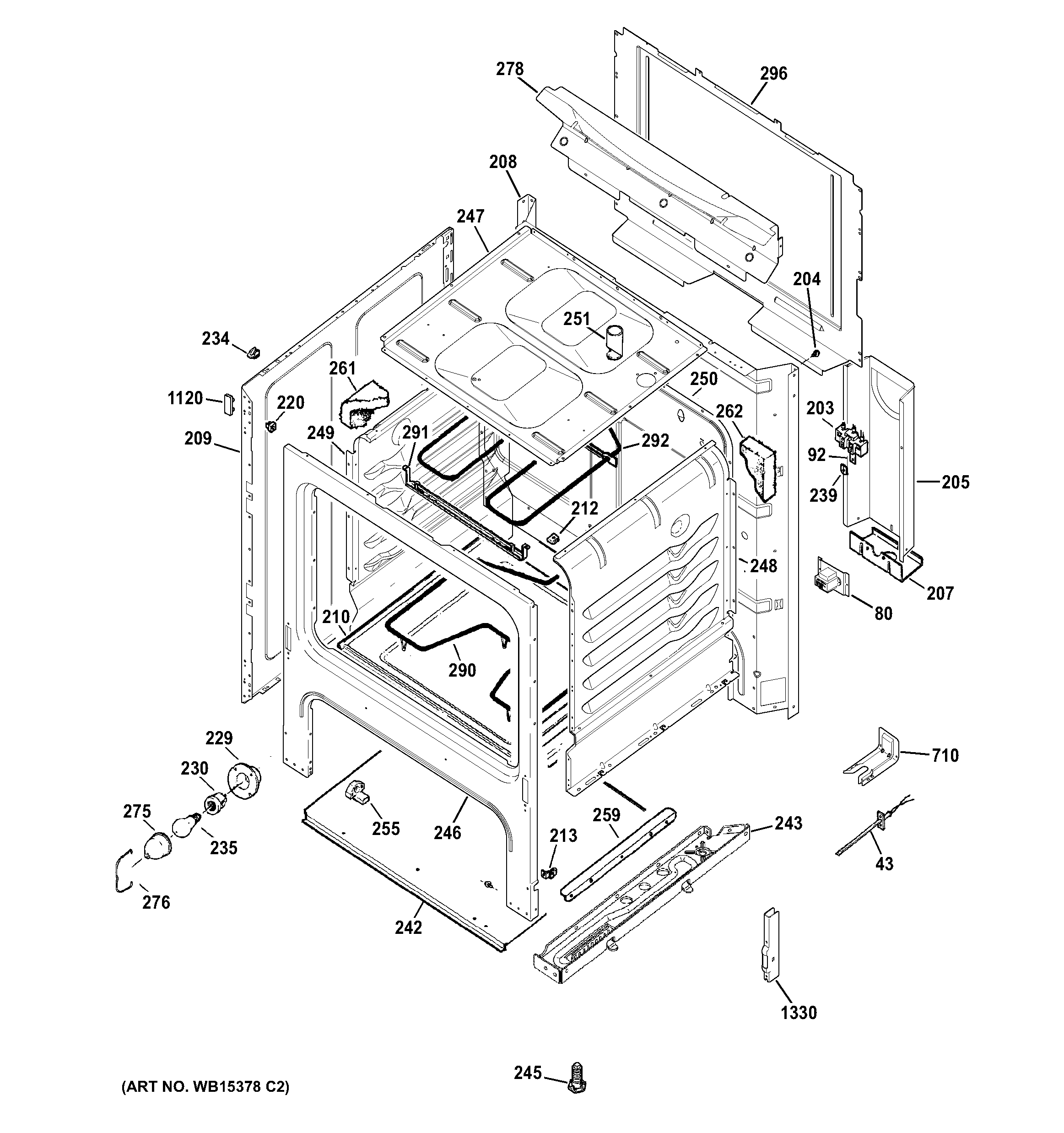

JBS27DIF1WW BODY PARTS

Products

PositionProduct
43SENSOR ASM
80GEN WB26K10017
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WB1K84 GE Oven Screw and
205WB34X21584 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB63K10273 GE Back
209WB63K10144 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235GEN WB08K10019
239PLATE GROUND
242GUARD INSULATION BOTTOM
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246WB63X21360 GE Frame Weld Assembly
247WB63K10021 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250WB53K10007 GE Oven Back
251WB38K10002 GE Oven Vent Tube
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
278WB34X21602 GE Oven Divider Wiring
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X21585 GE Back Cover
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
1120WB02K10179 GE Range Bumper
1330WB10X20220 GE Oven Receiver Hinge
