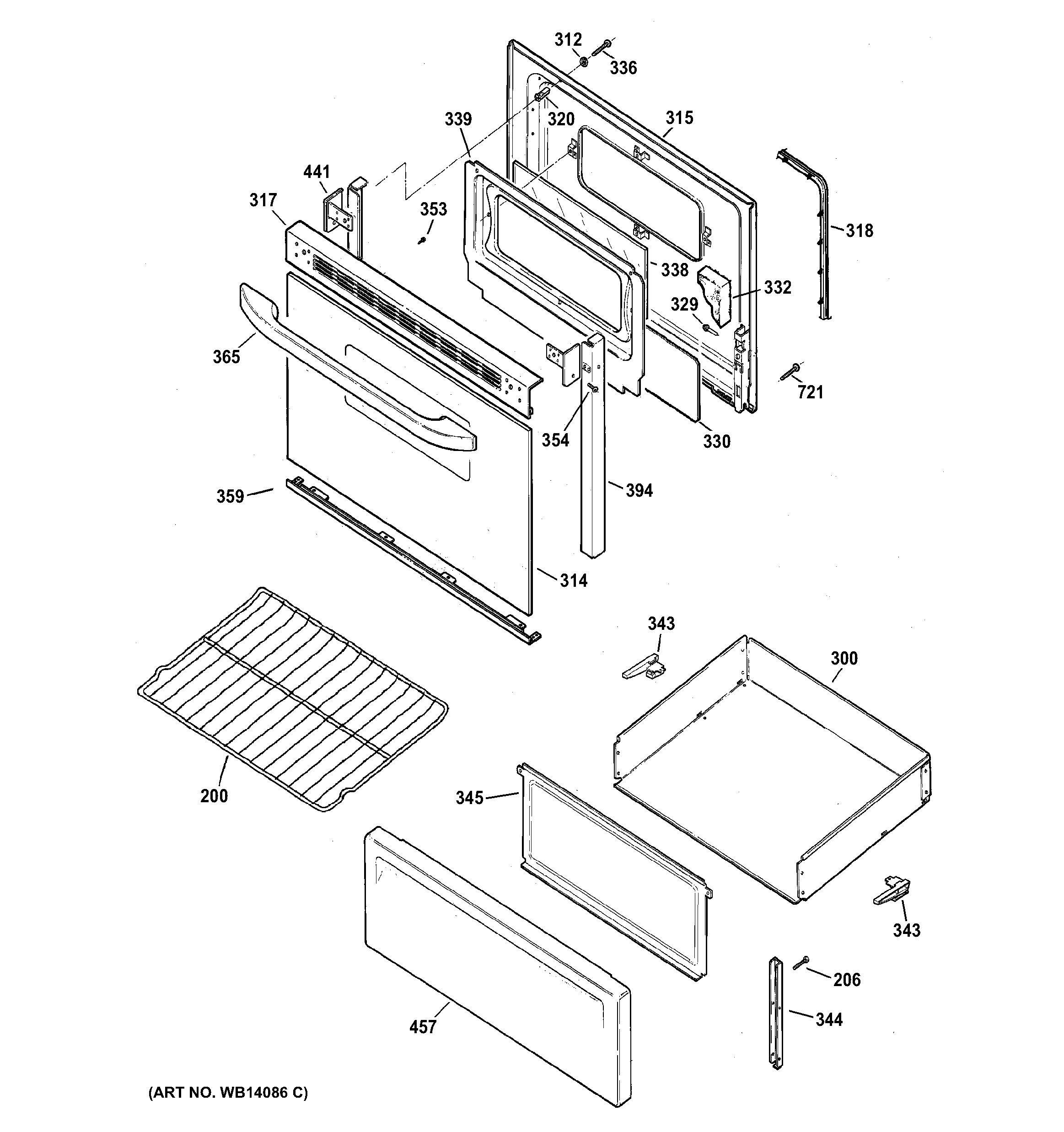

JBS27DM1CC DOOR & DRAWER PARTS

JBS27DM1CC DOOR & DRAWER PARTS

Written by

in

JBS27DM1CC DOOR & DRAWER PARTS

Products

PositionProduct
200WB48T10095 GE Oven Rack
206WR01X10065 GE Screw
300GEN WB58K10007
312WB1X119D GE Oven Range Washer
314GEN WB57K10121
314GEN WB57K10120
314GEN WB57K10122
315GEN WB55K10043
317WB36K10212 GE Top Door Trim (Bisque)
317WB7K403 GE Oven Top Door Trim
317GEN WB07K0400
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
329WB1X558D GE Oven Screw Package
330WB35K10041 GE Oven Reflector
332WB35K10114 GE Oven Door Insulation
336WB01K10073 GE Oven Screw 10-16 PL PNT 2.22S
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
343WB02K10061 GE Oven Drawer Glide
343WB02K10062 GE Oven Drawer Glide
344GEN WB02K10025
345WB34K10034 GE Oven Drawer Cover
353WB1K67 GE Oven Screw 8-22
354WB01K10024 GE Oven Screw Mounting Endcap (Bisque)
354WB1K66 GE Screw
354WB1K62 GE Oven Door Assembly
359WB07K10269 GE Oven Bottom Trim Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
359TRIM BOTTOM ASM
365WB15K10101 GE Oven Handle
365WB15K10100 GE Oven Handle
365WB15K10099 GE Oven Handle
394GEN WB07K10273
394WB07K10248 GE Oven Trim Post Left
394GEN WB07K10272
394GEN WB07K10249
394GEN WB07K10253
394GEN WB07K10254
441GEN WB07X7181
441GEN WB07X7187
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7182
441GEN WB07K10129
441GEN WB07K10128
457WB56X31457 GE Drawer Panel Bisque
457WB56X31458 GE Black Drawer Panel
457WB56X31459 GE Oven Drawer Front
721WB1X536 GE Oven Screw
