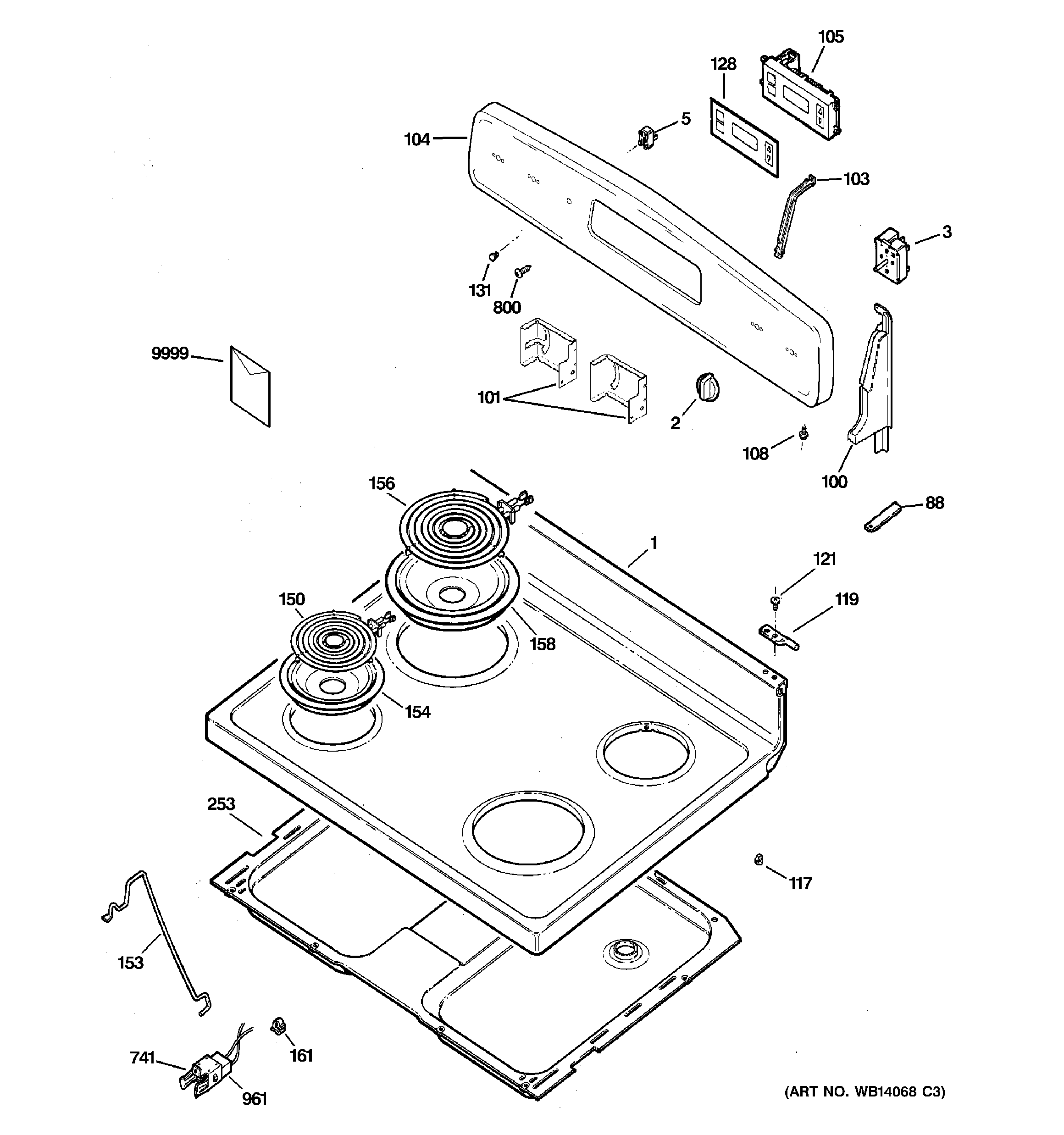

JBS27DM1WW CONTROL PANEL & COOKTOP

JBS27DM1WW CONTROL PANEL & COOKTOP

Written by

in

JBS27DM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62K10079 GE Range Top
1WB62K10080 GE Range White Top
1WB62K10085 GE Oven Cooktop Black
2WB03T10285 GE Oven Infinite Control Knob
2KNOB INFINITE (BK)
2WB03T10282 GE Oven Infinite Knob (White)
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10025 SWITCH INFIN(2500W)
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88GEN WB02K0062
88GEN WB02K10098
88GEN WB02K10099
100GEN WB07K10271
100GEN WB07K10270
100GEN WB07K10266
100GEN WB07K10265
100GEN WB07K10261
100GEN WB07K10260
101WB37K10015 GE Right Cooktop Bracket
101WB37K10016 GE Cooktop Left Bracket
103GEN WB02K10181
104GEN WB36K10687
104GEN WB36K10686
104GEN WB36K10685
105CONTROL OVEN TO9 (ELEC)
108WB1X5364 GE Oven Mounting Screw
108GEN WB01X5716
108GEN WB01X5874
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10266
128WB27K10256 GE Oven Overlay T09
128WB27K10255 GE Oven Overlay T09
131WB25T10041 GE Oven Lens
150WB30X24401 GE Oven Surface Element Coil
153WB02K10026 GE Oven Rod Support
154WB31T10010 GE Oven 6" Chrome Burner Drip Bowl
154WB31T10014 GE Oven 6-Inch Black Drip Bowl
156WB30T10074 GE Oven 8" Burner Unit 2600W
158WB31T10015 8" BOWL BLACK REAR BUBBLE
158WB31T10011 GE Oven 8" Chrome Drip Bowl Burner
161CLIP WIRE
253WB64K10009 GE Oven Cooktop Box
741WB02K10133 GE Oven Receptacle Clip
800WB1K8 GE Oven Thermostat Screw
961WB17T10006 GE Oven Burner Receptacle Block
9999GEN 49-88034
9999GEN 49-88045
9999GEN 49-88045-2
9999GEN 31-10831
9999GEN 31-10781
9999GEN 31-21350
