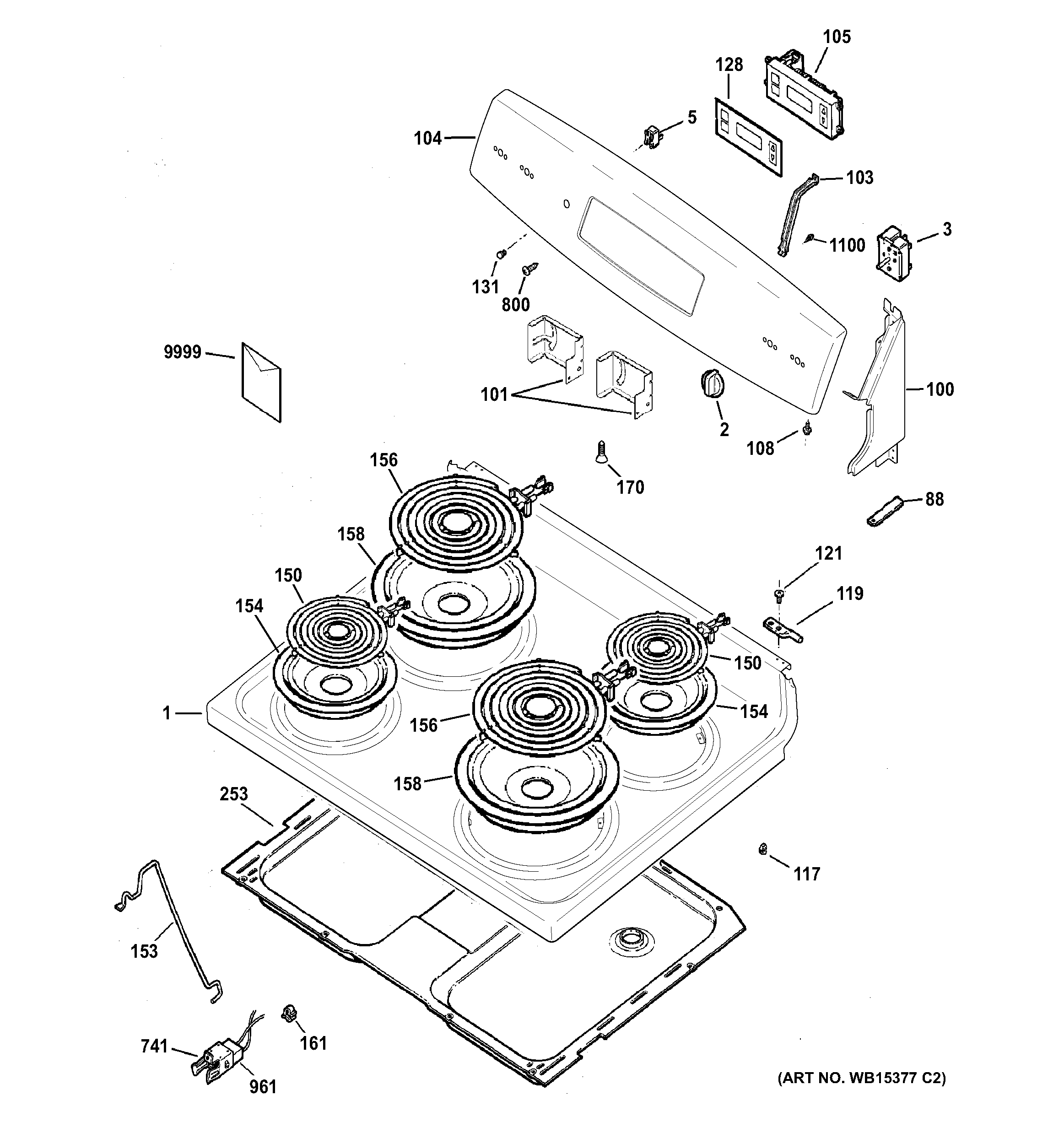

JBS27RF1SS CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB62X21354 GE Range Top
2	WB03X21356 GE Oven Knob
3	WB24T10025 SWITCH INFIN(2500W)
3	WB24T10029 GE Oven Infinite Burner Switch
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
88	GEN WB02K0062
100	WB07X20194 GE Range Right End Support
100	WB07X20197 GE Range Left End Support
101	WB37X20193 GE Cooktop Bracket
101	WB37X20196 GE Cooktop Bracket
103	WB02K10150 GE Oven Control Bracket
104	GEN WB36X21374
105	CONTROL OVEN TO9 (ELEC)
108	WB1X5364 GE Oven Mounting Screw
117	GEN WB02K0017
117	WB02K10075 GE Oven Plastic Nail
119	WB14K5 GE Oven Hinge Pin
121	WZ4X345D GE Screw Package 12 C92
128	WB07X21373 GE Oven Overlay T09
131	WB25T10041 GE Oven Lens
150	SURFACE UNIT ASM 6
153	WB02K10026 GE Oven Rod Support
154	WB31T10014 GE Oven 6-Inch Black Drip Bowl
156	WB30K10018 GE Oven 8" Burner Unit
158	WB31T10015 8" BOWL BLACK REAR BUBBLE
161	CLIP WIRE
170	GEN WB01X5716
253	WB64K10009 GE Oven Cooktop Box
741	WB02K10133 GE Oven Receptacle Clip
800	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
961	WB17T10006 GE Oven Burner Receptacle Block
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
9999	GEN 49-88056
9999	GEN 31-10892
9999	GEN 31-17096
