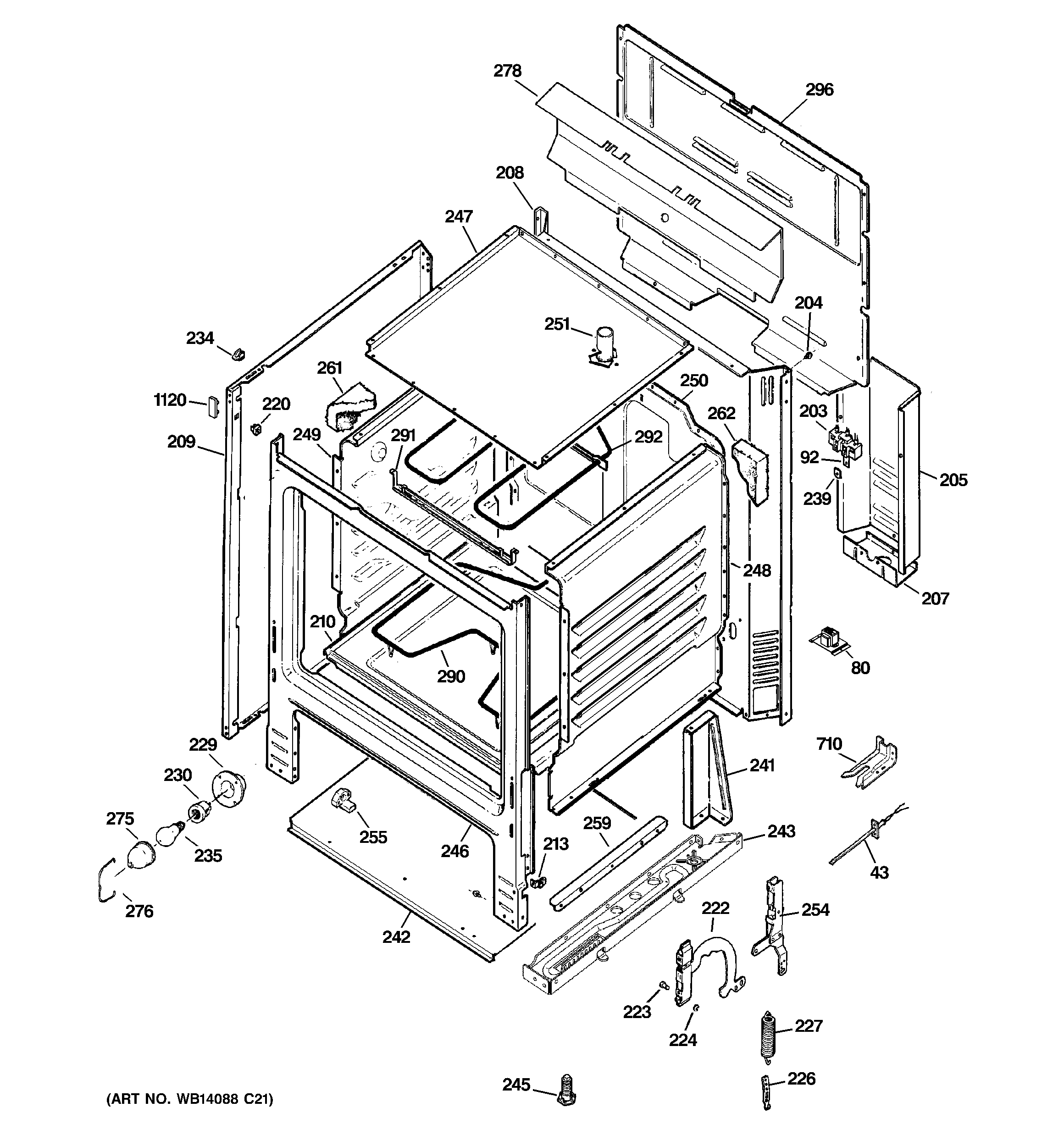

JBS27SIM1SS BODY PARTS

JBS27SIM1SS BODY PARTS

Written by

in

JBS27SIM1SS BODY PARTS

Products

PositionProduct
43SENSOR ASM
80GEN WB26K10017
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
205WB34K10029 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB63K10273 GE Back
209WB63K10141 GE Side Panel
210WB63K10006 GE Oven Bottom Assembly
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
222WB10K12 GE Oven Hinge Assembly
223GEN WB02X6195
224RING RETAINING
226GEN WB09K10001
227GEN WB09K0005
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
234GEN WB02K0066
235GEN WB08K10019
239PLATE GROUND
241SUPPORT CONTROL
242GUARD INSULATION BOTTOM
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
246GEN WB63K10274
247WB63K10021 GE Oven Top
248WB63K10244 GE Oven Right Side Rack
249WB63K10245 GE Oven Left Side Ran
250WB53K10007 GE Oven Back
251WB38K10002 GE Oven Vent Tube
254SUPPORT ASM RIVET LF
254GEN WB01K0053
254SUPPORT ASM RIVET RT
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
278WB34K10083 GE Divider Wiring
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296GEN WB34K10095
710WB02K10254 GE Oven Anti-Tip Bracket Assembly
1120WB02K10178 GE Oven Bumper
