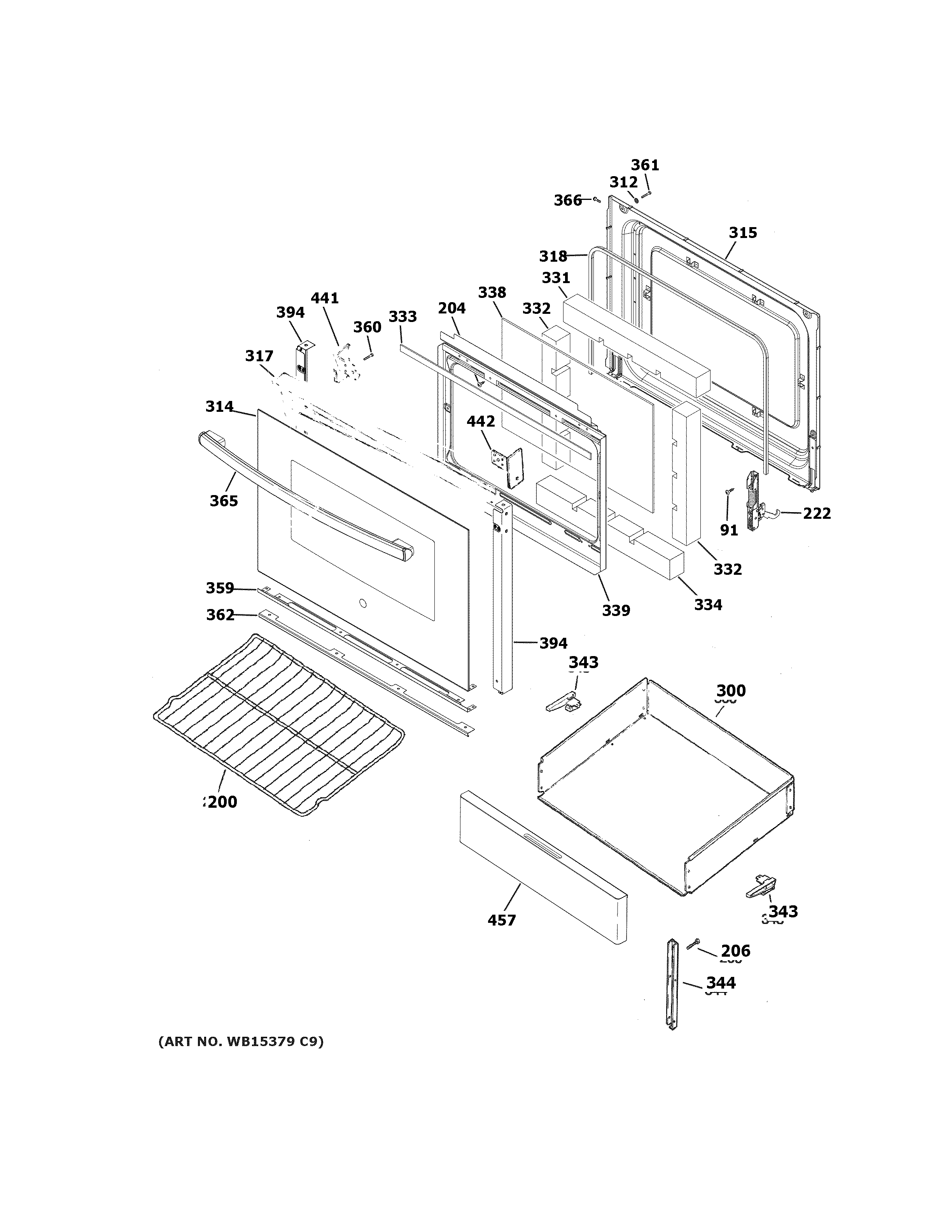

JBS360DM2BB DOOR & DRAWER PARTS

JBS360DM2BB DOOR & DRAWER PARTS

Written by

in

JBS360DM2BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21977 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X21358 GE Oven Glass Door
315WB56X20206 GE Range Door Panel
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
331WB35K10148 GE Oven Door Top Insulation
332WB35K10146 GE Door Side Insulation
333GEN WB35K0022
334WB35K10147 GE Oven Bottom Insulation Door
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
359WB07K10232 GE Oven Bottom Trim Assembly
360WB01K10012 GE Oven Screw 8-22 PL 1HX
361SCREW
362WB07X20288 GE Oven Barrier Door
365WB15X35072 GE Black Handle and Endcap
366WB02X32441 GE Screw 10-16 PNT 2.5"
394WB07X23478 GE Trim Post Left
394WB07X23479 GE Right Trim Post
441WB7K263 GE Oven Door Endcap
442WB7K264 GE Oven Door Endcap
457WB56X31458 GE Black Drawer Panel
