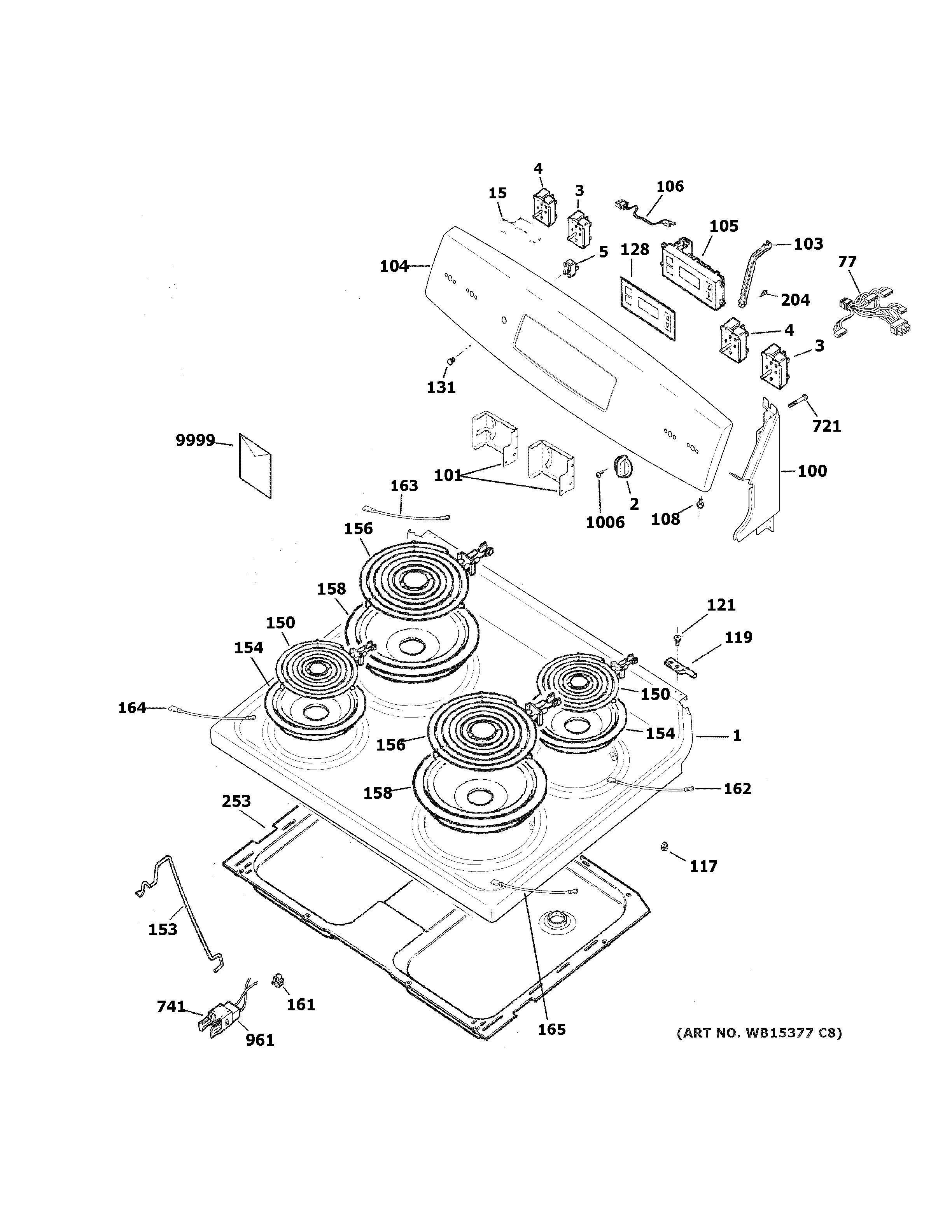

JBS360DM2WW CONTROL PANEL & COOKTOP

JBS360DM2WW CONTROL PANEL & COOKTOP

Written by

in

JBS360DM2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X21353 GE Range Top
2KNOB VALVE
3WB24T10025 SWITCH INFIN(2500W)
4WB24T10022 GE Oven Infinite Switch
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
15COVER THERMOSTAT
77WB18X32877 GE Main Harness
100WB07X20277 GE Range Right End Support
100END SUPPORT LEFT
101WB37X20193 GE Cooktop Bracket
101WB37X20196 GE Cooktop Bracket
103WB02K10150 GE Oven Control Bracket
104WB36X21597 GE Oven Control Trim
105CONTROL OVEN TO9 (ELEC)
106WB18X31489 GE Control Harness
108GEN WB01X5874
117GEN WB02K0017
117WB02K10075 GE Oven Plastic Nail
119WB14K5 GE Oven Hinge Pin
121WZ4X345D GE Screw Package 12 C92
128WB07X21378 GE Oven Overlay T09
131WB25T10041 GE Oven Lens
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
161CLIP WIRE
162WB18X27485 GE Surface Unit Harness
163WB18X27486 GE Surface Unit Harness
164WB18X27487 GE Oven Surface Unit Harness
165WB18X27488 GE Oven Surface Unit Harness
204WB1K5062 GE Oven Screw
253WB64K10009 GE Oven Cooktop Box
721WB1X536 GE Oven Screw
741WB02K10133 GE Oven Receptacle Clip
961WB17T10006 GE Oven Burner Receptacle Block
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999WB49X21392 GE Oven Hinge Service Kit
