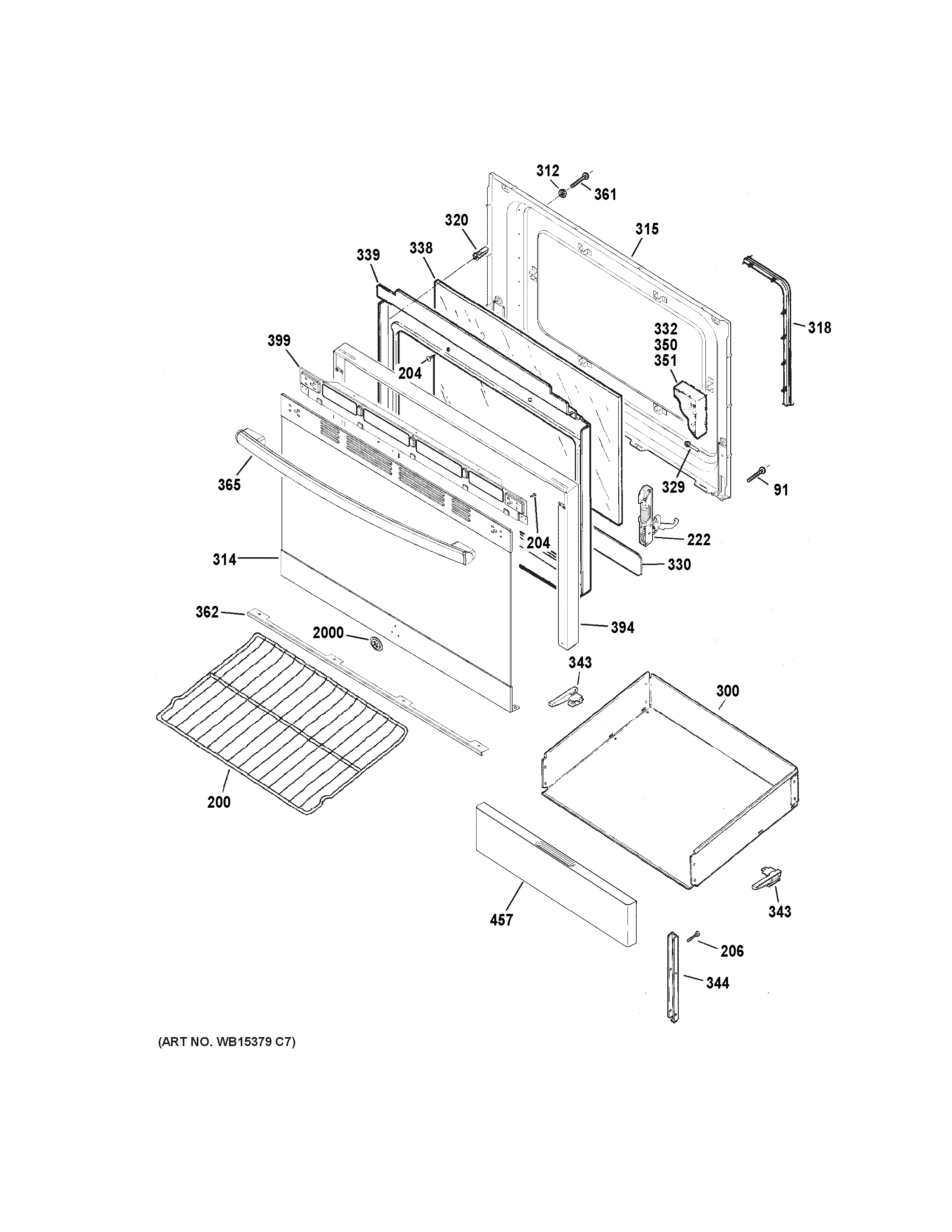

JBS360RM1SS DOOR & DRAWER PARTS

JBS360RM1SS DOOR & DRAWER PARTS

Written by

in

JBS360RM1SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21809 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X26696 GE Oven Glass Door Assembly
315WB56X20206 GE Range Door Panel
318WB35X29720 GE Oven Door Gasket
320WB02K10156 GE Oven Spacer
329WB01K10012 GE Oven Screw 8-22 PL 1HX
330GEN WB35K0022
332WB35K10146 GE Door Side Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K10033 GE Oven Insulation Guard
343WB02K10062 GE Oven Drawer Glide
343WB02K10061 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
350WB35K10147 GE Oven Bottom Insulation Door
351WB35K10148 GE Oven Door Top Insulation
361SCR 10-16 X 2 3/4
362WB07X20288 GE Oven Barrier Door
365HANDLE AND END CAP ASM
394WB07X20354 GE Oven Door Trim
399WB56X20809 GE Oven Backer Panel
457WB56X24650 GE Oven Drawer Panel
2000GE BADGE GRAY
