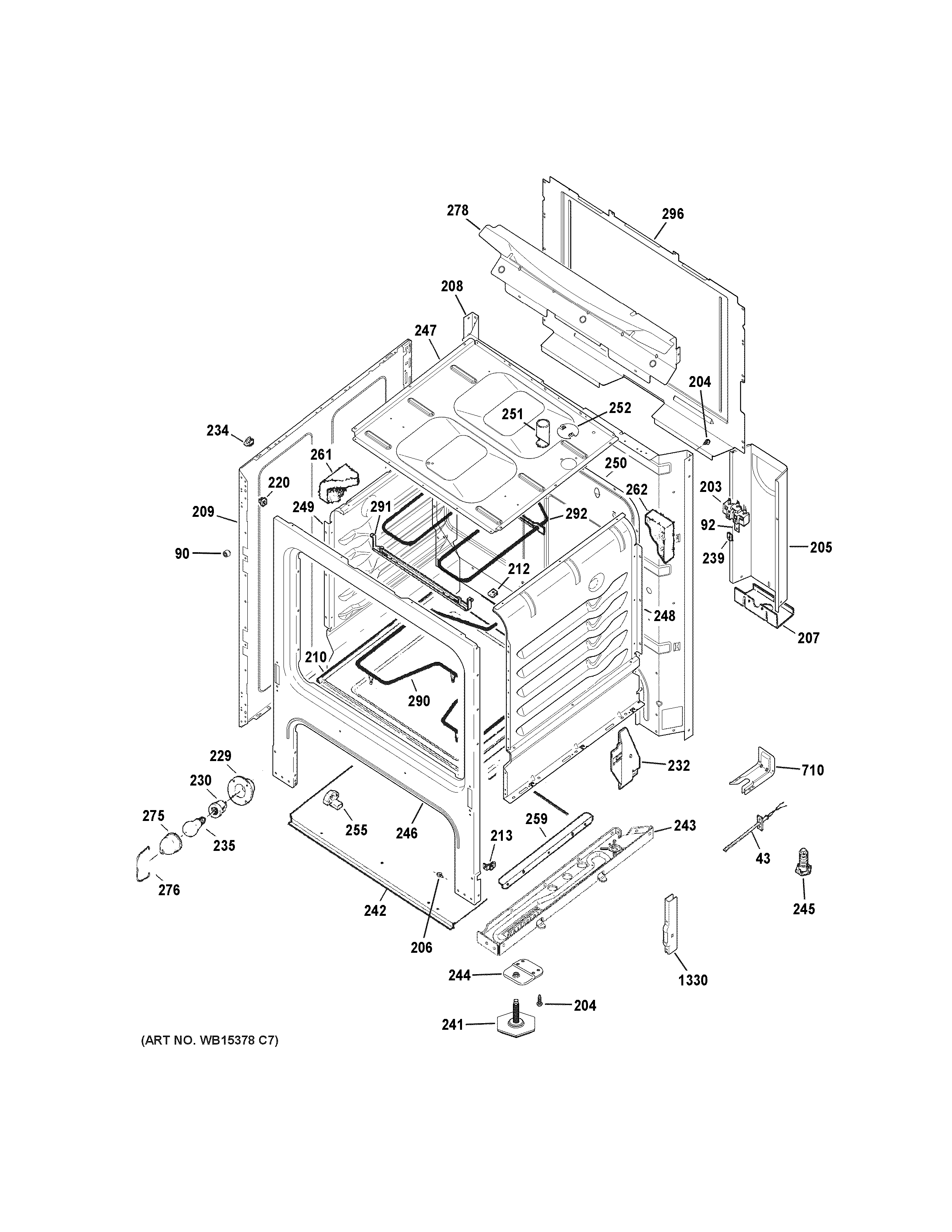

JBS360RM2SS BODY PARTS

JBS360RM2SS BODY PARTS

Written by

in

JBS360RM2SS BODY PARTS

Products

PositionProduct
43SENSOR ASM
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
203WB27X31509 GE Terminal Block Assembly
204WB1K5062 GE Oven Screw
205WB34X21584 GE Oven Guard Terminal
206WB01K10091 GE Oven Screw
207WB02K10029 GE Oven Mounting Terminal Bracket
208WB63K10273 GE Back
209WB56X29124 GE Oven Side Panel
210WB63K10006 GE Oven Bottom Assembly
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239PLATE GROUND
241WB02X29030 GE Range Leveling Leg
242GUARD INSULATION BOTTOM
243WB63K10232 GE Oven Support Base
243WB63K10233 GE Oven Support Base
244WB34X29134 GE Oven Base Bracket
245WB02K10182 GE Oven Leveling Leg
246WB63X21360 GE Frame Weld Assembly
247WB63K10021 GE Oven Top
248SIDE OVEN RT
249SIDE OVEN LF
250WB53K10007 GE Oven Back
251WB38K10002 GE Oven Vent Tube
252VENT COVER
255WB02K10158 GE Oven Drawer Support
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
278WB34X21602 GE Oven Divider Wiring
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X21585 GE Back Cover
710WB02X32405 GE Oven Anti-Tip Bracket Assembly
1330WB10X20220 GE Oven Receiver Hinge
