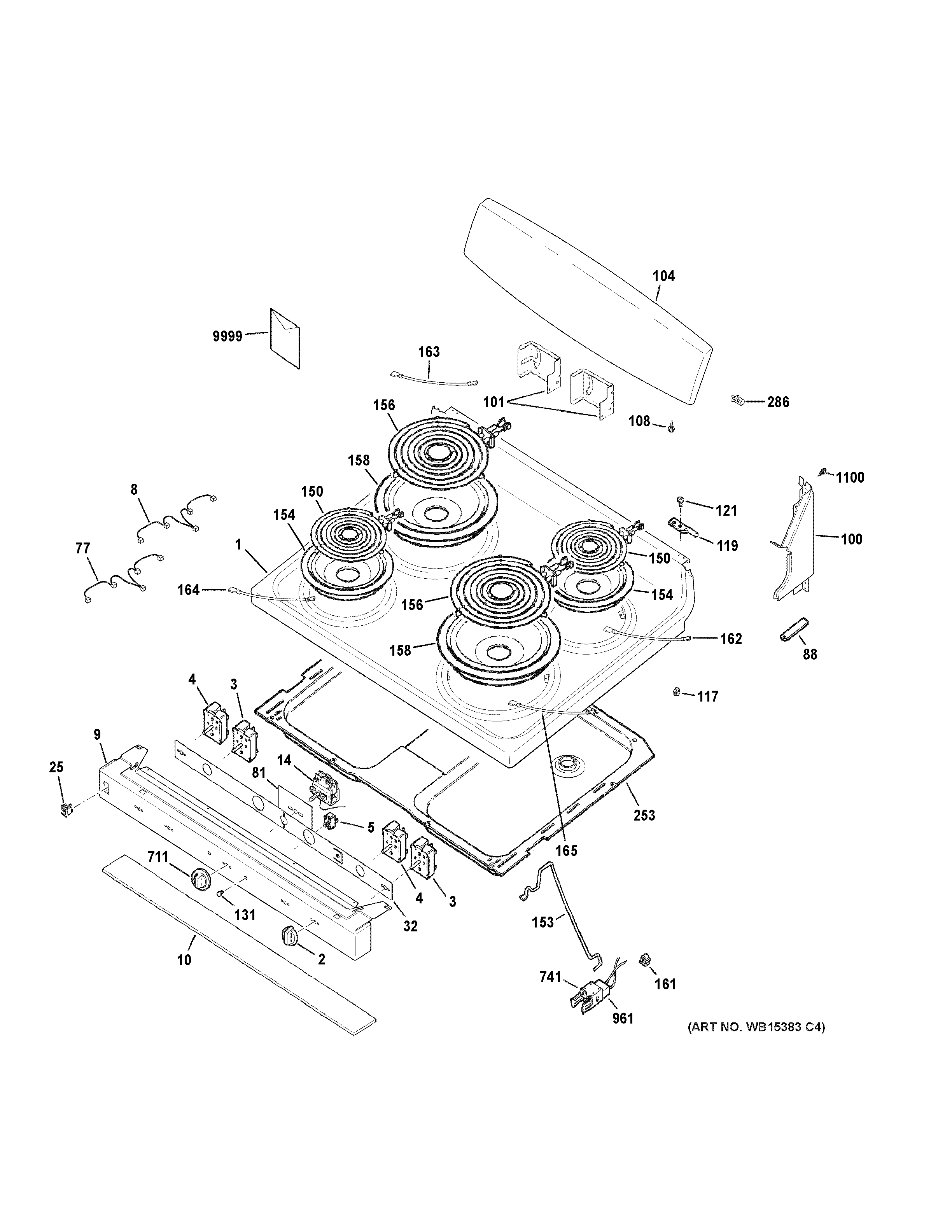

JBS460DM1BB CONTROL PANEL & COOKTOP

Written by

Products

Position	Product
1	WB62X21354 GE Range Top
2	WB03X21356 GE Oven Knob
4	SWICTH INFINITE
5	WB25K10010 GE Oven Light Indicator Pilot
8	WB18X31425 GE Lamp Pilot Harness
9	BLACK MANIFOLD PANEL
10	WB35X20648 GE Oven Insulation Burner Box
14	WB24X21192 GE Oven Electric Thermostat
25	WB24X20458 GE Range Rocker Switch
32	GEN WB34K10070
77	WB18X31427 GE Main Harness
81	CARTON COVER THERMOSTAT
88	GEN WB02K0062
100	WB07X20197 GE Range Left End Support
100	WB07X20194 GE Range Right End Support
101	WB37X20196 GE Cooktop Bracket
101	WB37X20193 GE Cooktop Bracket
104	WB36X21588 GE Oven Trim Control
108	WB1X536 GE Oven Screw
117	GEN WB02K0017
119	WB14K5 GE Oven Hinge Pin
121	WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
131	WB25K10009 GE Oven Lens
150	WB31X46067 GE 6" Surface Burner
153	WB02K10026 GE Oven Rod Support
154	WB31T10014 GE Oven 6-Inch Black Drip Bowl
156	WB31X46066 GE Surface Burner 8"
158	WB31T10015 8" BOWL BLACK REAR BUBBLE
161	CLIP WIRE
162	HARNESS SURFACE UNIT RR
163	HARNESS SURFACE UNIT LR
164	WB18X31520 GE Washer Surface Unit Left Harness
165	HARNESS SURFACE UNIT RF
253	WB64K10009 GE Oven Cooktop Box
286	WB02K10068 GE Wire Clip
711	WB03X21367 GE Oven Assembly Thermostat Knob
741	WB02K10133 GE Oven Receptacle Clip
961	WB17T10006 GE Oven Burner Receptacle Block
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
9999	PM MANUAL MINI & WD ASM
9999	PM INSTALL INSTRUCTIONS
9999	WB49X21392 GE Oven Hinge Service Kit
9999	PM GAS QUICK GUIDE
9999	PM INSTALL INSTRUCTIONS
