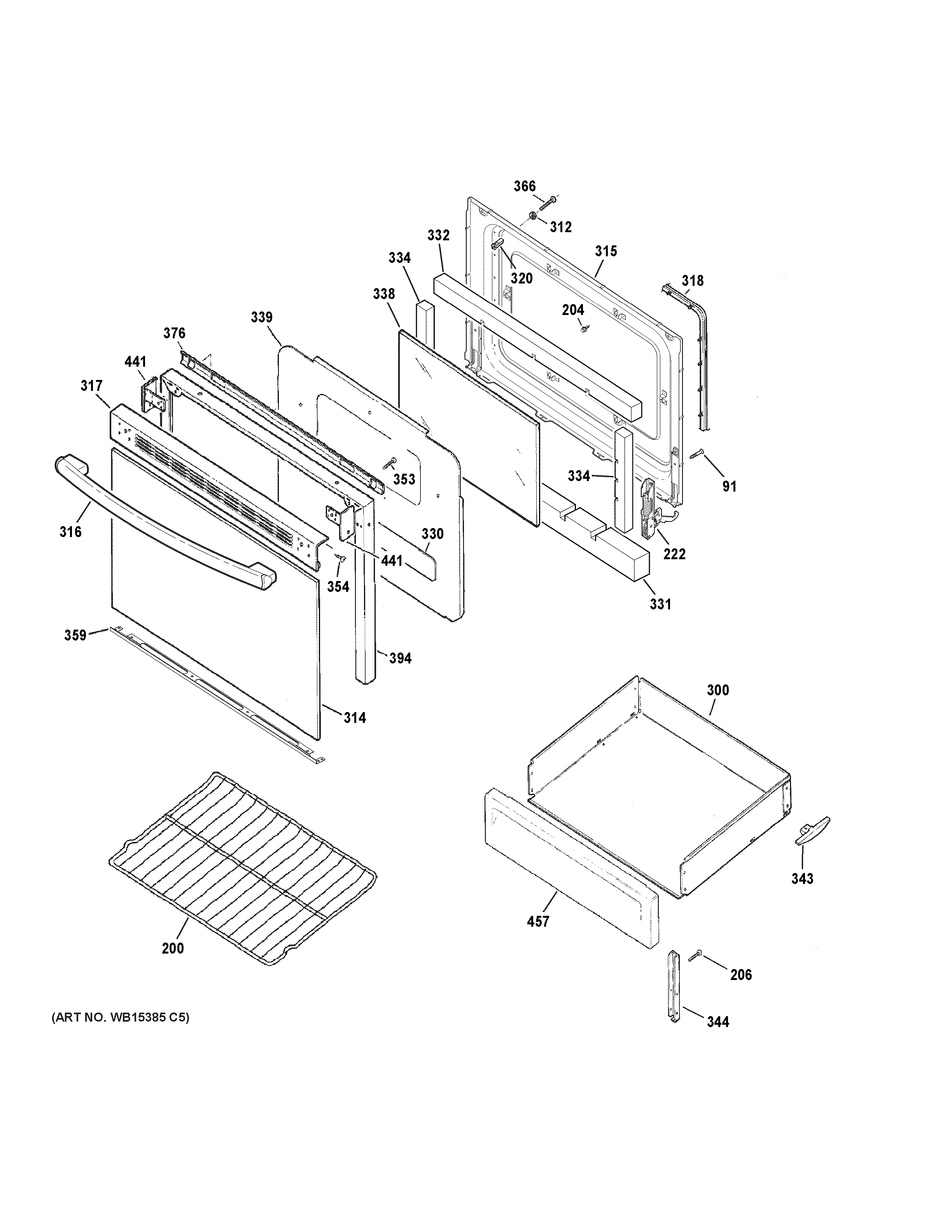

JBS460DM1BB DOOR & DRAWER PARTS

JBS460DM1BB DOOR & DRAWER PARTS

Written by

in

JBS460DM1BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21809 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X21358 GE Oven Glass Door
315WB56X20206 GE Range Door Panel
316WB15T10213 GE Oven Handle LE-BK
317WB7K403 GE Oven Top Door Trim
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
330WB35K10041 GE Oven Reflector
331WB35K10110 GE Oven Bottom Door Insulation
332WB35K10111 GE Oven Door Insulation Up
334WB35K10109 GE Oven Side Door Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
343WB2K68 GE Oven Drawer Glide
344WB02X24742 GE Oven Drawer Bracket
353WB1K62 GE Oven Door Assembly
354WB01K10012 GE Oven Screw 8-22 PL 1HX
359WB07K10232 GE Oven Bottom Trim Assembly
366WB02X32438 GE Door Handle Screw
376WB35K23 GE Heater Deflector
394WB07X20355 GE Door Trim
441GEN WB07X7182
441GEN WB07X7181
457WB56X24731 GE Drawer Panel
