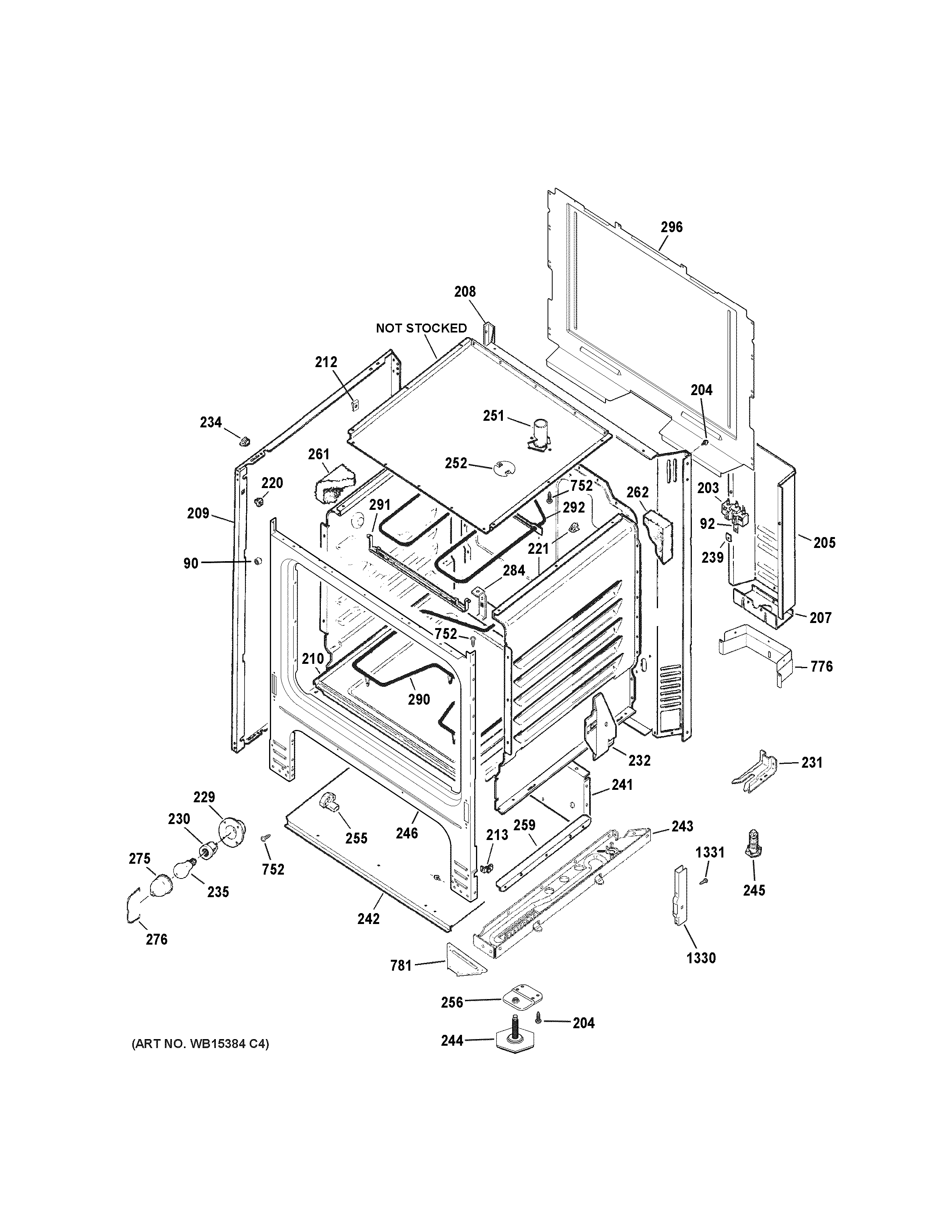

JBS460DM1WW BODY PARTS

JBS460DM1WW BODY PARTS

Written by

in

JBS460DM1WW BODY PARTS

Products

PositionProduct
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
205WB34X21584 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208RANGE BACK
209WB56X29122 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
212WB1K2 GE Oven Speednut
213WB1K3 GE Oven Speed Nut
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02X27862 GE Oven Anti-Tip Bracket Assembly
232GEN WB34K0004
232GEN WB34K0003
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
239PLATE GROUND
241PANEL REAR BROIL
242GUARD INSULATION BOTTOM
243WB63K10233 GE Oven Support Base
243WB63K10232 GE Oven Support Base
244WB02X29030 GE Range Leveling Leg
245WB02K10182 GE Oven Leveling Leg
246FRAME WELD ASM
251WB38K10006 GE Range Vent Tube
252VENT COVER
255WB02K10163 GE Oven Drawer Support
256WB34X29134 GE Oven Base Bracket
259WB39K16 GE Oven Drawer Rail
261WB35K10108 GE Oven Insulation Wrap
262WB35K10107 GE Back Oven Insulation
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
284GEN WB02K10055
290WB30X46987 GE Bake Element
291WB02K10028 GE Oven Broil Support
292WB30X46986 GE Broil Element
296WB34X21585 GE Back Cover
752WZ4X345D GE Screw Package 12 C92
776WB34K10054 GE Terminal Comp Guard
781GEN WB02K10054
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
