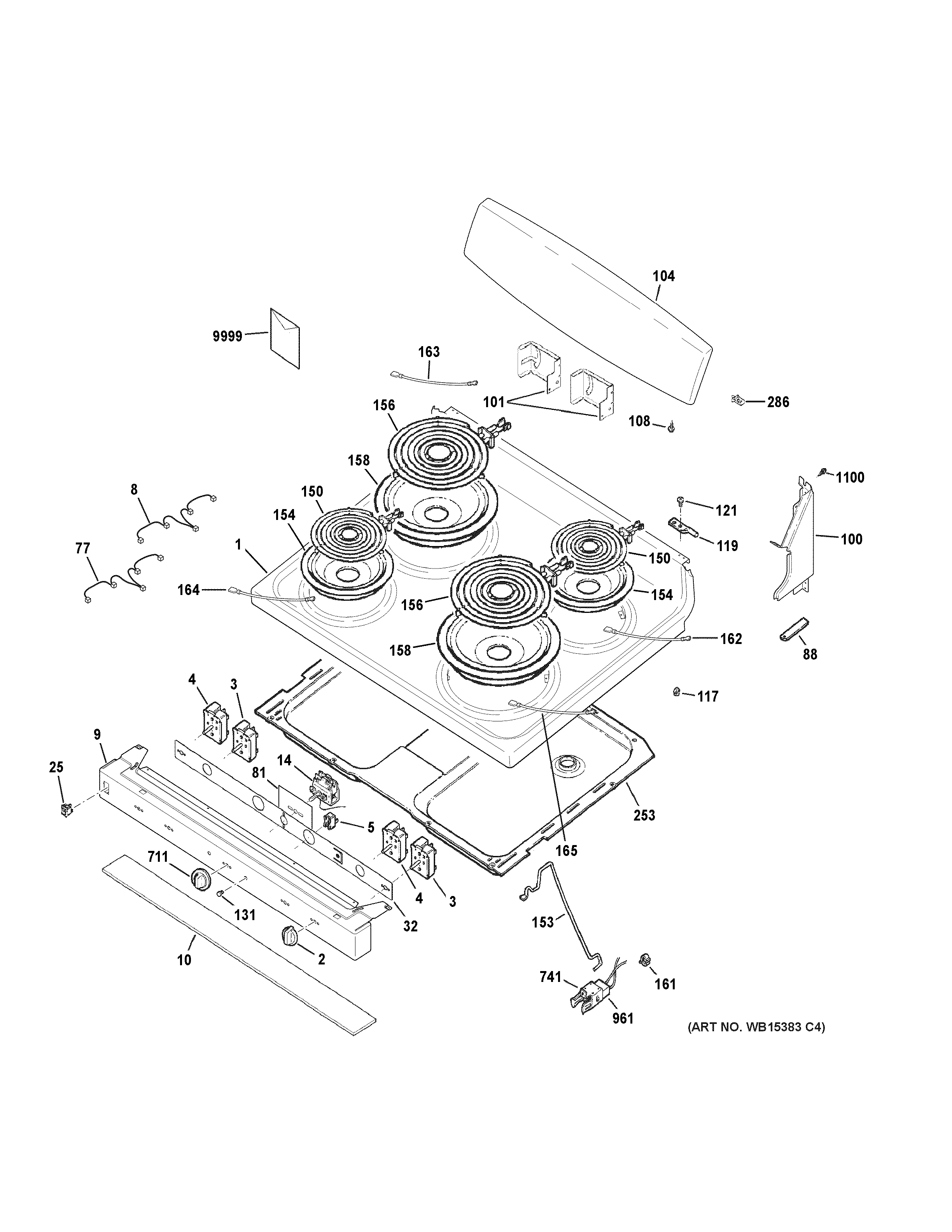

JBS460DM1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB62X21353 GE Range Top
2KNOB VALVE
4SWICTH INFINITE
5WB25K10010 GE Oven Light Indicator Pilot
8WB18X31425 GE Lamp Pilot Harness
9WB36X31446 GE Oven Manifold Panel
10WB35X20648 GE Oven Insulation Burner Box
14WB24X21192 GE Oven Electric Thermostat
25WB24X20459 GE Oven Rocker Switch Sealed
32GEN WB34K10070
77WB18X31427 GE Main Harness
81CARTON COVER THERMOSTAT
88GEN WB02K0062
100WB07X20277 GE Range Right End Support
100END SUPPORT LEFT
101WB37X20196 GE Cooktop Bracket
101WB37X20193 GE Cooktop Bracket
104WB36X21594 GE Oven Control Trim
108WB1X536 GE Oven Screw
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
131WB25K10009 GE Oven Lens
150WB31X46067 GE 6" Surface Burner
153WB02K10026 GE Oven Rod Support
154BOWL BURNER 6 (CH)
156WB31X46066 GE Surface Burner 8"
158BOWL BURNER 8 (CH)
161CLIP WIRE
162HARNESS SURFACE UNIT RR
163HARNESS SURFACE UNIT LR
164WB18X31520 GE Washer Surface Unit Left Harness
165HARNESS SURFACE UNIT RF
253WB64K10009 GE Oven Cooktop Box
286WB02K10068 GE Wire Clip
711WB03X21365 GE Oven Knob Thermostat Assembly
741WB02K10133 GE Oven Receptacle Clip
961WB17T10006 GE Oven Burner Receptacle Block
1100WB01T10016 GE Oven Screw 8-18 AB Hex
9999WB49X21392 GE Oven Hinge Service Kit
9999PM GAS QUICK GUIDE
9999PM INSTALL INSTRUCTIONS
9999PM INSTALL INSTRUCTIONS
9999PM MANUAL MINI & WD ASM
