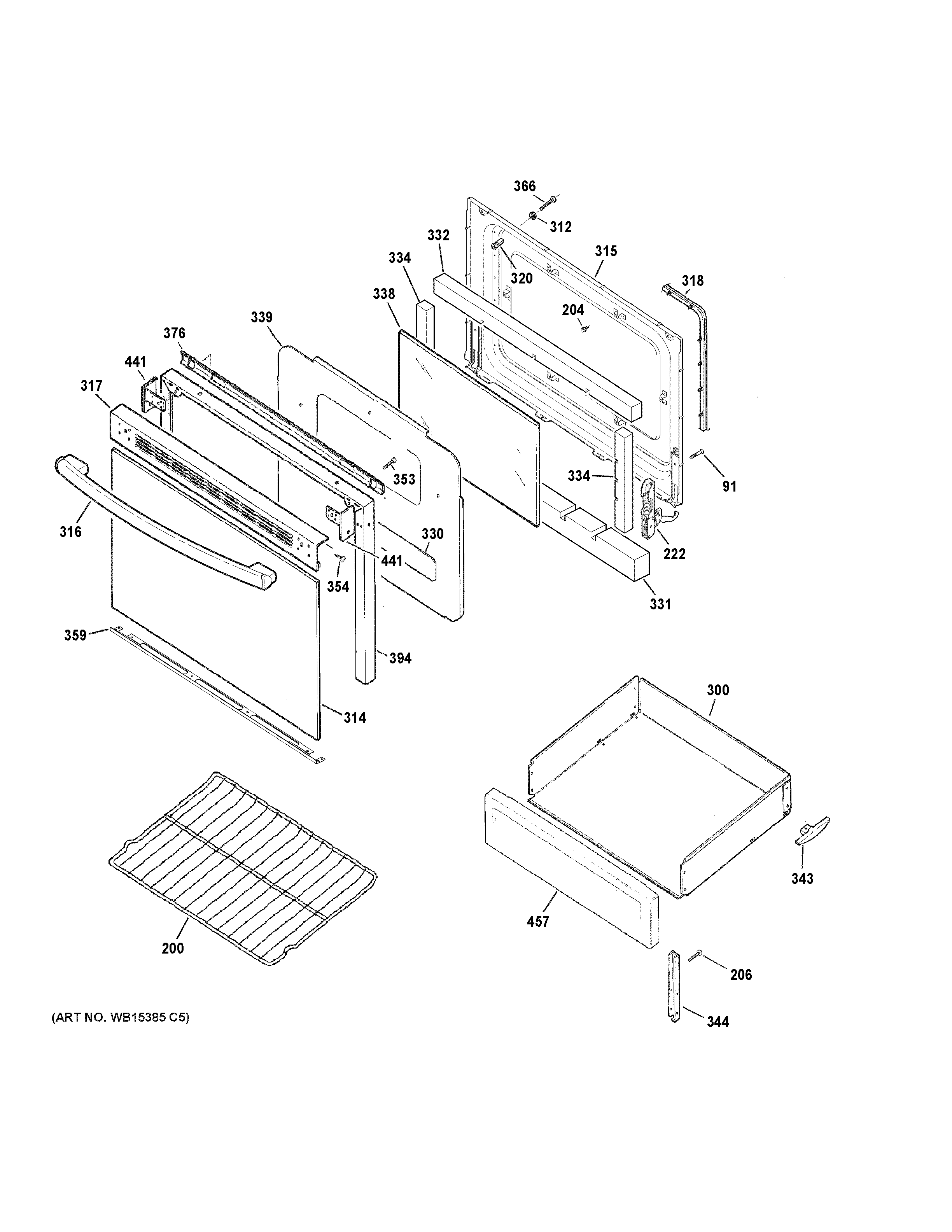

JBS460DM1WW DOOR & DRAWER PARTS

JBS460DM1WW DOOR & DRAWER PARTS

Written by

in

JBS460DM1WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
206WB01K10091 GE Oven Screw
222WB10X21809 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X21369 GE Oven Glass Door
315WB56X20206 GE Range Door Panel
316WB15T10214 GE Oven Handle
317GEN WB07K0400
318WB35X29720 GE Oven Door Gasket
320WB02K10161 GE Oven Spacer
330WB35K10041 GE Oven Reflector
331WB35K10110 GE Oven Bottom Door Insulation
332WB35K10111 GE Oven Door Insulation Up
334WB35K10109 GE Oven Side Door Insulation
338GEN WB56K0014
339WB56K10033 GE Oven Insulation Guard
343WB2K68 GE Oven Drawer Glide
344WB02X24742 GE Oven Drawer Bracket
353WB1K66 GE Screw
354WB01K10012 GE Oven Screw 8-22 PL 1HX
359TRIM BOTTOM ASM
366WB02X32438 GE Door Handle Screw
376WB35K23 GE Heater Deflector
394WB07X20359 GE Door Trim
441WB7X7188 GE Oven Left Endcap
441GEN WB07X7187
457WB56X24797 GE Oven Drawer Panel
