JBS62RW1SS CONTROL PANEL & COOKTOP

JBS62RW1SS CONTROL PANEL & COOKTOP

Written by

in

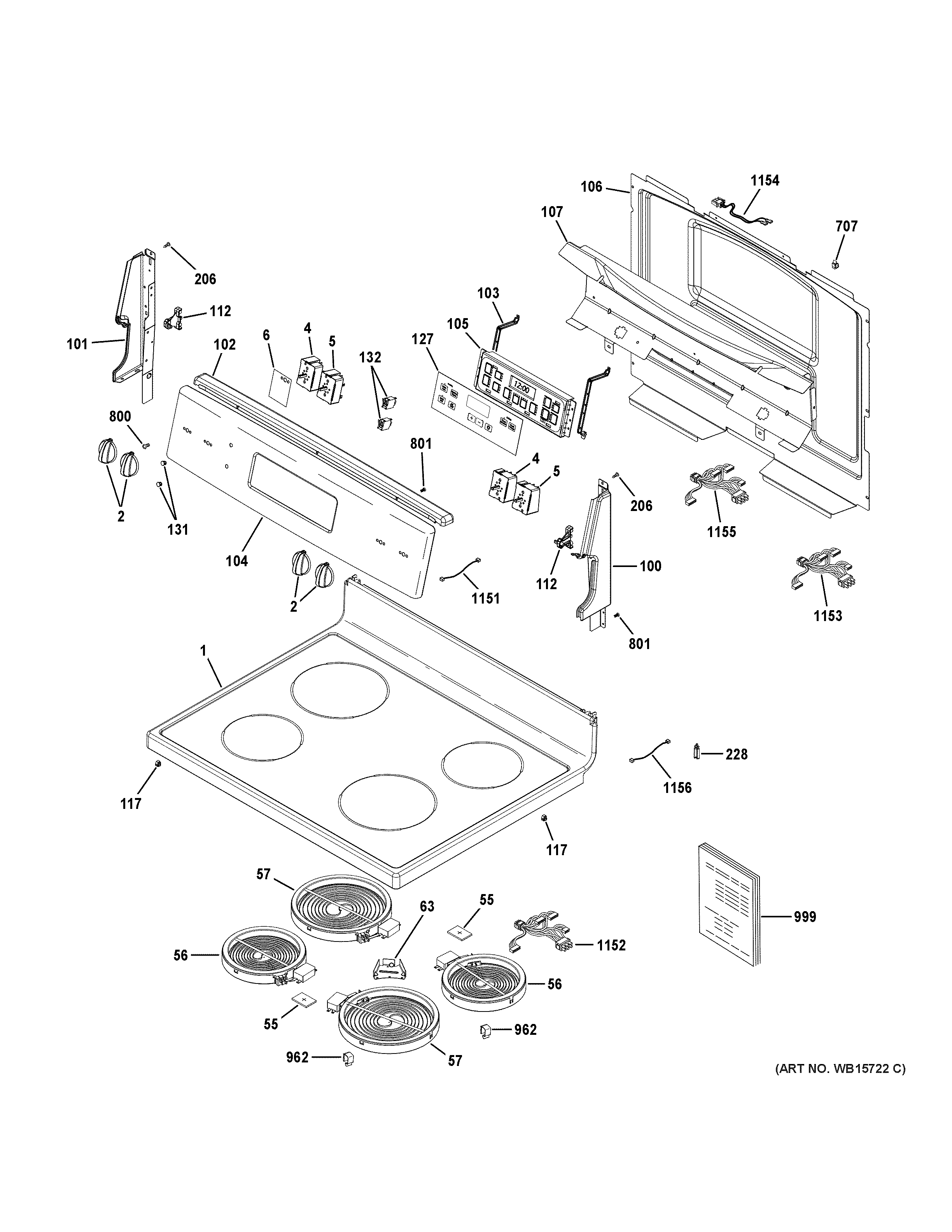

JBS62RW1SS CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB57K10142 GE Range Glass Top Assembly
2WB03K10301 GE Oven Knob
4WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB24T10029 GE Oven Infinite Burner Switch
6COVER THERMOSTAT
55WB02X35325 GE Radiant Element Pad
56WB30X26460 GE Oven Halogen Element 6
57WB30X26465 GE Oven 8" Halogen Element
63WB02T10041 GE Oven Radiant Element Bracket
100BLACK END SUPPORT RH
101WB07X31560 GE Left Black End Support
102WB56X26681 GE Oven Top Backguard Complement
103WB02X24845 GE Range Control Bracket
104STAINLESS STEEL BACKGUARD RANGE
105CONTROL OVEN TO9 (ELEC)
106COVER BACK
107DIVIDER WIRING
112WB14K10003 GE Range Top Hinge
117GEN WB02K0017
127WB07X21373 GE Oven Overlay T09
131WB25T10041 GE Oven Lens
132WB25K10002 GE Stove Oven Cooktop Pilot Lamp
206WB01K10091 GE Oven Screw
228GEN WB02X7066
707WB02K10267 GE Wire Clip
800WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
801WB01X31119 GE Screw 8-18
962WB09X40389 GE Radiant Element Spring
999PRINTED AND ONLINEMINI MANUAL AND WIRING
999PRINTED AND ONLINEQUICK OWNERS MANUAL
999PRINTED AND ONLINEINSTALL INSTRUCTIONS
1151WB18X31424 GE Ground Harness
1152HARNESS WIRE INFINITE
1153HARNESS COOKTOP
1154WB18X31489 GE Control Harness
1155HARNESS MAIN
1156HARNESS GROUND
