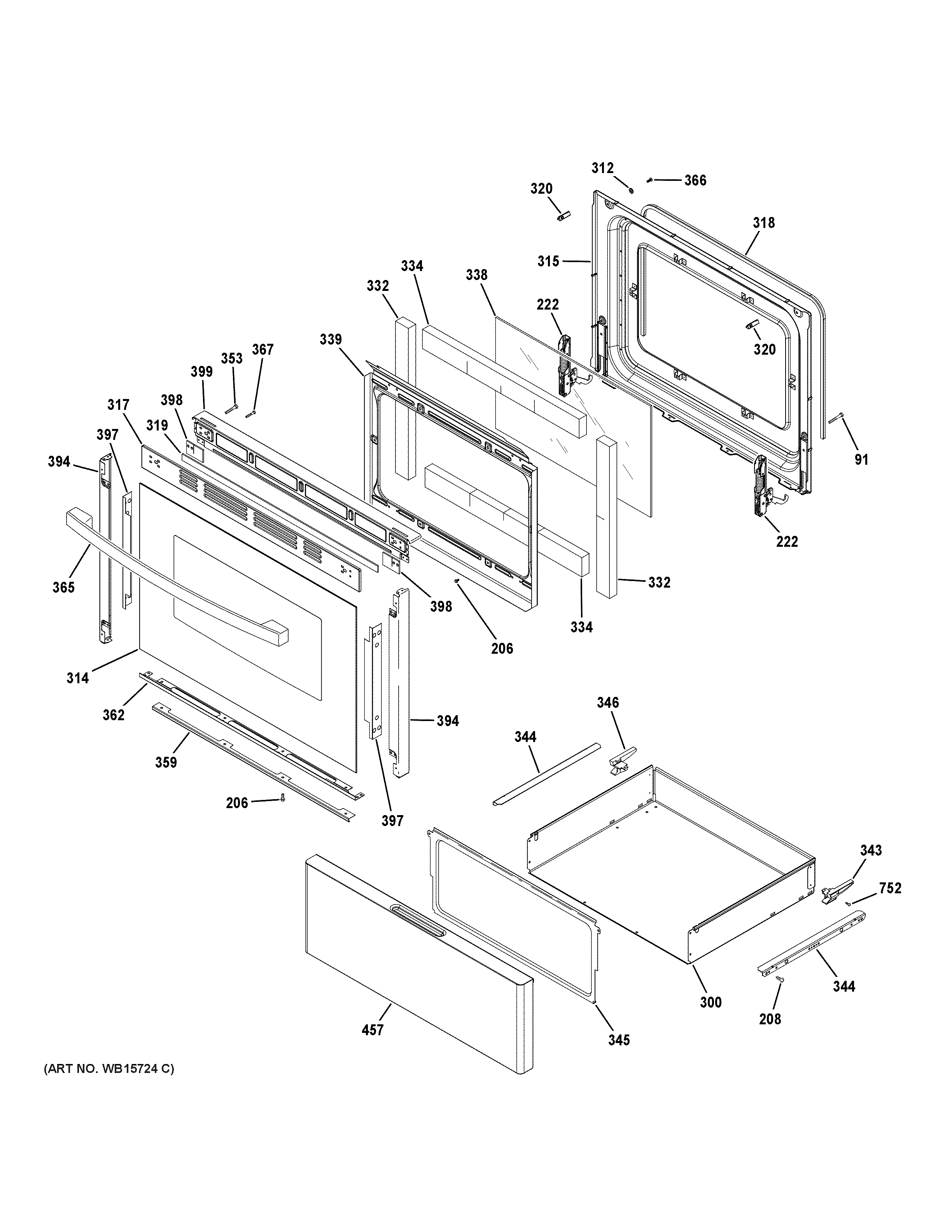

JBS62RW1SS DOOR & DRAWER PARTS

JBS62RW1SS DOOR & DRAWER PARTS

Written by

in

JBS62RW1SS DOOR & DRAWER PARTS

Products

PositionProduct
91SCREW & WASHER ASM
206WB01K10091 GE Oven Screw
208WB63K10273 GE Back
222WB10X21809 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
312WB02X32440 GE Washer Contoured
314WB56X25503 GE Oven Glass Door
315WB56X20206 GE Range Door Panel
317WB07X24847 GE Oven Vent Trim
318WB35X29720 GE Oven Door Gasket
319INSULATION FRONT
320WB02K10156 GE Oven Spacer
332WB35K10109 GE Oven Side Door Insulation
334WB35K10110 GE Oven Bottom Door Insulation
338GEN WB56K0014
339WB56X43406 GE Insulation Guard
343WB02K10061 GE Oven Drawer Glide
344WB02K10398 GE Range Mounting Bracket Drawer
345WB34K10034 GE Oven Drawer Cover
346WB02K10062 GE Oven Drawer Glide
353SCREW
359WB07K10232 GE Oven Bottom Trim Assembly
362WB07X20288 GE Oven Barrier Door
365WB15X35073 GE Stainless Steel Handle
366WB01X37565 GE Screw 10-32
367SCR 8-18 B HXW 1/4S UH
394BLACK TRIM POST
397VENT ALUMINUM FOIL
398INSULATION SIDE DOOR
399WB07X43290 GE Trim Top
457WB56X24650 GE Oven Drawer Panel
752WB01X26995 GE Oven Screw 8-18 AB X 5/16
