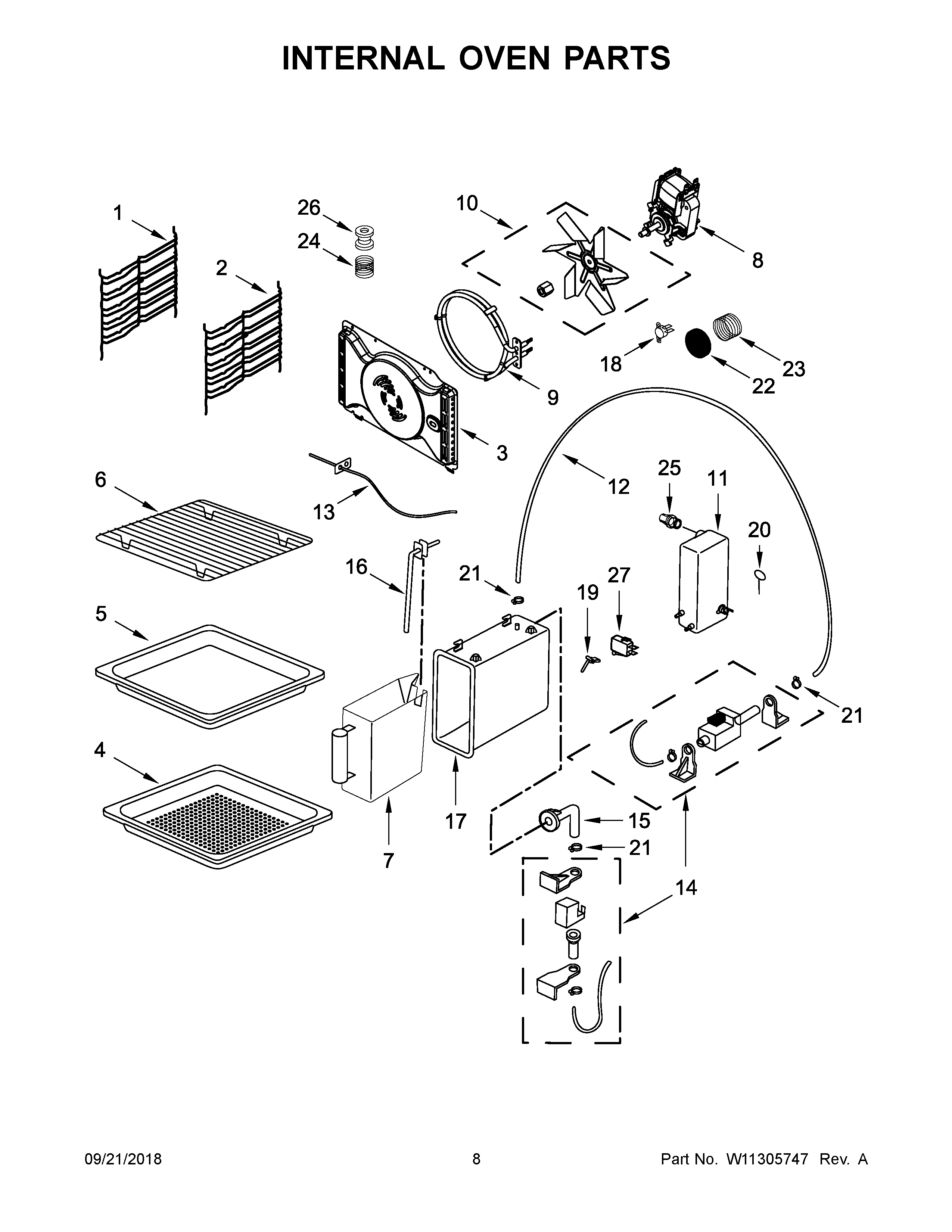

JBS7524BS1 05 – INTERNAL OVEN PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, MAIN
NIMAY W10591611
NIMAY W10577833
1MAY W10586511
2MAY W10586521
3MAY W10586466
4MAY W10577816
5MAY W10577820
6MAY W10577824
7RESERVOIR, WATER CONTAINER
8MOTOR, CONVECTION
9HEATER, CONVECTION ELEMENT
10MAY W10586917
11MAY W10587532
12MAY W10587812
13SENSOR, CAVITY TEMPERATURE
14MAY W10586915
15MAY W10586491
16MAY W10587540
17MAY W10586494
18THERMOSTAT (145C)
19MAY W10586492
20MAY W10587533
21MAY W10587851
22MAY W10588571
23MAY W10587877
24MAY W10587880
25MAY W10588572
26MAY W10587885
27MAY W10587790
