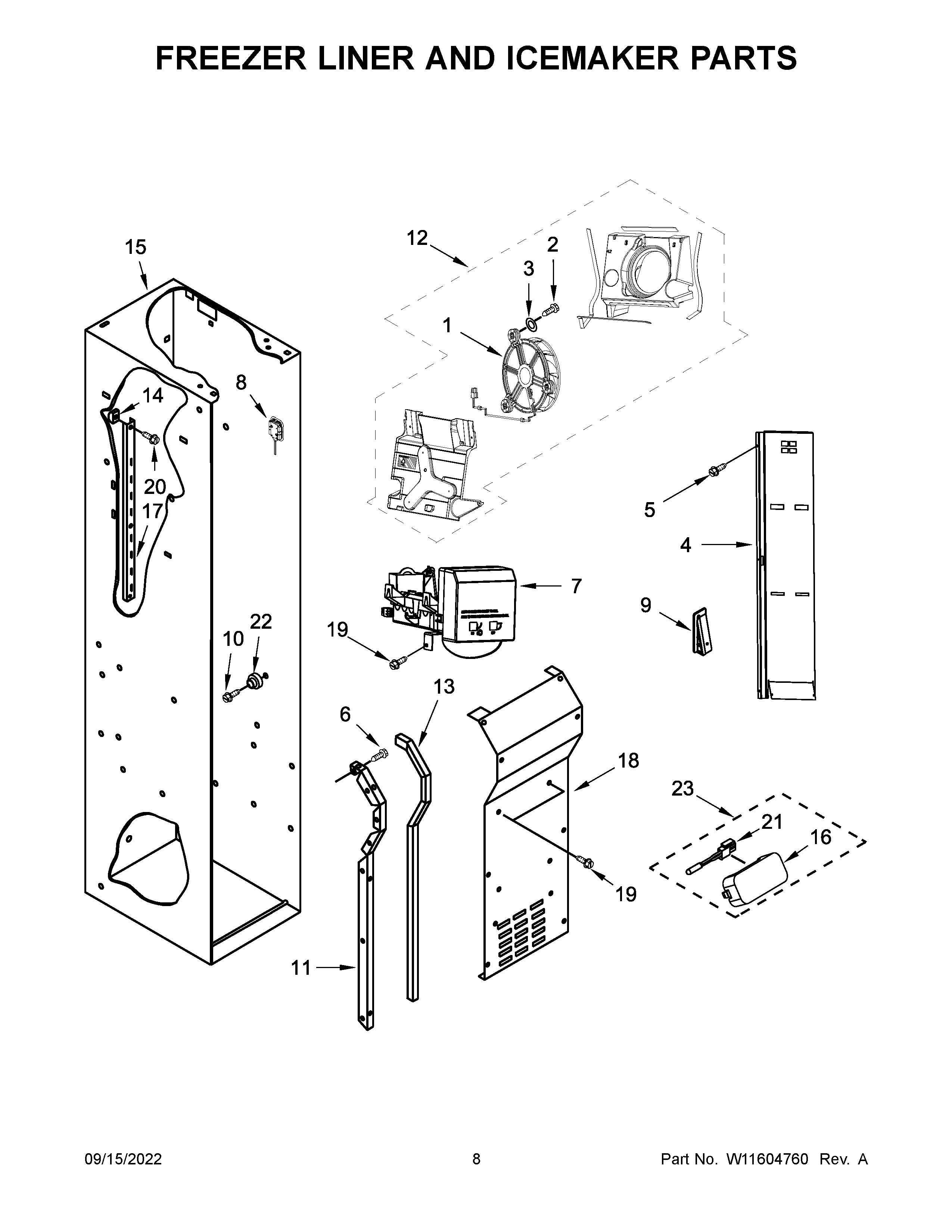

JBSFS42NMX00 05 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1W11618271 Whirlpool Evaporator Motor
2WP488729 Whirlpool Refrigerator Door Screw
3WASHER
4DUCT, AIR
5WP489464 Whirlpool Refrigerator Screw
6W11624204 Whirlpool Screw
7W11744512 Whirlpool Ice Maker Assembly
8W11484836 Whirlpool Refrigerator Module
9WEDGE, AIR DUCT (RIGHT HAND)
9AWEDGE, AIR DUCT (LEFT HAND)
10SCREW (BLACK)
11RAIL, EVAPORATOR COVER (LEFT HAND)
11ARAIL, EVAPORATOR COVER (RIGHT HAND)
12W11631623 Whirlpool Evaporator Motor
13GASKET, EVAPORATOR COVER
142259445 Whirlpool Support Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11235125 Whirlpool Cover
17LADDER, SHELF
18COVER, EVAPORATOR
19W10678210 Whirlpool Screw
20SCREW
21WP2188820 Whirlpool Refrigerator Thermistor
22ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23COVER
