JBSFS42NMX00 07 – FREEZER SHELF PARTS

JBSFS42NMX00 07 – FREEZER SHELF PARTS

Written by

in

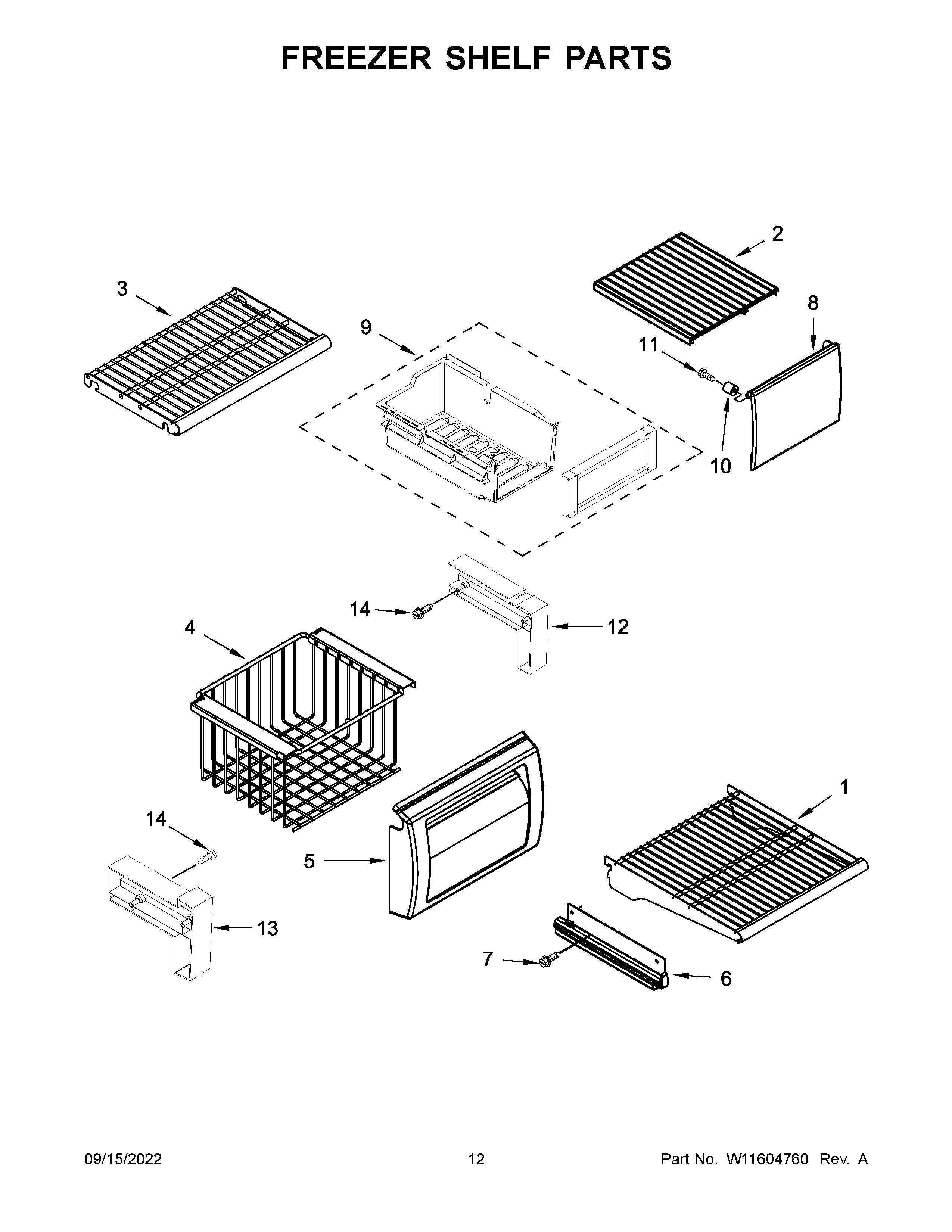

JBSFS42NMX00 07 – FREEZER SHELF PARTS

Products

PositionProduct
1SHELF, FC WIRE
2COVER, SHELF
3SHELF, FIXED
4BASKET, FREEZER
5FRONT, FREEZER BASKET
6WP2259318 Whirlpool Refrigerator Slide
6A2259317 Whirlpool Refrigerator Slide
7WP8533928 Whirlpool Refrigerator Screw
8W11452421 Whirlpool Compartment Front
9ASSEMBLY, ICE BUCKET
10SPACER, ICE DOOR
11SCREW (BLACK)
12SPACER, ICE
13SPACER, BASKET
14WP3400886 Whirlpool Refrigerator Screw
