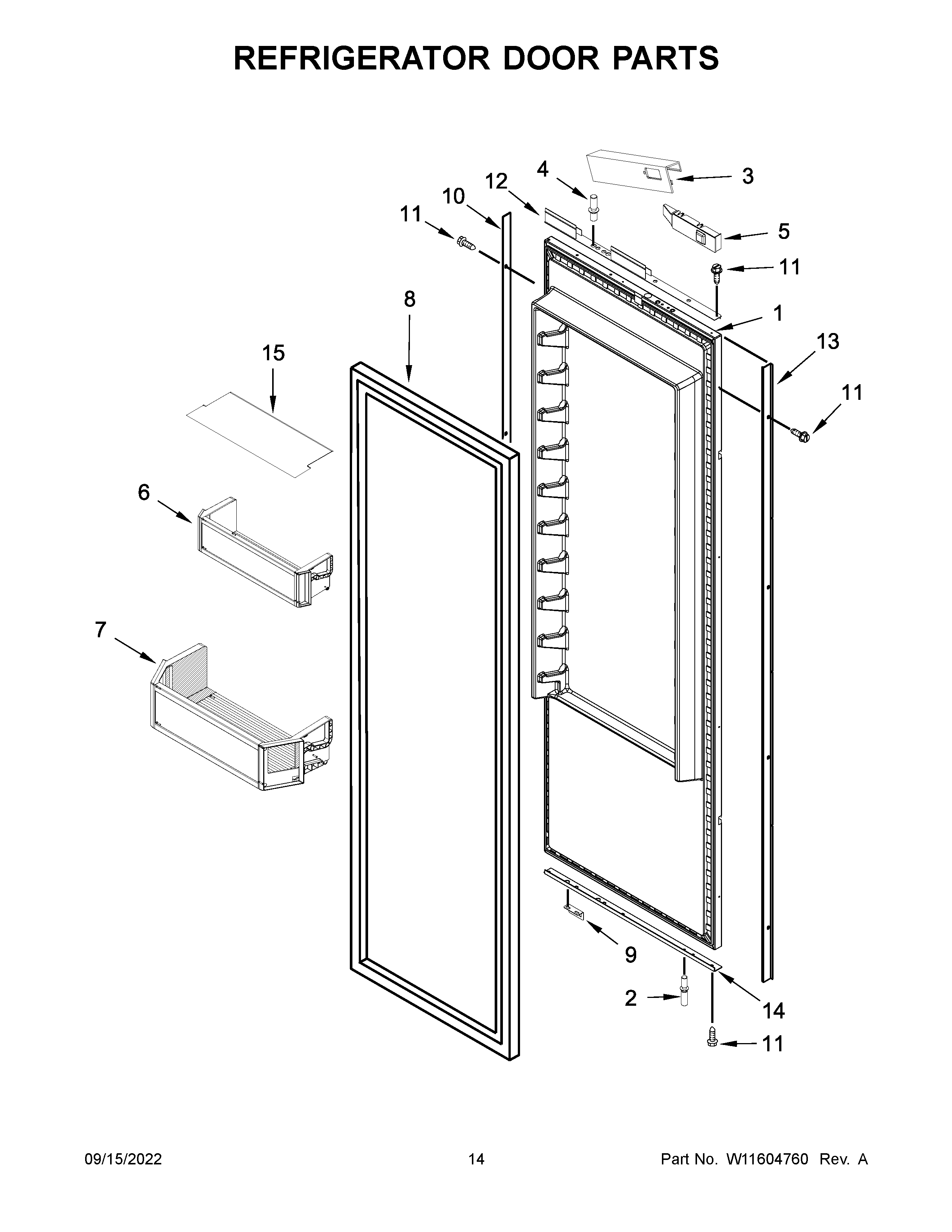

JBSFS42NMX00 08 – REFRIGERATOR DOOR PARTS

JBSFS42NMX00 08 – REFRIGERATOR DOOR PARTS

Written by

in

JBSFS42NMX00 08 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1W10800805 Whirlpool Refrigerator Door Assembly
2PIN-HINGE
3W10775725 Whirlpool Refrigerator Cover Trim
4W10234194 Whirlpool Refrigerator Hinge Pin
5W10606813 Whirlpool Refrigerator Cover
6BIN, SHALLOW DOOR
7BIN, GALLON DOOR
8W10800817 Whirlpool Refrigerator FIP Gasket
9W10606841 Whirlpool Refrigerator Bracket
10W10749614 Whirlpool Door Trim
11W10851443 Whirlpool Refrigerator Screw
12TRIM, DOOR (TOP) (CHARCOAL)
13W10755284 Whirlpool Refrigerator Door Trim
14TRIM, DOOR (BOTTOM) (CHARCOAL)
15MAT, DOOR BIN (SHALLOW)
15AMAT, DOOR BIN (GALLON)
