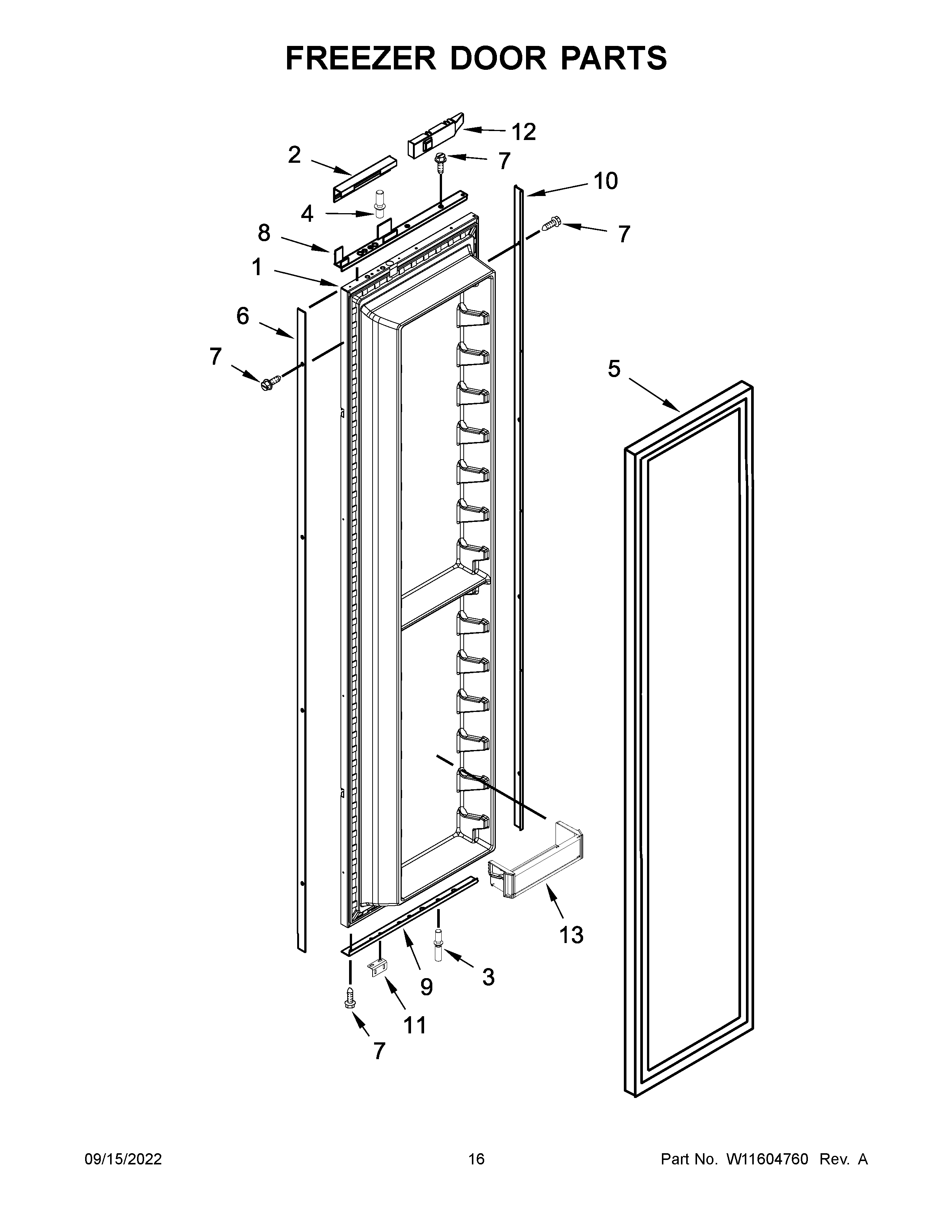

JBSFS42NMX00 09 – FREEZER DOOR PARTS

JBSFS42NMX00 09 – FREEZER DOOR PARTS

Written by

in

JBSFS42NMX00 09 – FREEZER DOOR PARTS

Products

PositionProduct
1W11632931 Whirlpool Door Service Kit
2W10775727 Whirlpool Refrigerator Cover Trim
3PIN-HINGE
4W10234194 Whirlpool Refrigerator Hinge Pin
5W10800809 Whirlpool Refrigerator FIP Gasket
6W10749306 Whirlpool Refrigerator Door Trim Assembly
7W10851443 Whirlpool Refrigerator Screw
8TRIM, TOP DOOR (CHARCOAL)
9TRIM, BOTTOM DOOR (CHARCOAL)
10W10749614 Whirlpool Door Trim
11W10606841 Whirlpool Refrigerator Bracket
12W10606813 Whirlpool Refrigerator Cover
13W11450392 Whirlpool Bin Containment
