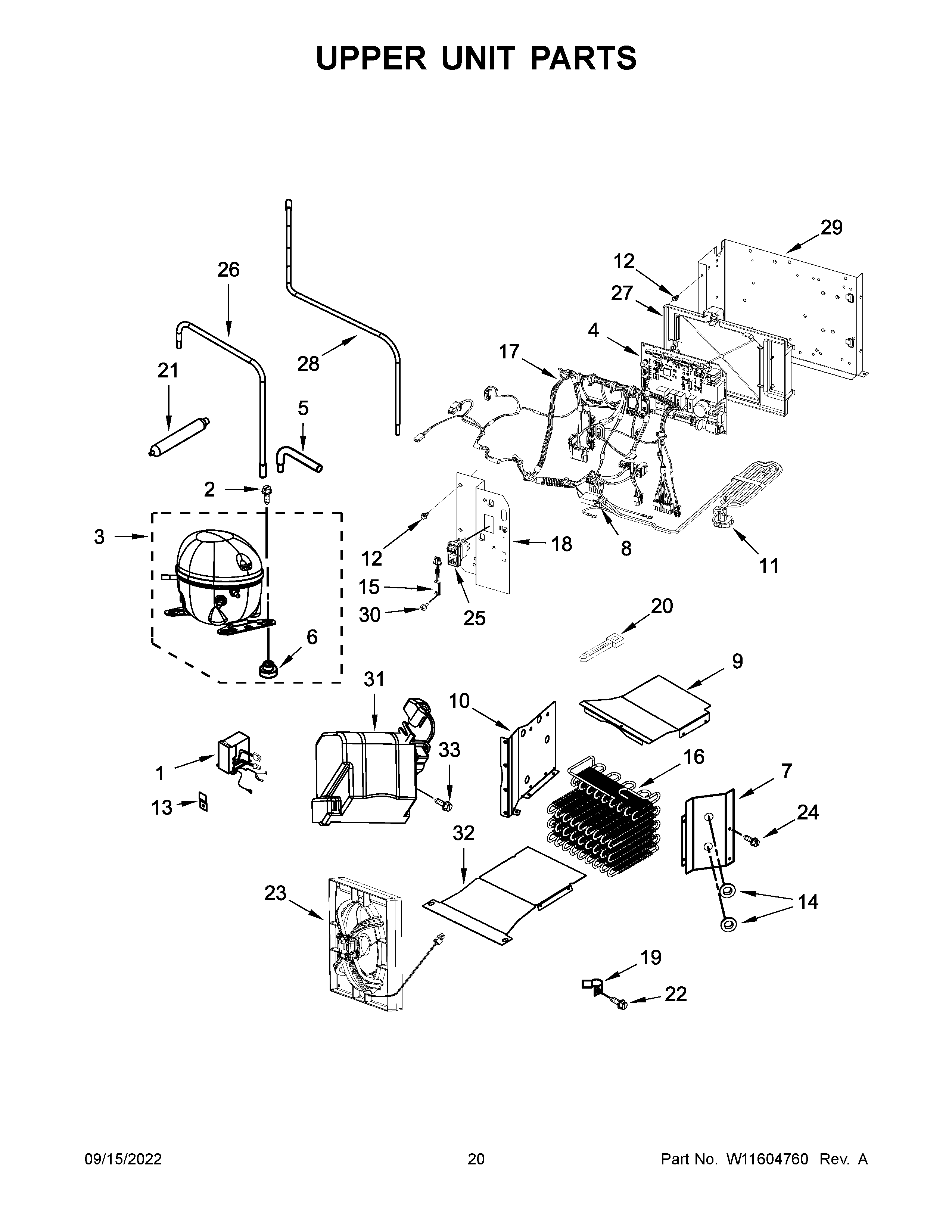

JBSFS42NMX00 11 – UPPER UNIT PARTSadmin2025-04-26T11:00:11+00:00JBSFS42NMX00 11 – UPPER UNIT PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1 | INVRTR-BOX |
| 2 | 876811 Whirlpool Grommet |
| 3C | W11504416 Whirlpool Refrigerator Coupler |
| 3A | W11504415 Whirlpool Refrigerator Coupler |
| 3 | W11557671 Whirlpool Refrigerator Compressor |
| 3B | W11504431 Whirlpool Microwave Coupler |
| 4 | CNTRL-ELEC |
| 5 | TUBE, PROCESS |
| 6 | W11661108 Whirlpool Grommet |
| 7 | SUPPORT, CONDENSER (RIGHT HAND) |
| 8 | 2310195 Whirlpool Refrigerator Wire Jumper |
| 9 | COVER, CONDENSER SUPPORT |
| 10 | SUPPORT, CONDENSER (LEFT HAND) |
| 11 | 2310196 Whirlpool Refrigerator Power Cord |
| 12 | WP965173 Whirlpool Dishwasher Screw |
| 13 | 2256328 Whirlpool Bracket Assembly |
| 14 | GROMMET |
| 15 | W11627456 Whirlpool Sensor |
| 16 | CONDENSER (ALSO ORDER THE FOLLOWING LOKRING PARTS) |
| 17 | ASSEMBLY, UNIT WIRE HARNESS |
| 18 | BRACKET, CONTROL ASSEMBLY |
| 19 | W11234470 Whirlpool Refrigerator Clamp |
| 20 | WPW10339879 Whirlpool Wire Tie |
| 21A | W11504445 Whirlpool Refrigerator Coupler |
| 21 | W11109499 Whirlpool Refrigerator Tube |
| 21B | W11504432 Whirlpool Refrigerator Coupler |
| 22 | WP489128 Whirlpool Refrigerator Screw |
| 23 | W11623099 Whirlpool Condenser Motor |
| 24 | WP489069 Whirlpool Compactor Screw |
| 25 | SWITCH, POWER DISCONNECT |
| 26 | TUBE, DRIER TRANSITION |
| 27 | HOUSING, CONTROL BOARD |
| 28 | TUBE, HEAT LOOP TRANSITION |
| 29 | W10550831 Whirlpool Refrigerator Housing |
| 30 | SCREW |
| 31 | W11247667 Whirlpool Refrigerator Cover |
| 32 | WPL W11443119 |
| 33 | WP9741232 Whirlpool Dishwasher Screw |
