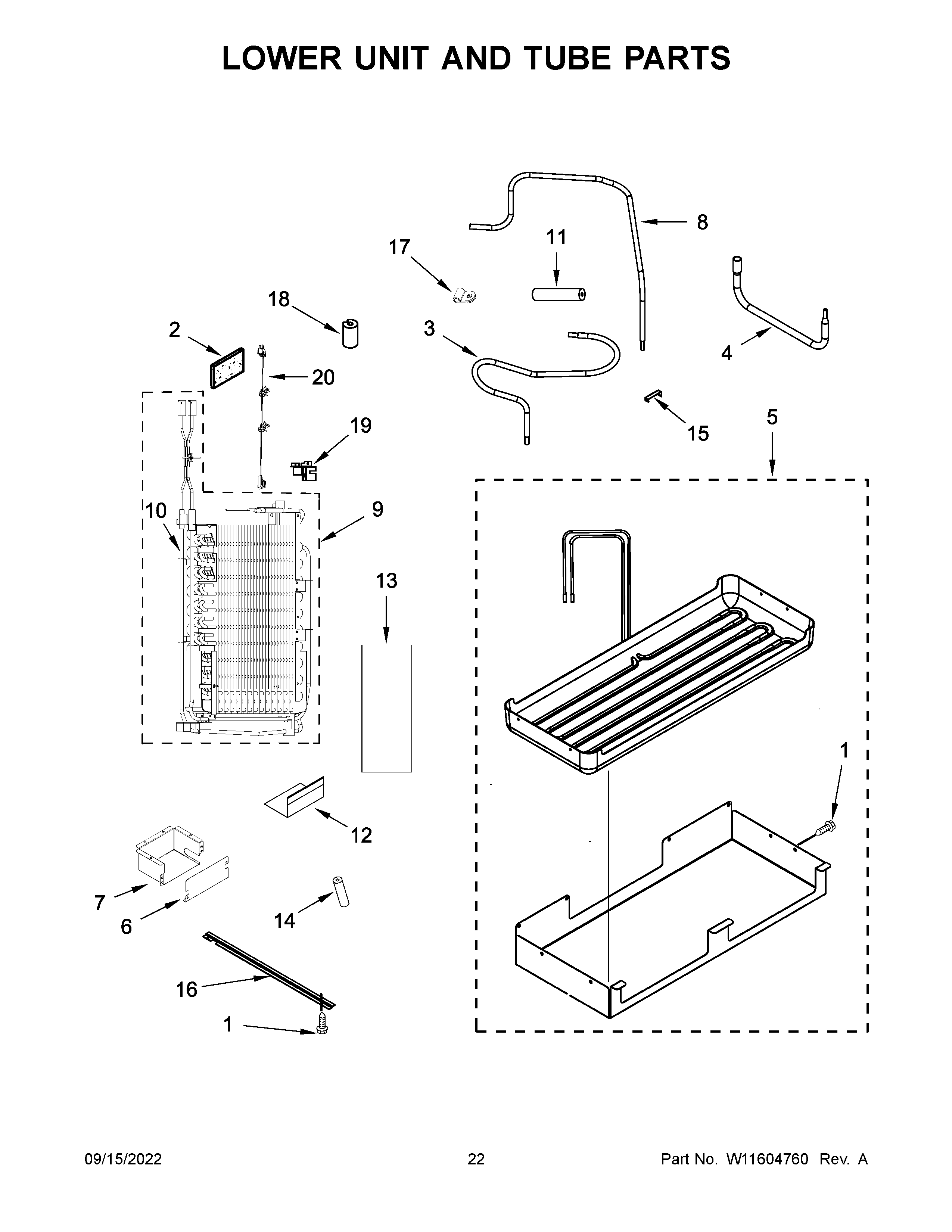

JBSFS42NMX00 12 – LOWER UNIT AND TUBE PARTS

JBSFS42NMX00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

JBSFS42NMX00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WP489069 Whirlpool Compactor Screw
2W11553819 Whirlpool Refrigerator Insulation
3TUBE
4TUBE
5ASSEMBLY, DRAIN PAN
6WIRE BOX COVER
7WPW10309012 Whirlpool Wire Cover
8TUBE, DISCHARGE
9BW11506620 Whirlpool Refrigerator Coupler
9W11629713 Whirlpool Evaporator
9AW11504450 Whirlpool Refrigerator Coupler
10HEATER
11SLEEVE
12W10321050 Whirlpool Refrigerator Shield
13GASKET, FC EVAPORATOR BYPASS
142215648 Whirlpool Refrigerator Dampener
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
17W10833902 Whirlpool Refrigerator Clamp
18W10852725 Whirlpool Refrigerator Grommet
19BRACKET, EVAPORATOR RIGHT TOP
20W11629268 Whirlpool Thermistor
