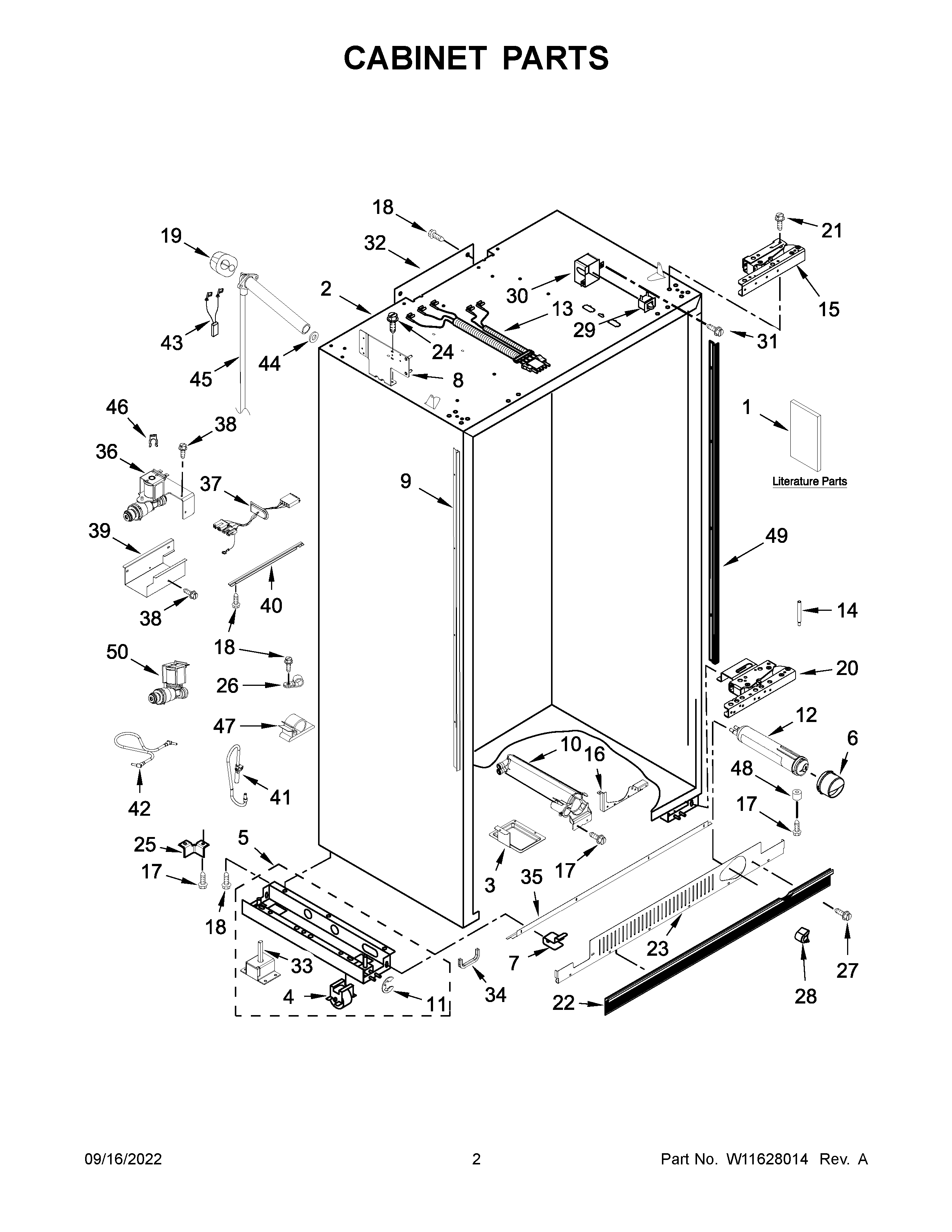

JBSFS48NMX00 02 – CABINET PARTS

JBSFS48NMX00 02 – CABINET PARTS

Written by

in

JBSFS48NMX00 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1CTECH SHEET
1USE AND CARE GUIDE
1BINSTALLATION INSTRUCTIONS
2CABINET (NOT A SERVICEABLE PART)
32318189 Whirlpool Refrigerator Drip Pan
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860229 Whirlpool Refrigerator Support
5AW10860448 Whirlpool Refrigerator Support
6W11238395 Whirlpool Refrigerator Filter Cap
7W10839844 Whirlpool Refrigerator Bracket
8W11042558 Whirlpool Refrigerator Bracket
8AW11042559 Whirlpool Refrigerator Bracket
9W10611999 Whirlpool Door Trim
10WPW10121140 Whirlpool Refrigerator Housing
112006841 Whirlpool Ring
12FILTER 3-SINGLE TEAL
13ASSEMBLY, LIGHT SWITCH WIRE
14W10234202 Whirlpool Refrigerator Hinge Pin
15AW11700299 Whirlpool Door Hinge
15W10691145 Whirlpool Refrigerator Door Hinge
16W10674648 Whirlpool Refrigerator Bracket
17WP489464 Whirlpool Refrigerator Screw
18WPL W10784922
19COVER, FILL TUBE
20W10691533 Whirlpool Refrigerator Door Hinge
20AW10691534 Whirlpool Refrigerator Door Hinge
21W11721628 Whirlpool Screw Assembly
22W10859915 Whirlpool Grille
23GRILLE-FRT
24WP489069 Whirlpool Compactor Screw
252006617 Whirlpool Refrigerator Bracket
26W11456069 Whirlpool Refrigerator Clamp
28WP2260503B Whirlpool Refrigerator Button
29SWITCH, LIGHT
30COVER, SWITCH (LEFT & RIGHT HAND)
31W11624204 Whirlpool Screw
322215612 Whirlpool Refrigerator Duct Cover
332005032 Whirlpool Refrigerator Leveler
342307584 Whirlpool Refrigerator Grommet
35W10740171 Whirlpool Refrigerator Grill Trim
36W11225845 Whirlpool Refrigerator Inlet Valve
37WPL W11479397
38WPW10141604 Whirlpool Screw
39W10619291 Whirlpool Refrigerator Shield
40Support, Valve
41WPL W10577944
42W11533506 Whirlpool Refrigerator Water Tube
43HEATER
44WP1106508 Whirlpool Refrigerator Gasket
45W11662302 Whirlpool Water Tube
46AW10782424 Whirlpool Refrigerator Ring
46W10782423 Whirlpool Refrigerator Ring
47CLIP
482005433 Whirlpool Refrigerator Spacer
49W10612000 Whirlpool Door Trim
50W11246413 Whirlpool Refrigerator Inlet Valve
